Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

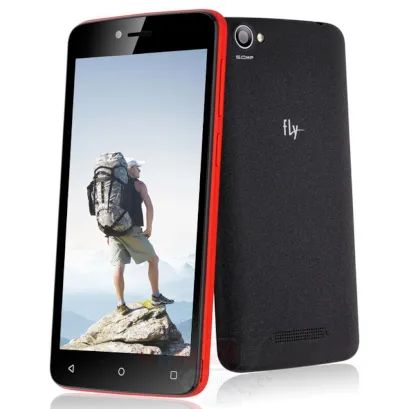

Disassembly of the mobile device Fly FS505 Nimbus 7 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Fly FS505 Nimbus 7, Step 1/1 How to disassemble Fly FS505 Nimbus 7, Step 1/2
Step 1

Open the back cover.

How to disassemble Fly FS505 Nimbus 7, Step 2/1 How to disassemble Fly FS505 Nimbus 7, Step 2/2
Step 2

Lift and remove the battery. The battery model of Fly FS505 Nimbus 7 is BL6424.

How to disassemble Fly FS505 Nimbus 7, Step 3/1 How to disassemble Fly FS505 Nimbus 7, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble Fly FS505 Nimbus 7, Step 4/1 How to disassemble Fly FS505 Nimbus 7, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble Fly FS505 Nimbus 7, Step 5/1 How to disassemble Fly FS505 Nimbus 7, Step 5/2 How to disassemble Fly FS505 Nimbus 7, Step 5/3
Step 5

Disconnect connectors on the daughterboard.

How to disassemble Fly FS505 Nimbus 7, Step 6/1 How to disassemble Fly FS505 Nimbus 7, Step 6/2
Step 6

Unsolder connectors on the daughterboard.

How to disassemble Fly FS505 Nimbus 7, Step 7/1 How to disassemble Fly FS505 Nimbus 7, Step 7/2
Step 7

Remove the daughterboard, also known as sub-board.

How to disassemble Fly FS505 Nimbus 7, Step 8/1 How to disassemble Fly FS505 Nimbus 7, Step 8/2
Step 8

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Fly FS505 Nimbus 7, Step 9/1 How to disassemble Fly FS505 Nimbus 7, Step 9/2
Step 9

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Fly FS505 Nimbus 7, Step 10/1 How to disassemble Fly FS505 Nimbus 7, Step 10/2 How to disassemble Fly FS505 Nimbus 7, Step 10/3
Step 10

Disconnect connectors on the PCB.

How to disassemble Fly FS505 Nimbus 7, Step 11/1 How to disassemble Fly FS505 Nimbus 7, Step 11/2
Step 11

Turn over the PCB.

How to disassemble Fly FS505 Nimbus 7, Step 12/1 How to disassemble Fly FS505 Nimbus 7, Step 12/2 How to disassemble Fly FS505 Nimbus 7, Step 12/3
Step 12

Disconnect connectors on the PCB and remove it.

How to disassemble Fly FS505 Nimbus 7, Step 13/1 How to disassemble Fly FS505 Nimbus 7, Step 13/2
Step 13

Disconnect the connector on PCB, and remove the front (selfie) camera.

Detailed disassembly instructions of Fly FS505 Nimbus 7 in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Fly FS505 Nimbus 7 released for markets in different countries.
