Recommended tools
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers

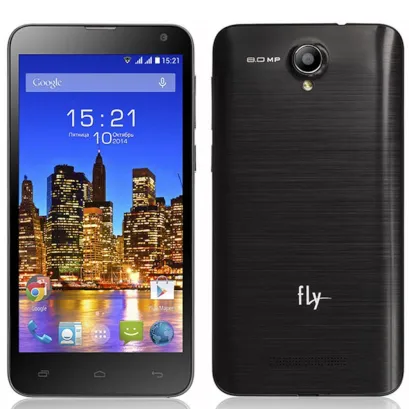

Disassembly/Repair of the mobile device Fly IQ4514 Quad EVO Tech 4 with each step description and the required set of tools.
4032
Views
1
Likes
—
Share
3
Questions
Step 1.
Open the back cover
Open the back cover.
Step 2.
Remove the battery
Remove the battery.
Step 3.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 11 bolts in the frame of the phone.
Step 4.
Open the mid-frame
Pry and remove the middle frame.
Step 5.
Remove the rear camera
Disconnect the connector on PCB and remove the main camera.
Step 6.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 2 bolts in the PCB.
Step 7.
Disconnect the connectors
Disconnect the connectors on the PCB.
Step 8.
Remove the motherboard
Remove the PCB.
Step 9.
In the display frame remained
Parts in the frame of the display module.
