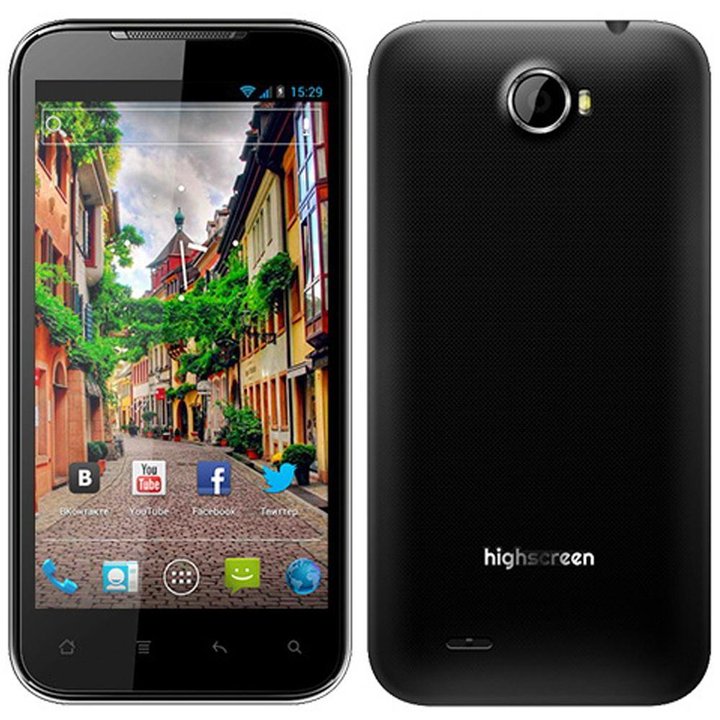

Highscreen Blast
Highscreen Blast
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Highscreen Blast with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Highscreen Blast, Step 1/1 How to disassemble Highscreen Blast, Step 1/2

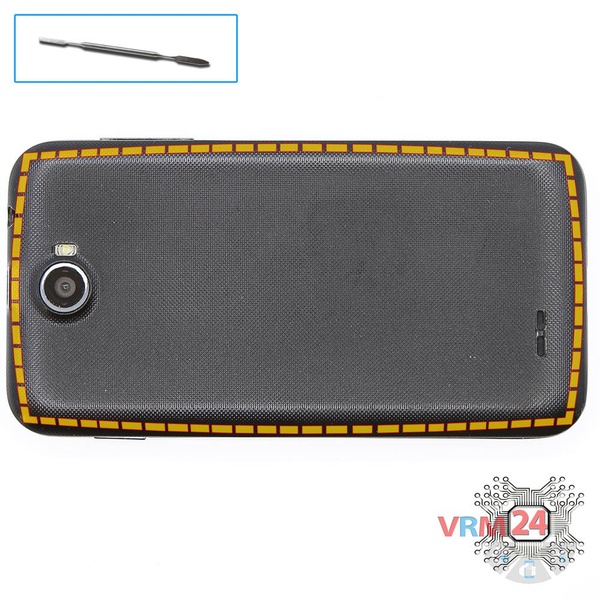

Step 1.

Open the back cover.

How to disassemble Highscreen Blast, Step 2/1 How to disassemble Highscreen Blast, Step 2/2

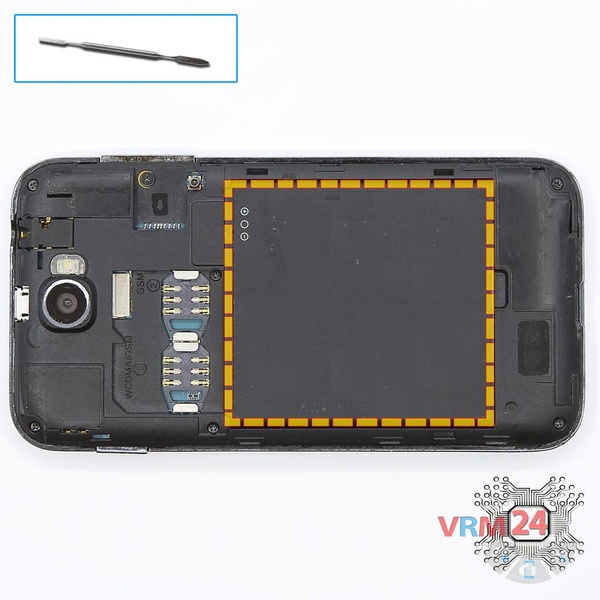

Step 2.

Lift and remove the battery.

How to disassemble Highscreen Blast, Step 3/1 How to disassemble Highscreen Blast, Step 3/2

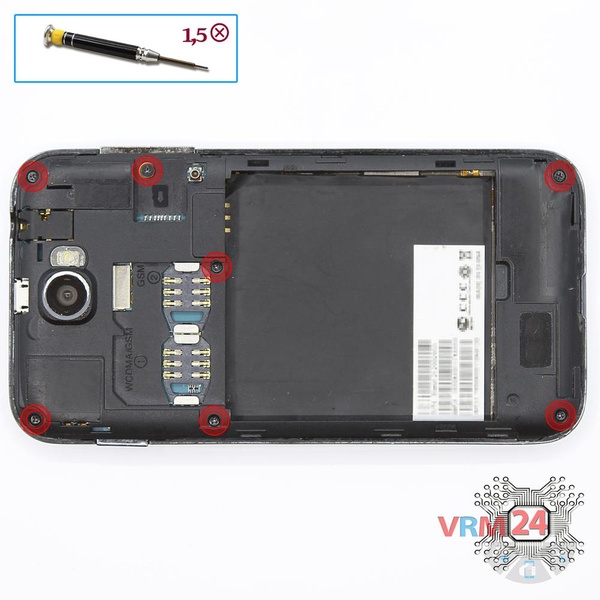

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Highscreen Blast, Step 4/1 How to disassemble Highscreen Blast, Step 4/2

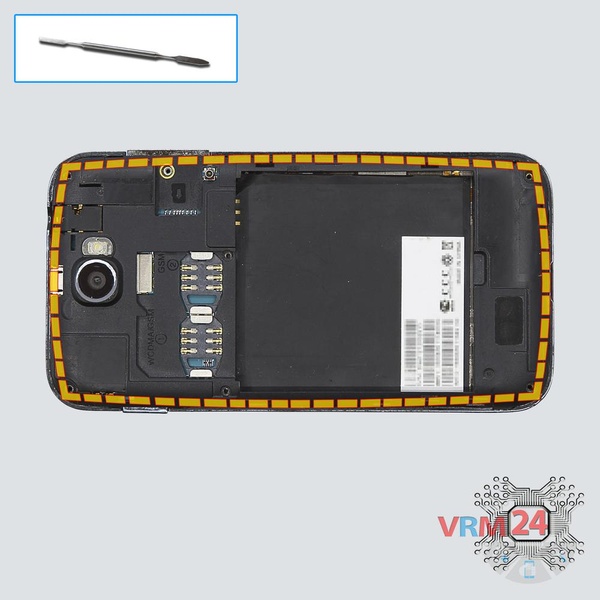

Step 4.

Pry & remove the middle frame and remove the keys of volume and power buttons.

How to disassemble Highscreen Blast, Step 5/1 How to disassemble Highscreen Blast, Step 5/2

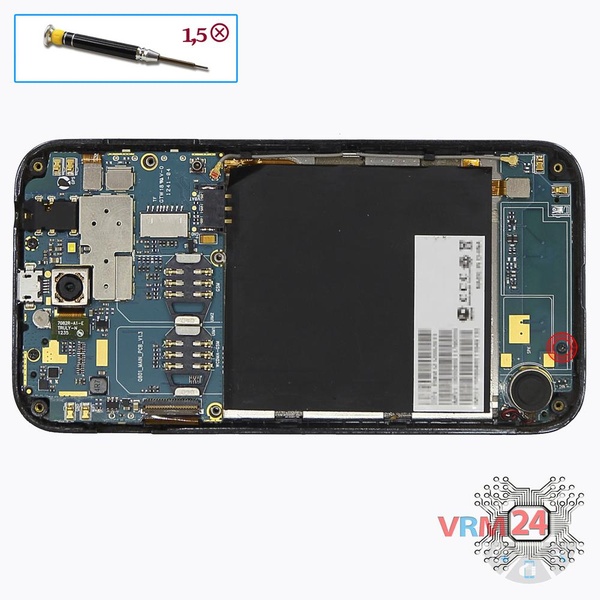

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Highscreen Blast, Step 6/1 How to disassemble Highscreen Blast, Step 6/2 How to disassemble Highscreen Blast, Step 6/3

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Highscreen Blast, Step 7/1 How to disassemble Highscreen Blast, Step 7/2

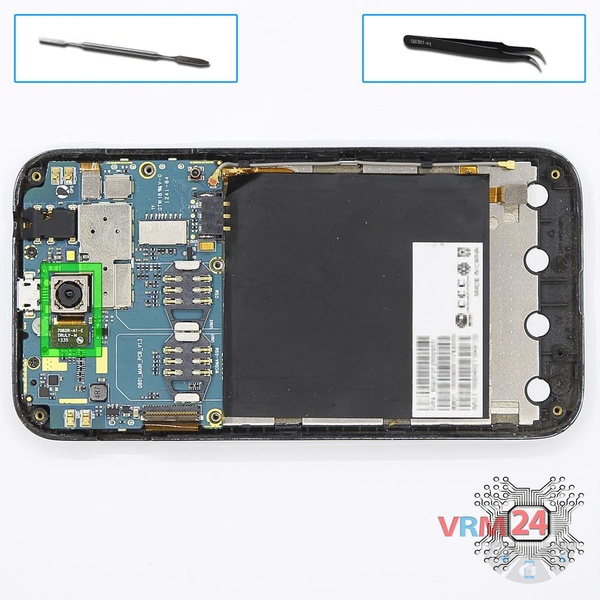

Step 7.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Highscreen Blast, Step 8/1 How to disassemble Highscreen Blast, Step 8/2

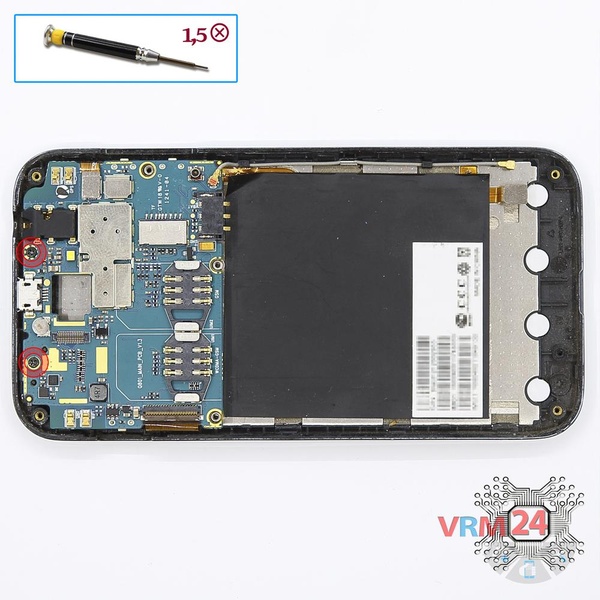

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Highscreen Blast, Step 9/1 How to disassemble Highscreen Blast, Step 9/2

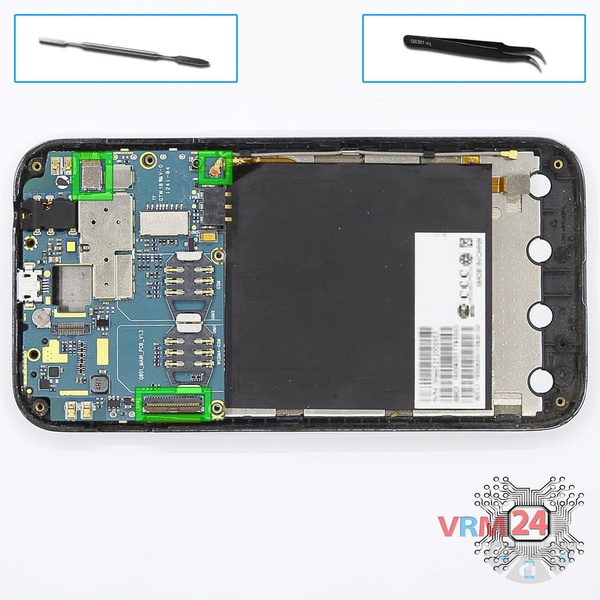

Step 9.

Disconnect connectors on the PCB.

How to disassemble Highscreen Blast, Step 10/1 How to disassemble Highscreen Blast, Step 10/2 How to disassemble Highscreen Blast, Step 10/3

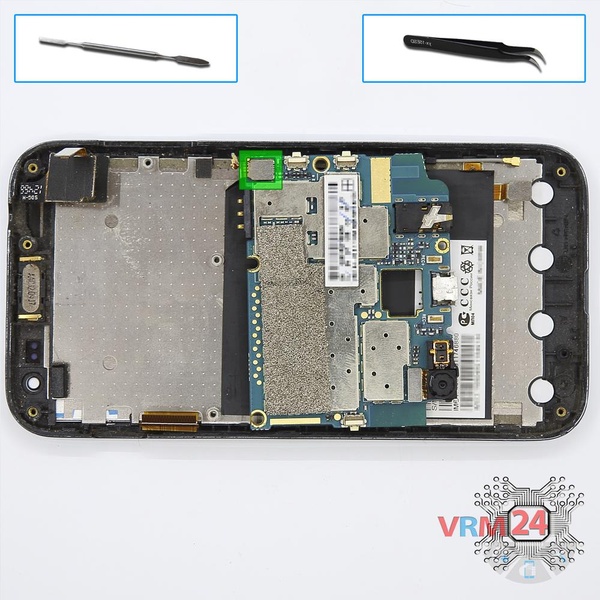

Step 10.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Highscreen Blast, Step 11/1

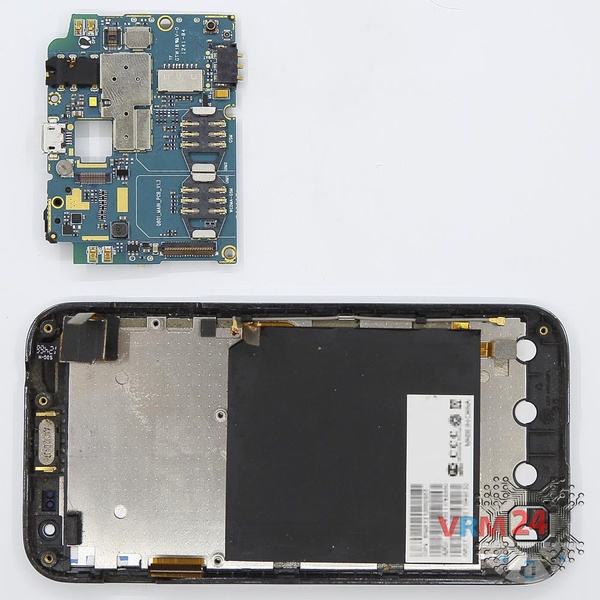

Step 11.

Parts in the frame of the display module & PCB.

Detailed disassembly instructions of Highscreen Blast in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Blast
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Highscreen Blast released for markets in different countries.
