Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

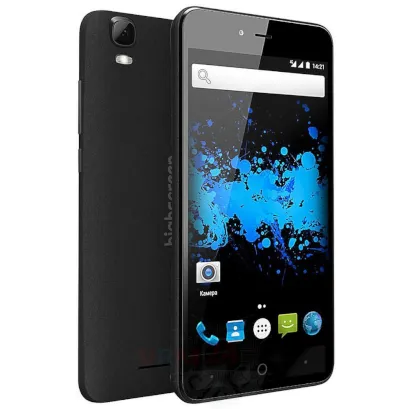

Disassembly/Repair of the mobile device Highscreen Easy L with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Highscreen Easy L, Step 1/1 How to disassemble Highscreen Easy L, Step 1/2

Step 1.

Open the back cover.


How to disassemble Highscreen Easy L, Step 2/1 How to disassemble Highscreen Easy L, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Highscreen Easy L, Step 3/1 How to disassemble Highscreen Easy L, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.


How to disassemble Highscreen Easy L, Step 4/1 How to disassemble Highscreen Easy L, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Highscreen Easy L, Step 5/1 How to disassemble Highscreen Easy L, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Highscreen Easy L, Step 6/1 How to disassemble Highscreen Easy L, Step 6/2

Step 6.

Pry and remove the buzzer (speaker) assembly.


How to disassemble Highscreen Easy L, Step 7/1 How to disassemble Highscreen Easy L, Step 7/2 How to disassemble Highscreen Easy L, Step 7/3

Step 7.

Disconnect connector on the PCB and remove the front (selfie) camera.


How to disassemble Highscreen Easy L, Step 8/1 How to disassemble Highscreen Easy L, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Highscreen Easy L, Step 9/1 How to disassemble Highscreen Easy L, Step 9/2

Step 9.

Disconnect connectors on the PCB.


How to disassemble Highscreen Easy L, Step 10/1 How to disassemble Highscreen Easy L, Step 10/2

Step 10.

Remove the PCB.


How to disassemble Highscreen Easy L, Step 11/1 How to disassemble Highscreen Easy L, Step 11/2 How to disassemble Highscreen Easy L, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Highscreen Easy L in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Highscreen Easy L released for markets in different countries.
