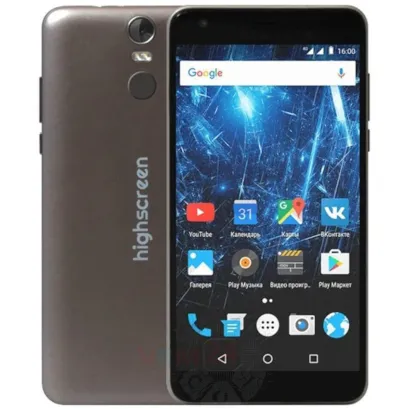

D isassembly/Repair of the mobile device Highscreen Easy XL Pro with each step description and the required set of tools.
Share
Share this page
Choose a platform or copy the direct link.
Vadim Popoff
Content manager / Author / Content specialist
Content specialist with over 10 years of experience in the technology industry.
Step 1.
Unscrew the screws
Using a screwdriver (Torx T2), unscrew 2 screws at the end of the phone.
Using the key tool, open the SIM and Micro SD cards tray and remove it.
âš Warning!
Do not push too hard this may cause damage.
Step 3.
Open the back cover
Open the back cover.
Step 4.
Remove the fingerprint sensor
Unstick the fingerprint sensor from the frame, carefully.
Step 5.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.
Remove the frame. Do it carefully to avoid damaging the fingerprint sensor.
Step 7.
Disconnect the battery connector
Disconnect the battery connector. The battery model of Highscreen Easy XL Pro is the same as the phone model name.
âš Warning!
We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.
Step 8.
Remove the fingerprint sensor
Pry up the connector and remove the fingerprint sensor.
Step 9.
Remove the battery
Remove the battery.
Step 10.
Remove the rear camera
Disconnect the connector on PCB, and remove the main camera.
Step 11.
Disconnect the connector
Disconnect the connector.
Step 12.
Unscrew one screw
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw in the PCB.
Step 13.
Turn over the PCB
Turn the PCB over.
Step 14.
Remove the motherboard
Disconnect connectors on the PCB and remove it.
Step 15.
Remove the front camera
Disconnect the connector on PCB, and remove the front (selfie) camera.
Step 16.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 screws.
Step 17.
Remove the loudspeaker
Pry the buzzer (loudspeaker) assembly.
âš Warning!
The loudspeaker connects to the daughterboard with wires.
Step 18.
Remove the coaxial cable
Disconnect the coaxial cable connector.
Step 19.
Remove the vibration motor
Unstick a vibration motor.
Step 20.
Remove the sub-board
Peel back the inter-board cable and remove the daughterboard with an inter-board cable and a loudspeaker.
Step 21.
In the display frame remained
Parts are in the frame of the display module.
