Disassembly of the mobile device Highscreen Fest Pro with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Highscreen Fest Pro, Step 1/1 How to disassemble Highscreen Fest Pro, Step 1/2
Step 1

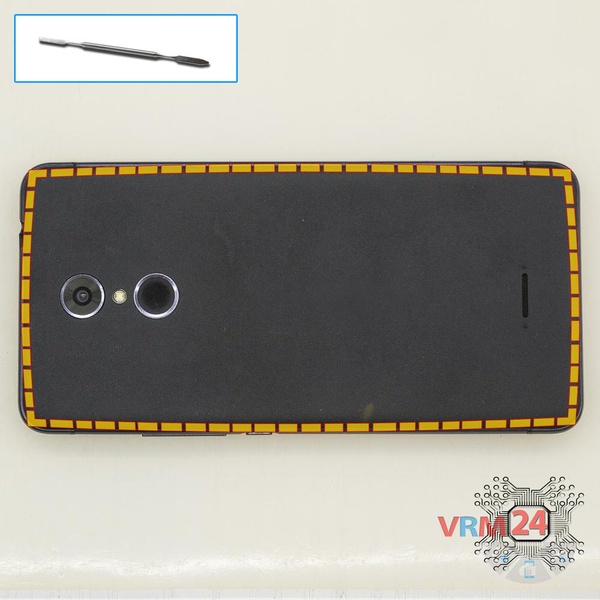

Open the back cover.

How to disassemble Highscreen Fest Pro, Step 2/1 How to disassemble Highscreen Fest Pro, Step 2/2
Step 2

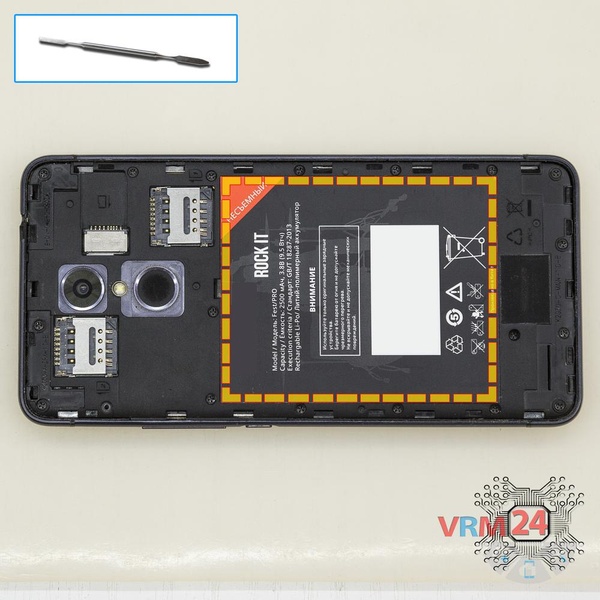

Peel back the protective layer.

How to disassemble Highscreen Fest Pro, Step 3/1 How to disassemble Highscreen Fest Pro, Step 3/2
Step 3

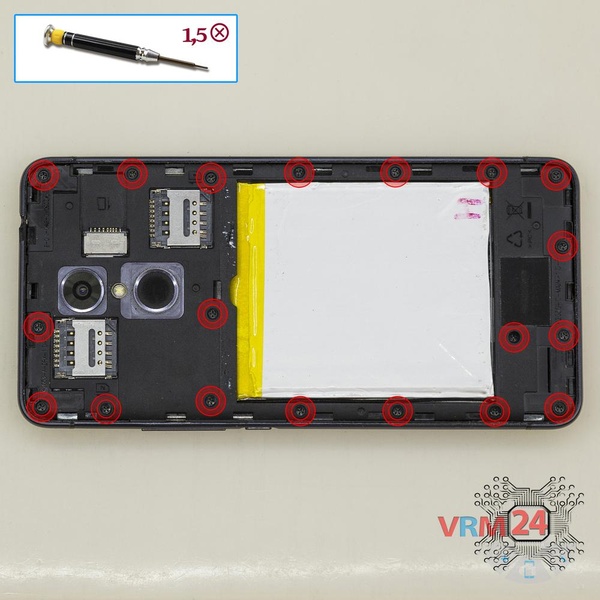

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 19 bolts in the frame of the phone.

How to disassemble Highscreen Fest Pro, Step 4/1 How to disassemble Highscreen Fest Pro, Step 4/2
Step 4

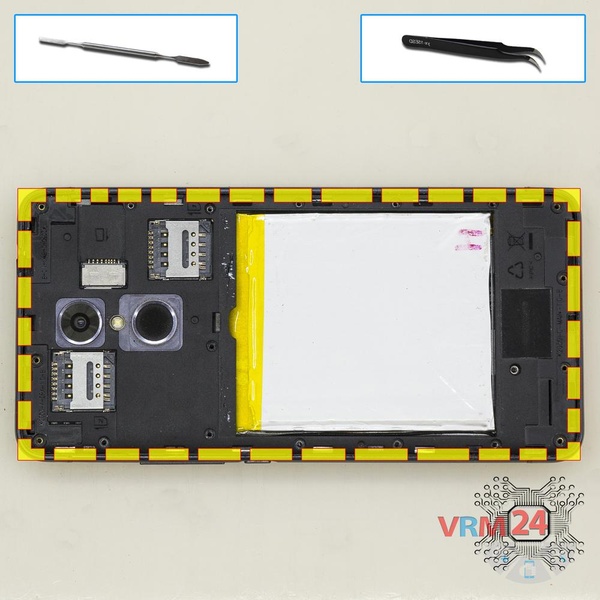

Pry and remove the middle frame.

How to disassemble Highscreen Fest Pro, Step 5/1
Step 5

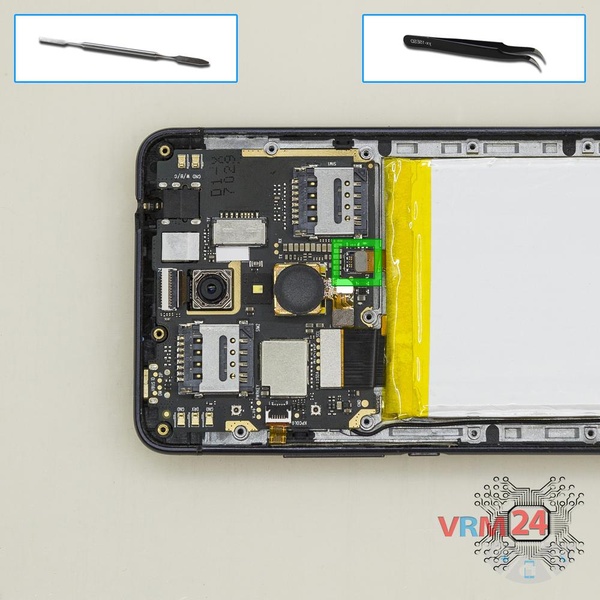

Disconnect the battery connector.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Highscreen Fest Pro, Step 6/1 How to disassemble Highscreen Fest Pro, Step 6/2
Step 6

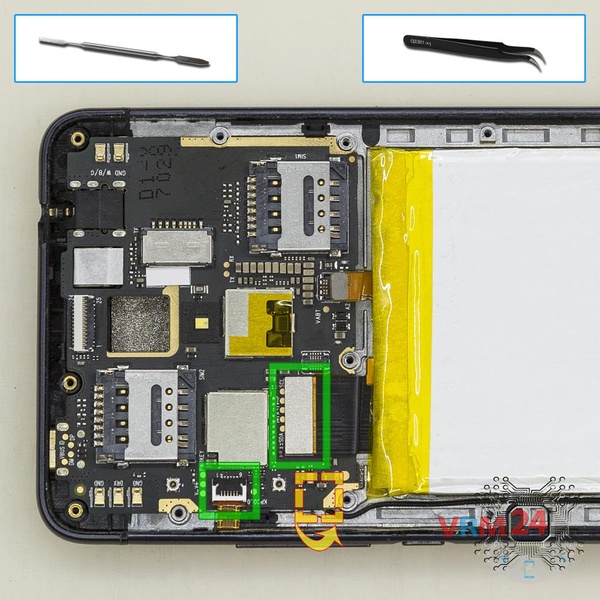

Disconnect connectors on the PCB.

How to disassemble Highscreen Fest Pro, Step 7/1 How to disassemble Highscreen Fest Pro, Step 7/2
Step 7

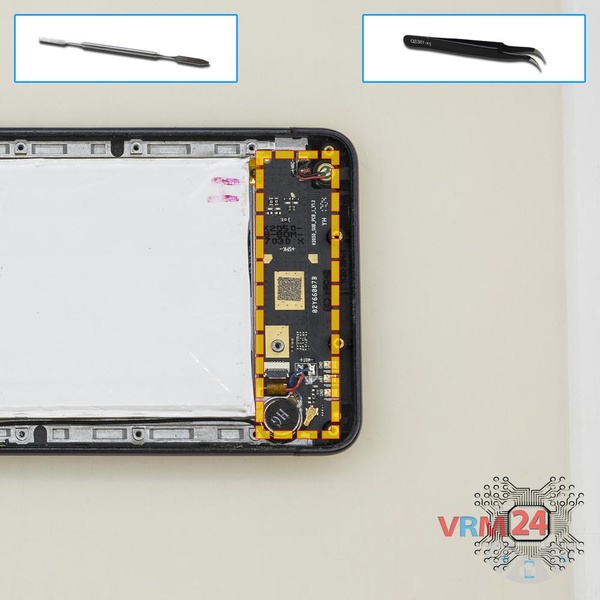

Remove the lower PCB.

How to disassemble Highscreen Fest Pro, Step 8/1 How to disassemble Highscreen Fest Pro, Step 8/2 How to disassemble Highscreen Fest Pro, Step 8/3
Step 8

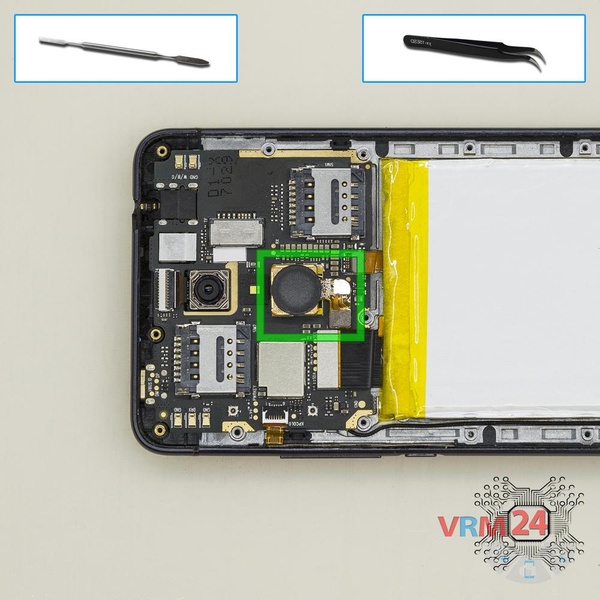

Disconnect connector on the PCB and remove the fingerprint sensor.

How to disassemble Highscreen Fest Pro, Step 9/1 How to disassemble Highscreen Fest Pro, Step 9/2
Step 9

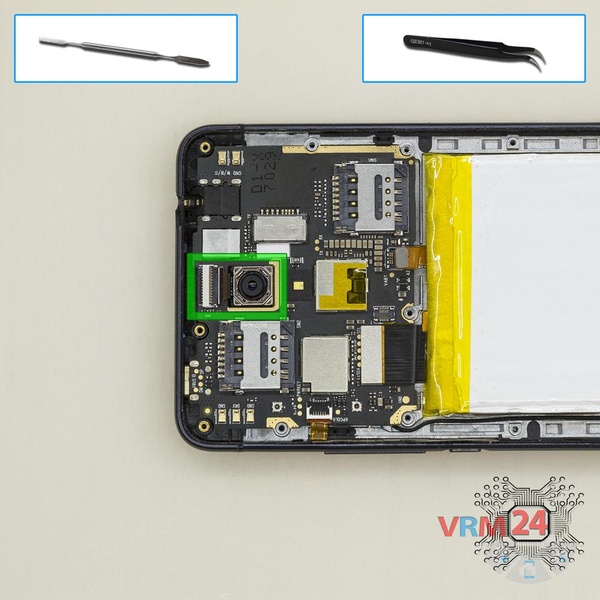

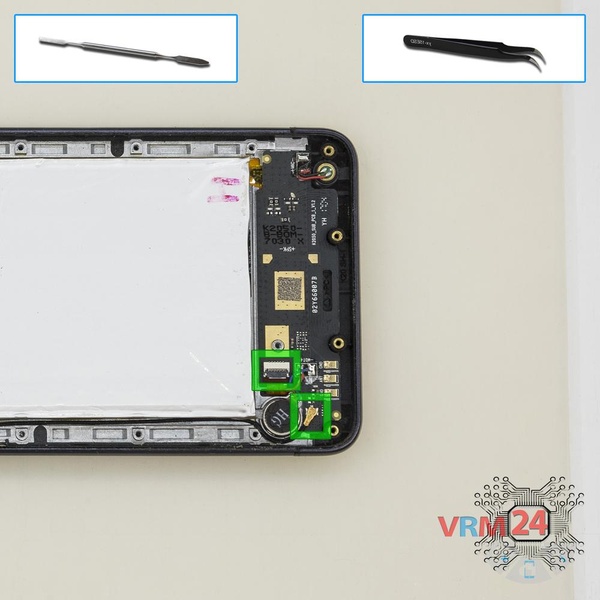

Disconnect connector on the PCB and remove the main camera.

How to disassemble Highscreen Fest Pro, Step 10/1 How to disassemble Highscreen Fest Pro, Step 10/2
Step 10

Disconnect connectors on the PCB.

Warning!

One connector locates on the inside.

How to disassemble Highscreen Fest Pro, Step 11/1 How to disassemble Highscreen Fest Pro, Step 11/2
Step 11

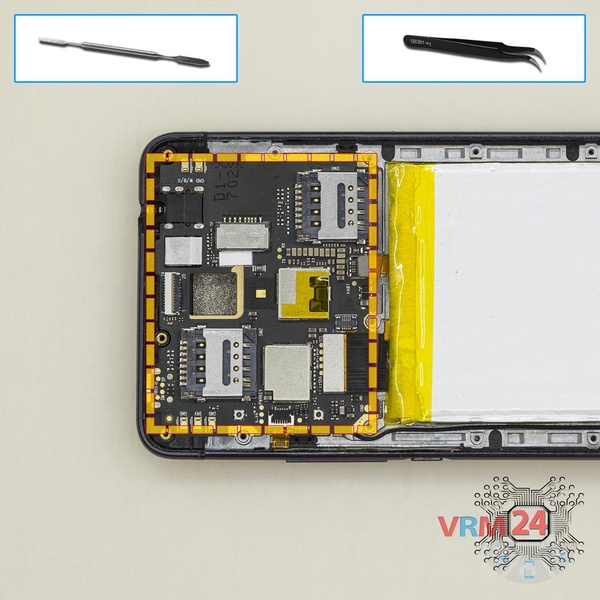

Remove the PCB.

How to disassemble Highscreen Fest Pro, Step 12/1 How to disassemble Highscreen Fest Pro, Step 12/2 How to disassemble Highscreen Fest Pro, Step 12/3
Step 12

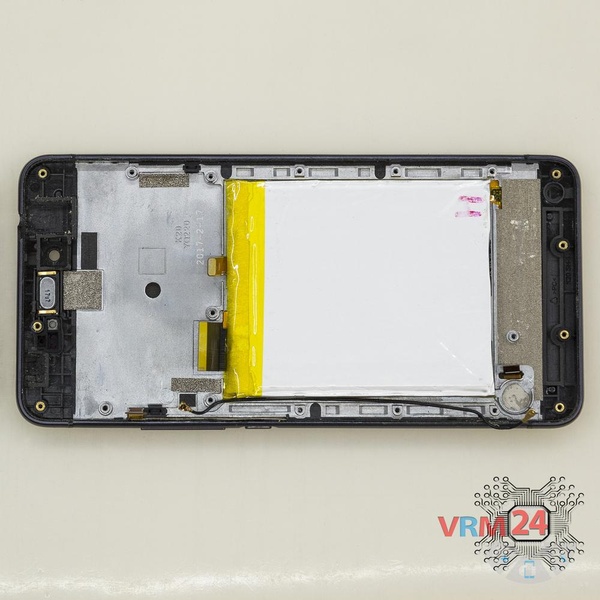

Parts are in the frame of the display module.


Disassembling\Repair has easy complexity and takes about minutes in time.
Our manual is suitable for all models Highscreen Fest Pro released for markets in different countries.
