Highscreen ICE 2
Highscreen ICE 2
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Highscreen ICE 2 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Highscreen ICE 2, Step 1/1 How to disassemble Highscreen ICE 2, Step 1/2

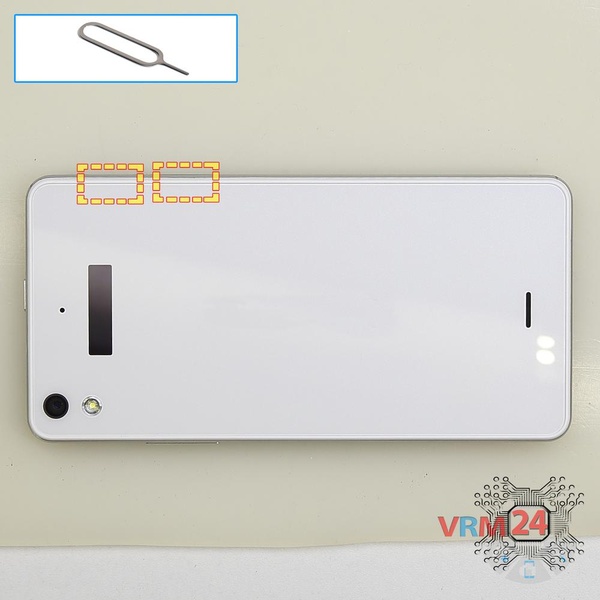

Step 1.

Using the key tool, open the SIM card and MMC card trays and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Highscreen ICE 2, Step 2/1 How to disassemble Highscreen ICE 2, Step 2/2

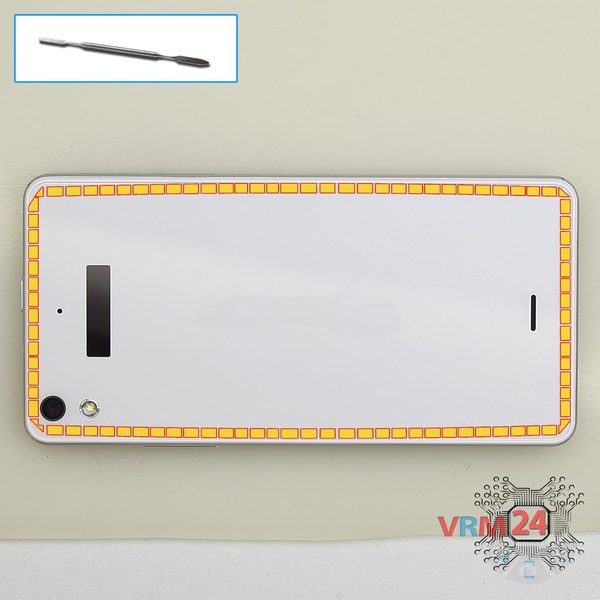

Step 2.

Open the back cover.

How to disassemble Highscreen ICE 2, Step 3/1 How to disassemble Highscreen ICE 2, Step 3/2

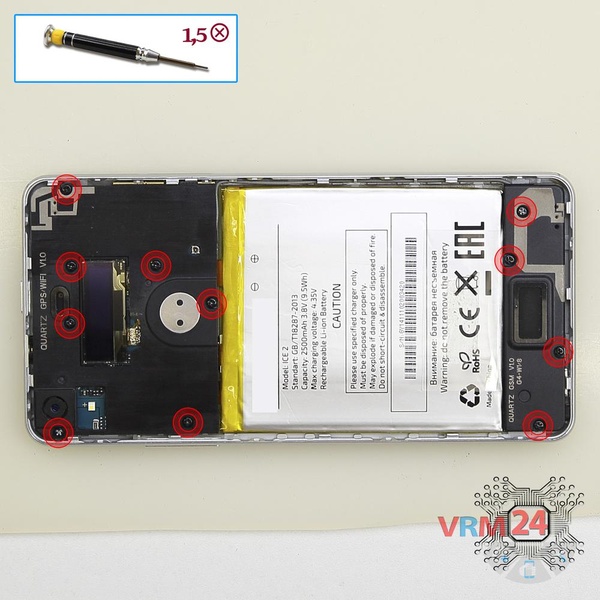

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Highscreen ICE 2, Step 4/1 How to disassemble Highscreen ICE 2, Step 4/2

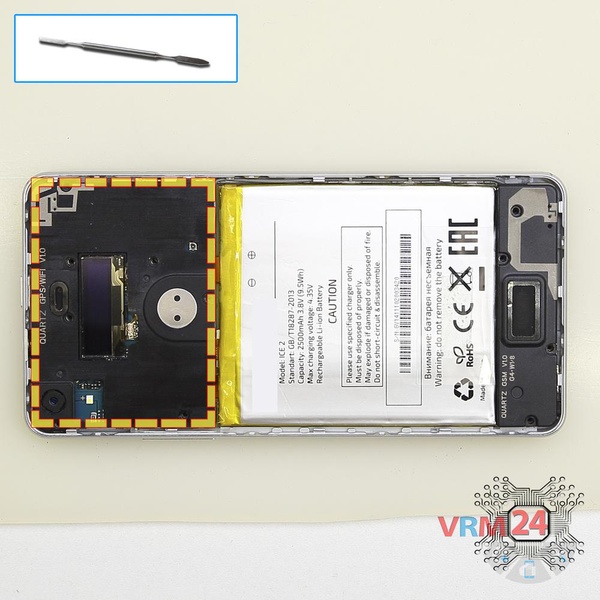

Step 4.

Pry and remove the upper cover.

How to disassemble Highscreen ICE 2, Step 5/1 How to disassemble Highscreen ICE 2, Step 5/2

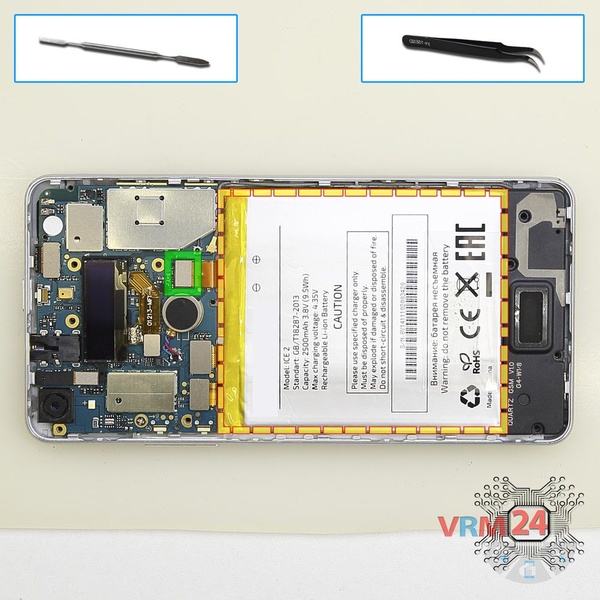

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Highscreen ICE 2, Step 6/1 How to disassemble Highscreen ICE 2, Step 6/2 How to disassemble Highscreen ICE 2, Step 6/3

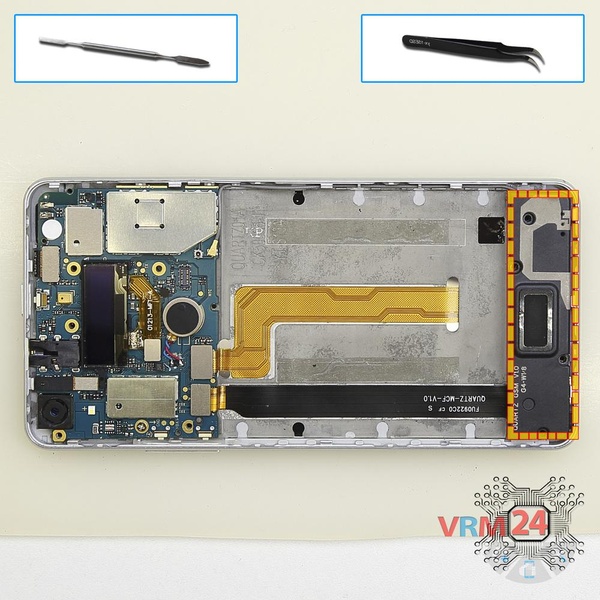

Step 6.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Highscreen ICE 2, Step 7/1 How to disassemble Highscreen ICE 2, Step 7/2 How to disassemble Highscreen ICE 2, Step 7/3 How to disassemble Highscreen ICE 2, Step 7/4 How to disassemble Highscreen ICE 2, Step 7/5 How to disassemble Highscreen ICE 2, Step 7/6

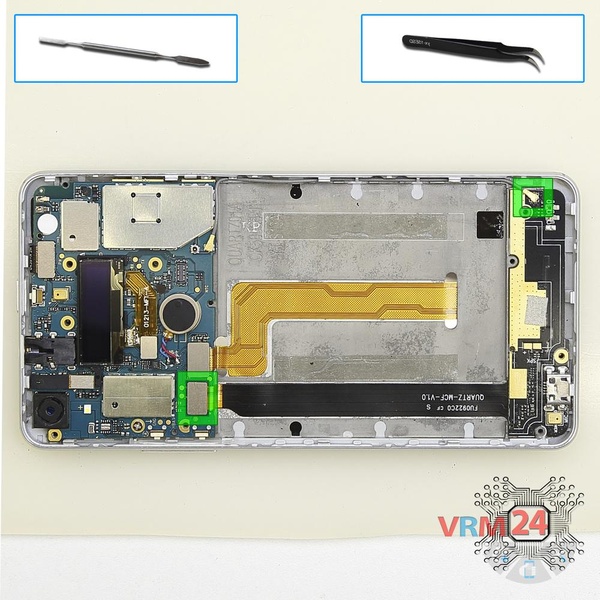

Step 7.

Disconnect connector of the inter-board cable on the main PCB and connector of the coaxial cable on the lower board and remove the lower PCB.

How to disassemble Highscreen ICE 2, Step 8/1 How to disassemble Highscreen ICE 2, Step 8/2

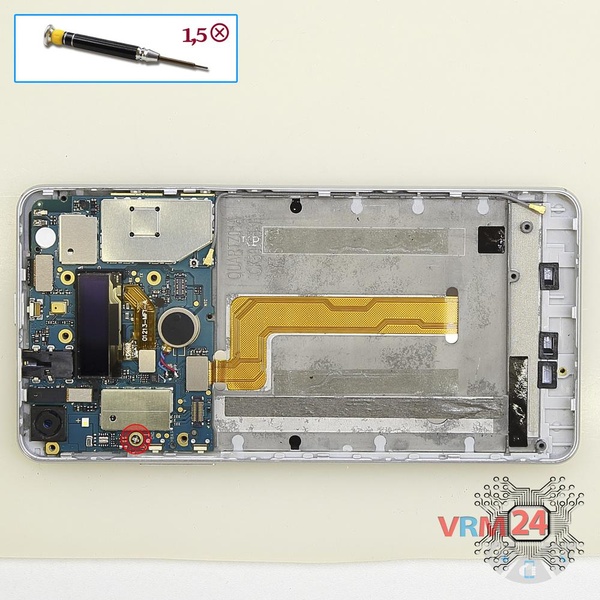

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Highscreen ICE 2, Step 9/1 How to disassemble Highscreen ICE 2, Step 9/2 How to disassemble Highscreen ICE 2, Step 9/3 How to disassemble Highscreen ICE 2, Step 9/4 How to disassemble Highscreen ICE 2, Step 9/5 How to disassemble Highscreen ICE 2, Step 9/6

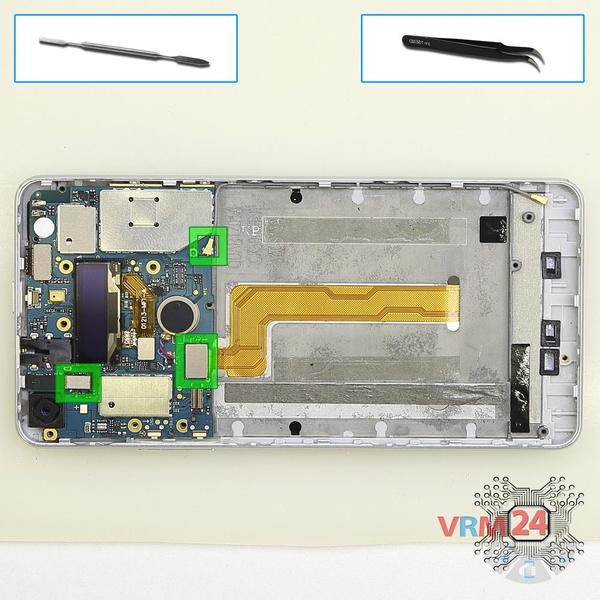

Step 9.

Disconnect connectors on the PCB.

How to disassemble Highscreen ICE 2, Step 10/1 How to disassemble Highscreen ICE 2, Step 10/2

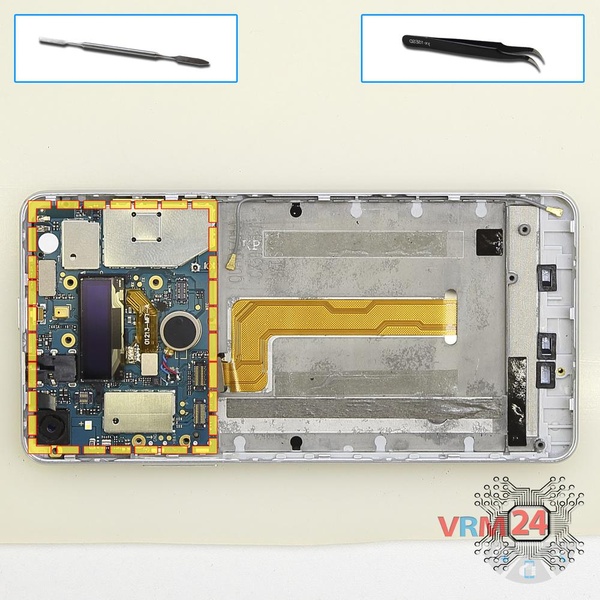

Step 10.

Remove the PCB.

How to disassemble Highscreen ICE 2, Step 11/1 How to disassemble Highscreen ICE 2, Step 11/2 How to disassemble Highscreen ICE 2, Step 11/3

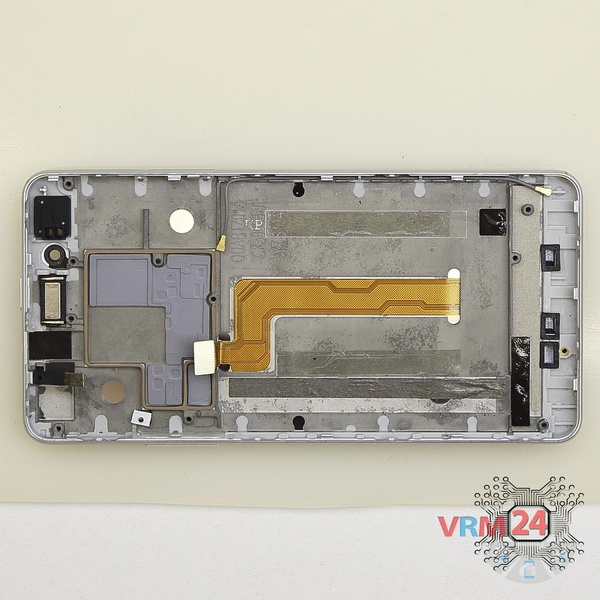

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Highscreen ICE 2 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen ICE 2
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Highscreen ICE 2 released for markets in different countries.
