Disassembly/Repair of the mobile device Highscreen Omega Prime XL with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Highscreen Omega Prime XL, Step 1/1 How to disassemble Highscreen Omega Prime XL, Step 1/2

Step 1.

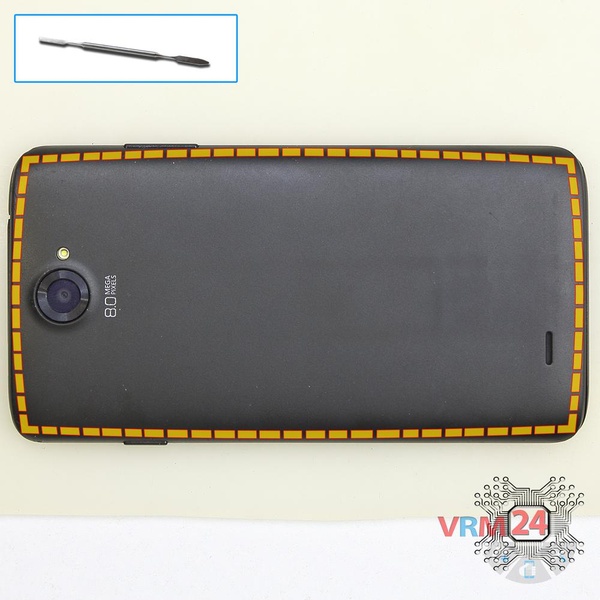

Open the back cover.

How to disassemble Highscreen Omega Prime XL, Step 2/1

Step 2.

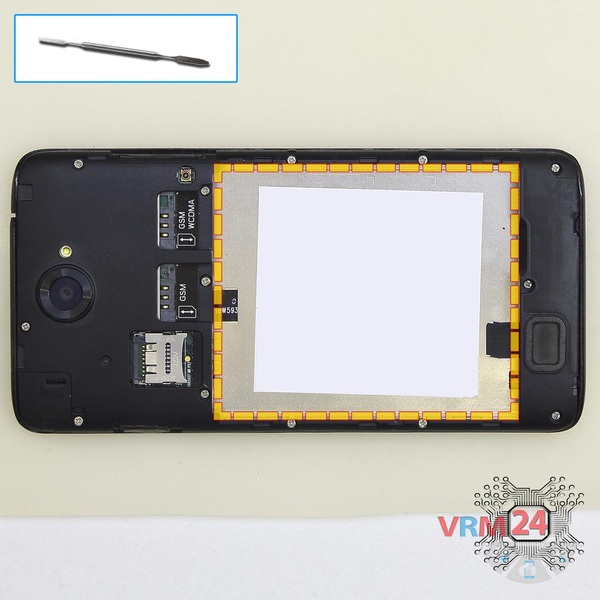

Lift and remove the battery.

How to disassemble Highscreen Omega Prime XL, Step 3/1 How to disassemble Highscreen Omega Prime XL, Step 3/2

Step 3.

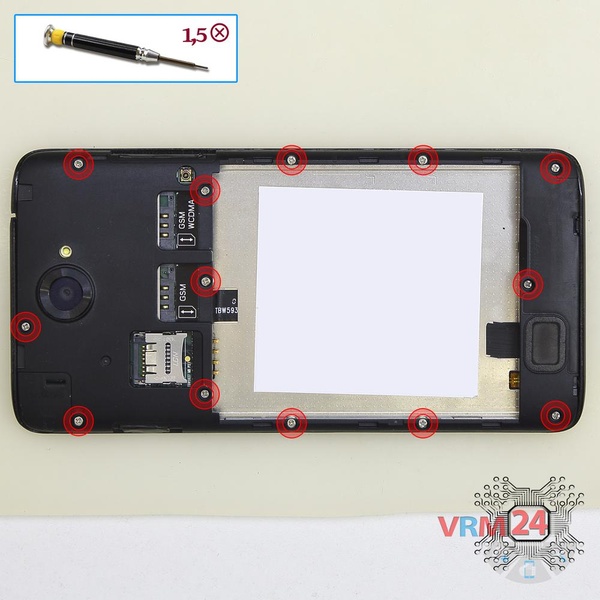

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble Highscreen Omega Prime XL, Step 4/1 How to disassemble Highscreen Omega Prime XL, Step 4/2

Step 4.

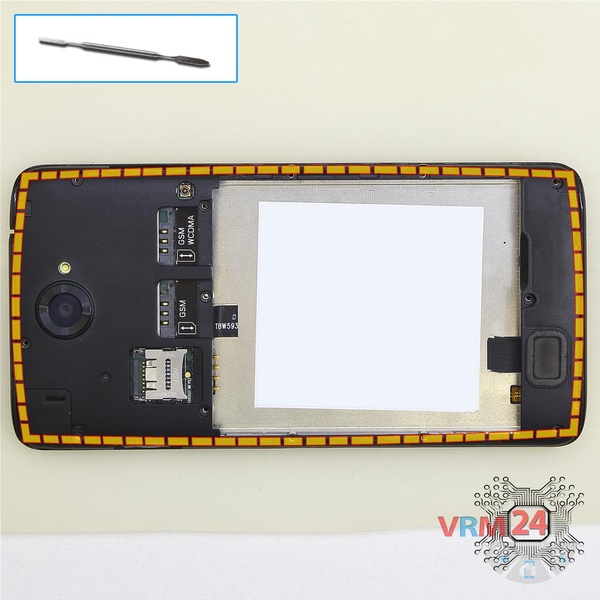

Pry and remove the middle frame.

How to disassemble Highscreen Omega Prime XL, Step 5/1 How to disassemble Highscreen Omega Prime XL, Step 5/2

Step 5.

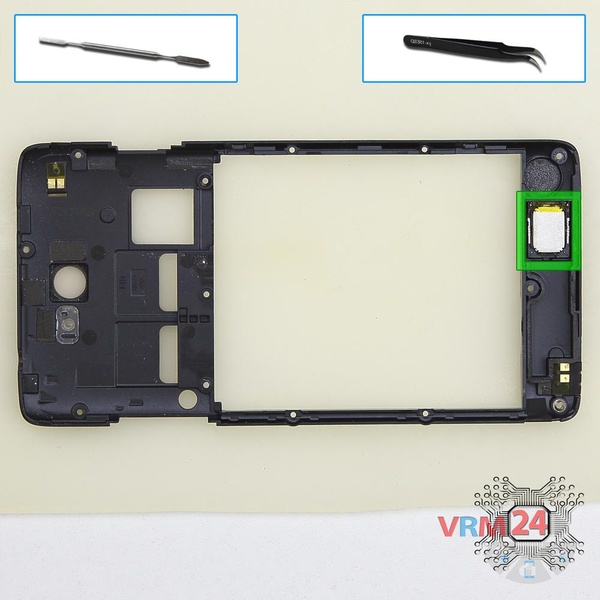

Pry and remove the buzzer (speaker) in the middle frame.

How to disassemble Highscreen Omega Prime XL, Step 6/1 How to disassemble Highscreen Omega Prime XL, Step 6/2

Step 6.

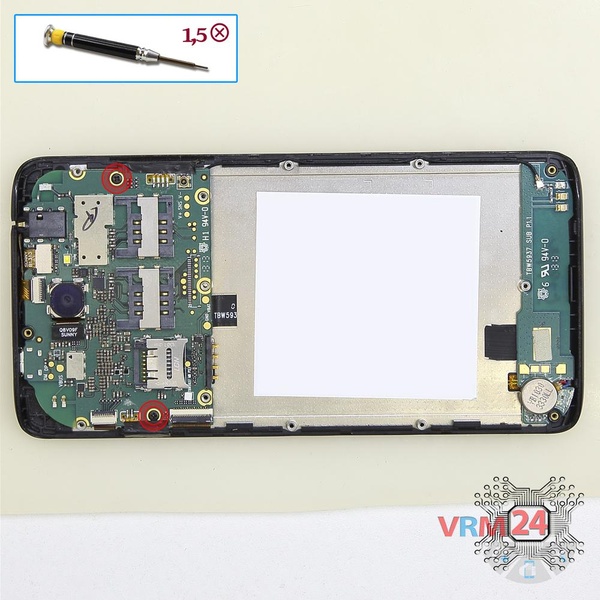

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Highscreen Omega Prime XL, Step 7/1 How to disassemble Highscreen Omega Prime XL, Step 7/2 How to disassemble Highscreen Omega Prime XL, Step 7/3

Step 7.

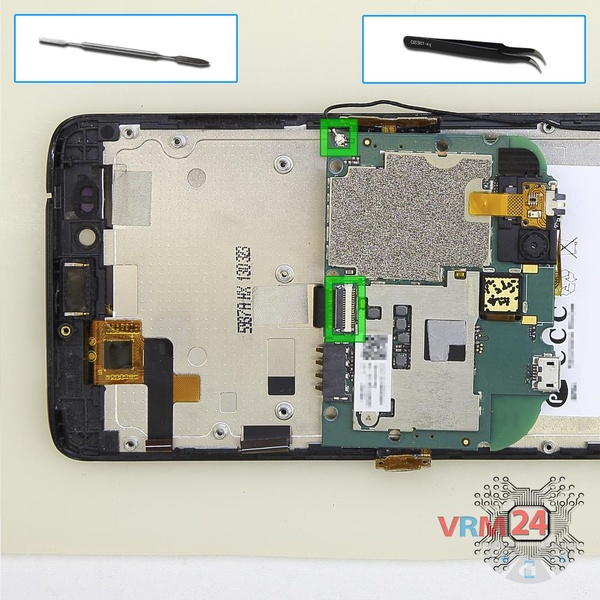

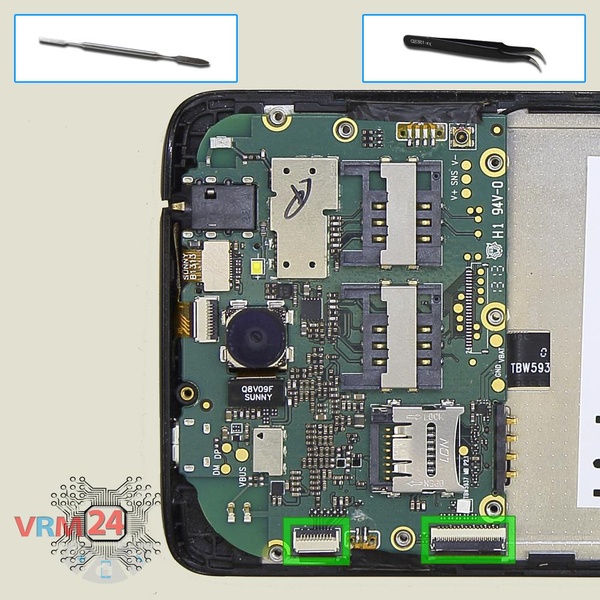

Disconnect connectors on the PCB.

How to disassemble Highscreen Omega Prime XL, Step 8/1 How to disassemble Highscreen Omega Prime XL, Step 8/2 How to disassemble Highscreen Omega Prime XL, Step 8/3

Step 8.

Overturn the board, disconnect the connectors and remove the board.

How to disassemble Highscreen Omega Prime XL, Step 9/1 How to disassemble Highscreen Omega Prime XL, Step 9/2

Step 9.

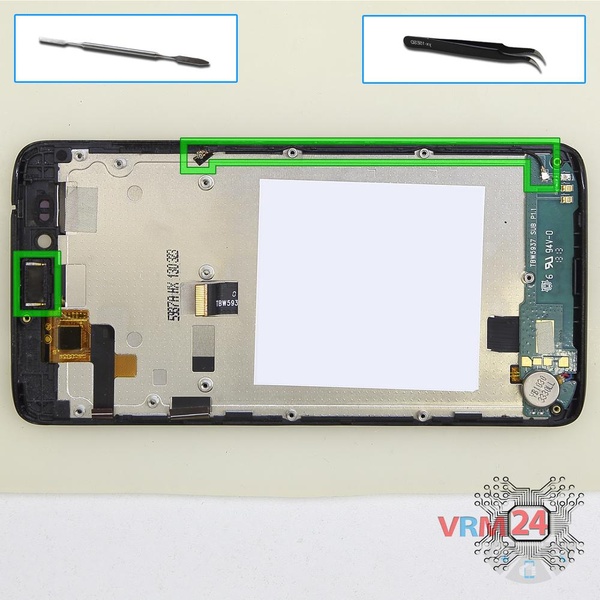

Pry and remove the earpiece (speaker) and the coaxial cable.

How to disassemble Highscreen Omega Prime XL, Step 10/1 How to disassemble Highscreen Omega Prime XL, Step 10/2 How to disassemble Highscreen Omega Prime XL, Step 10/3

Step 10.

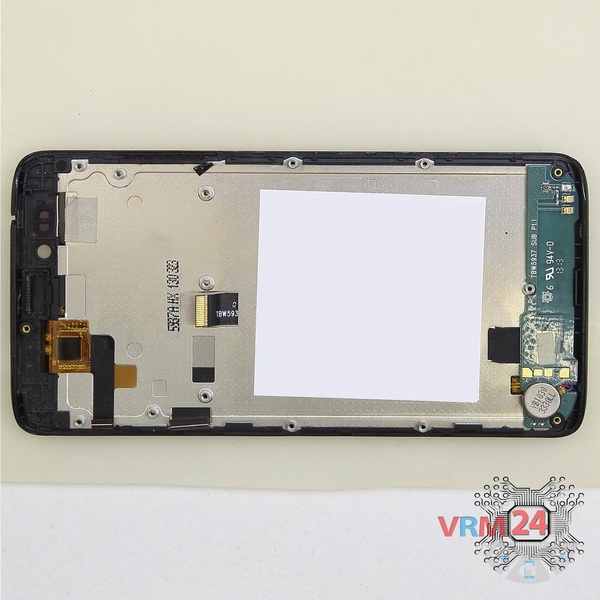

Parts in the frame of the display module.

Detailed disassembly instructions of Highscreen Omega Prime XL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Omega Prime XL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Highscreen Omega Prime XL released for markets in different countries.
