Recommended tools
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers

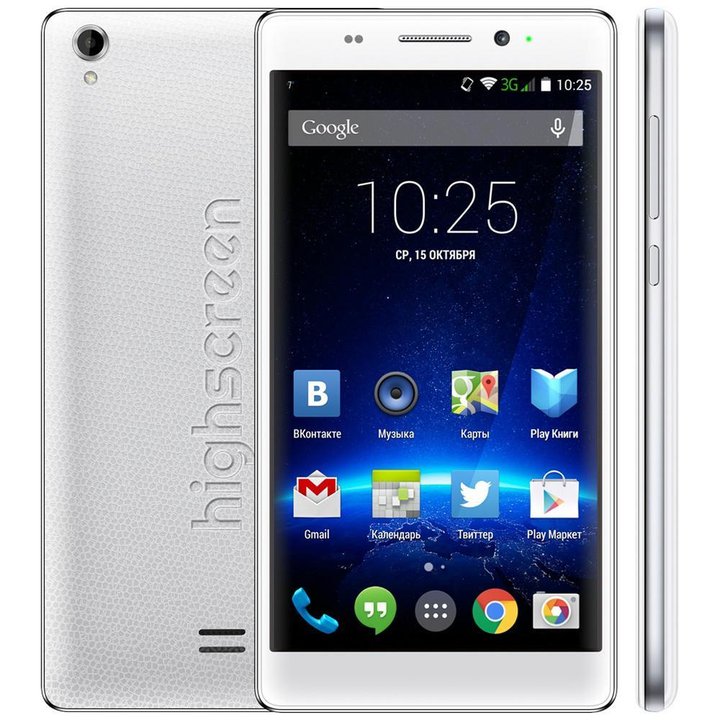

Disassembly/Repair of the mobile device Highscreen Spade with each step description and the required set of tools.
4144
Views
0
Likes
—
Share
4
Questions
Step 1.
Open the back cover

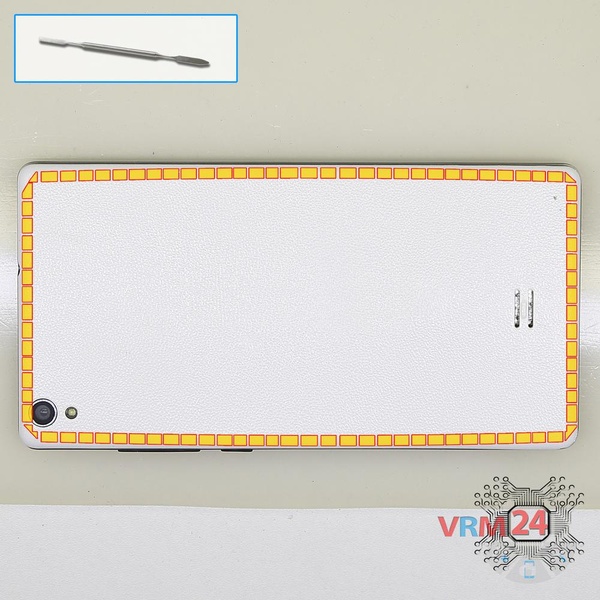

Open the back cover.
Step 2.

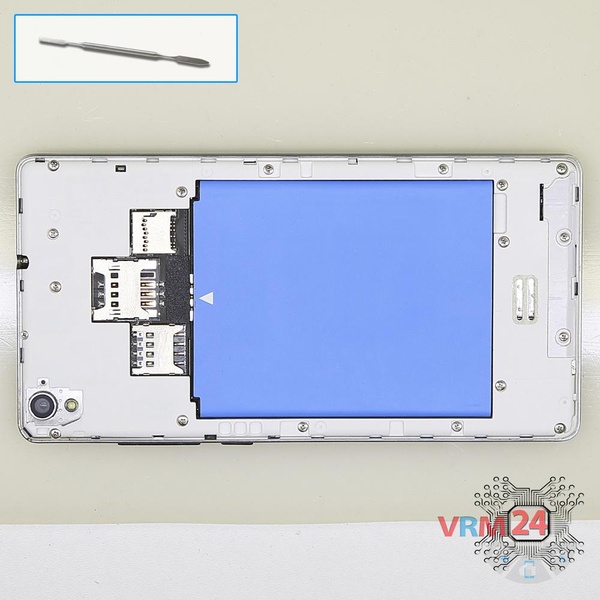

Remove the battery
Lift and remove the battery.
Step 3.
Unscrew the screws

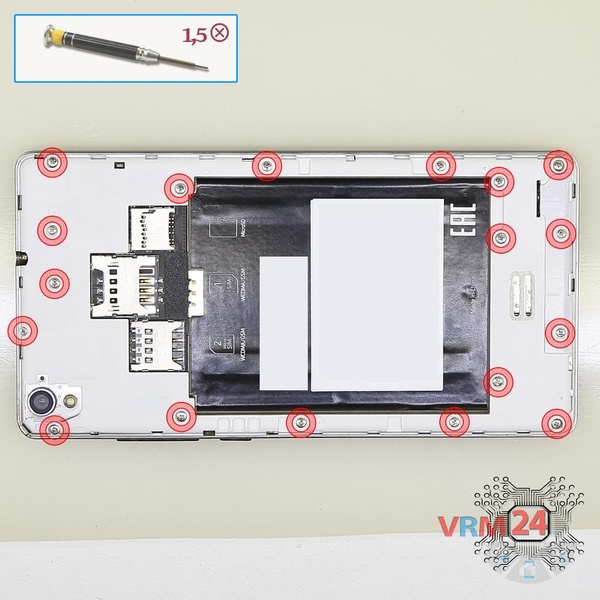

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.
Step 4.
Open the mid-frame

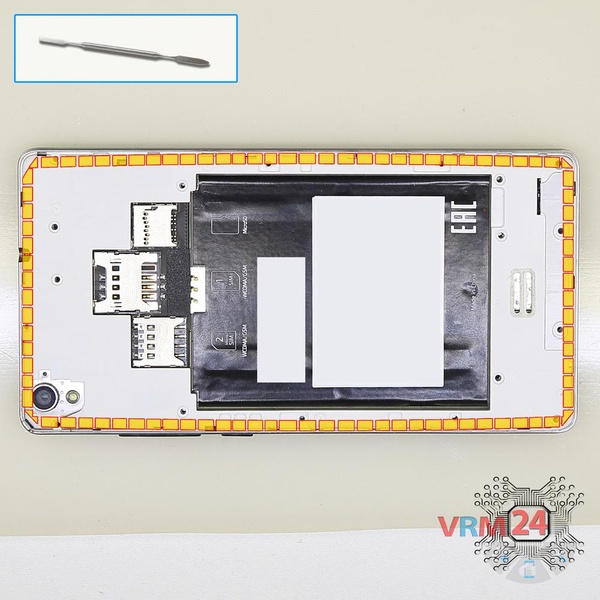

Pry and remove the middle frame.
Step 5.
Unscrew one screw

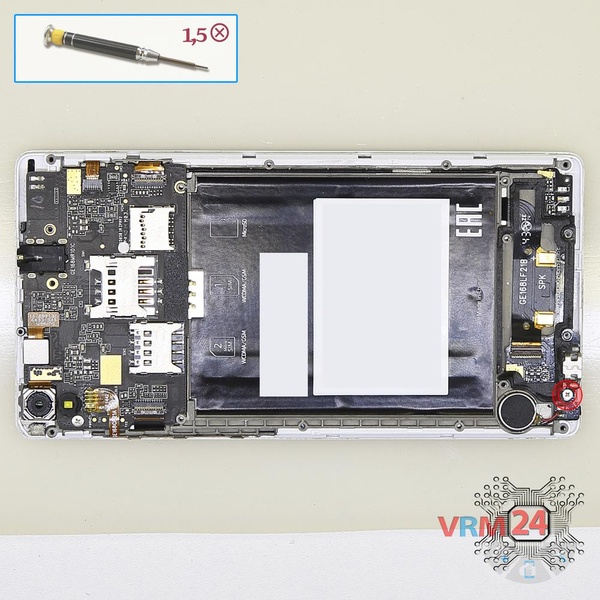

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.
Step 6.

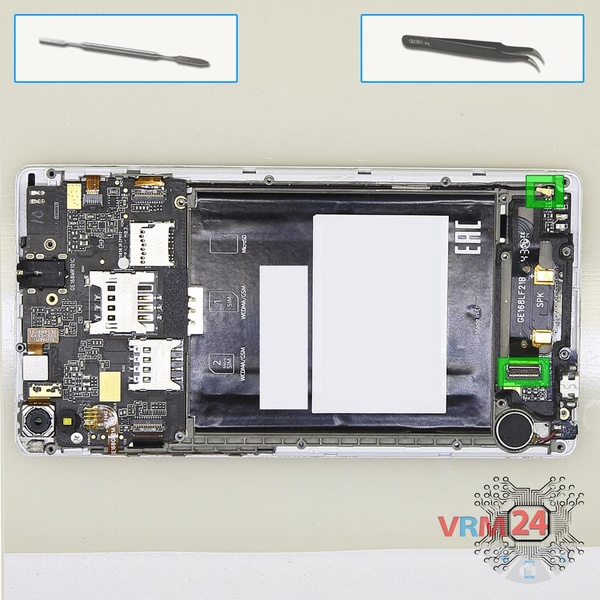

Remove the sub-board
Disconnect connectors on the lower PCB and remove it.
Step 7.
Remove the cameras

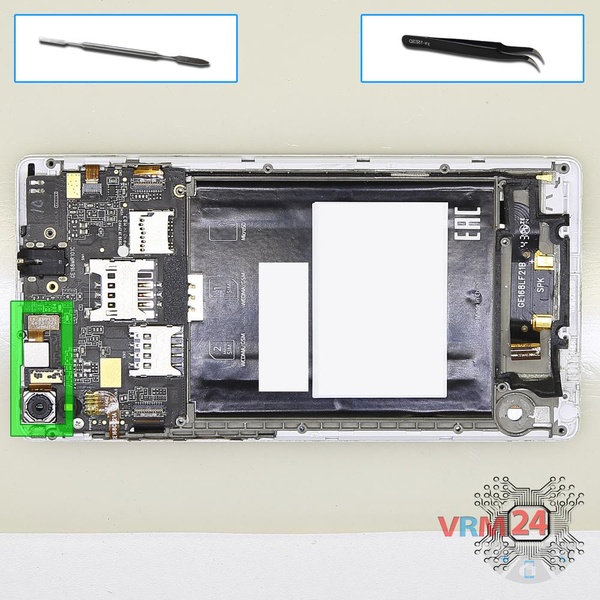

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.
Step 8.
Unscrew one screw

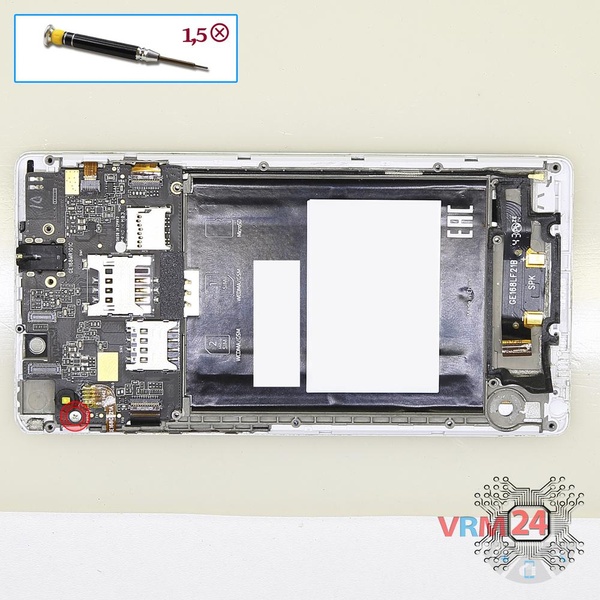

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.
Step 9.

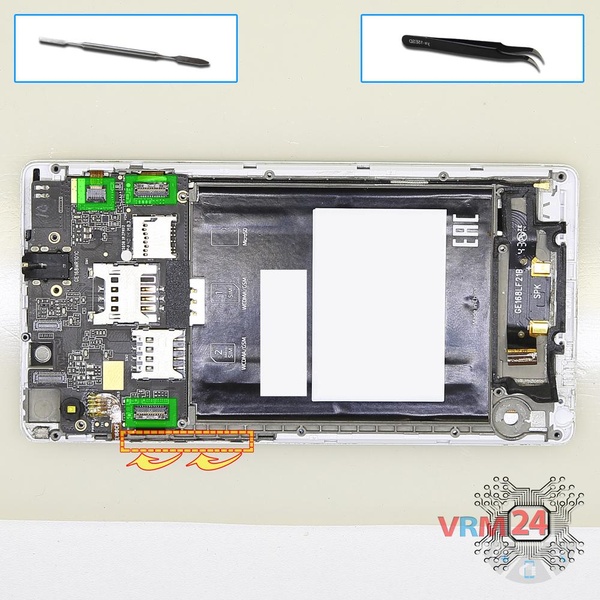

Remove the cable
Disconnect connectors on the PCB and pry up power & volume button flex cable.
Step 10.
Remove the motherboard

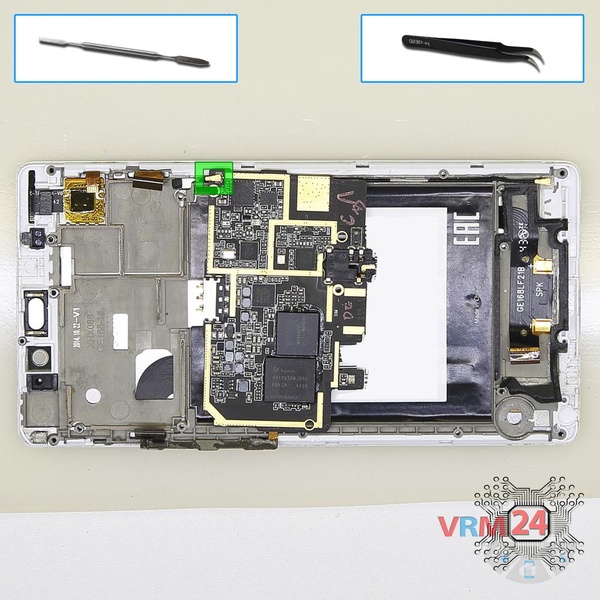

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.
Step 11.

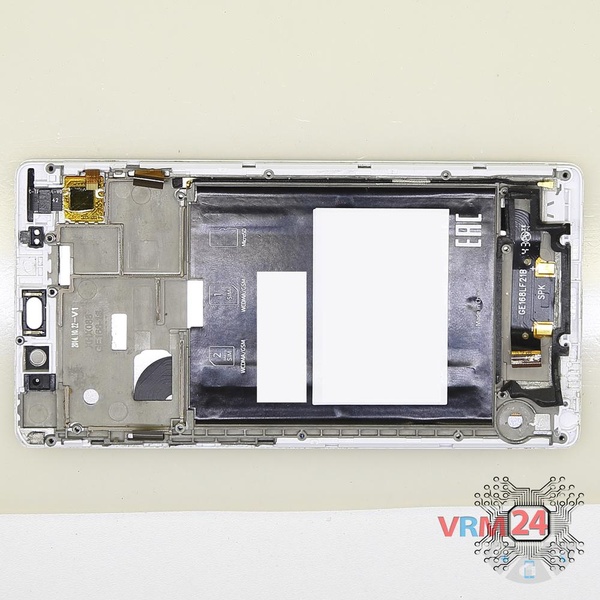

In the display frame remained
Parts in the frame of the display module.
