Disassembly/Repair of the mobile device Highscreen Spark with each step description and the required set of tools.

3945

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

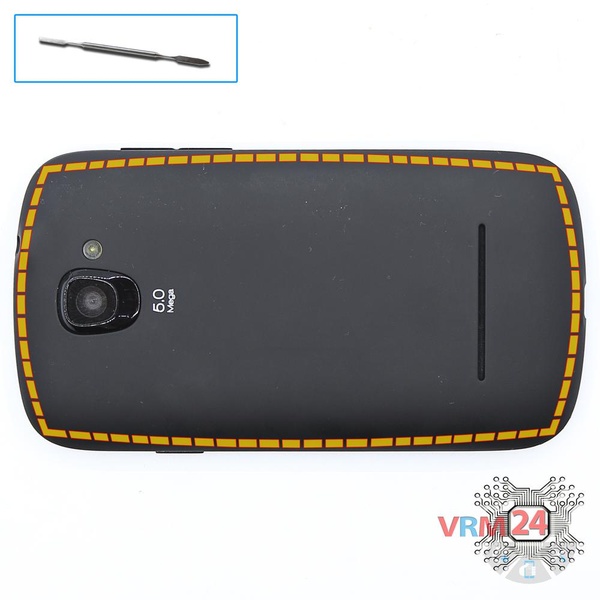

Open the back cover

Step 1.

Open the back cover

Open the back cover.

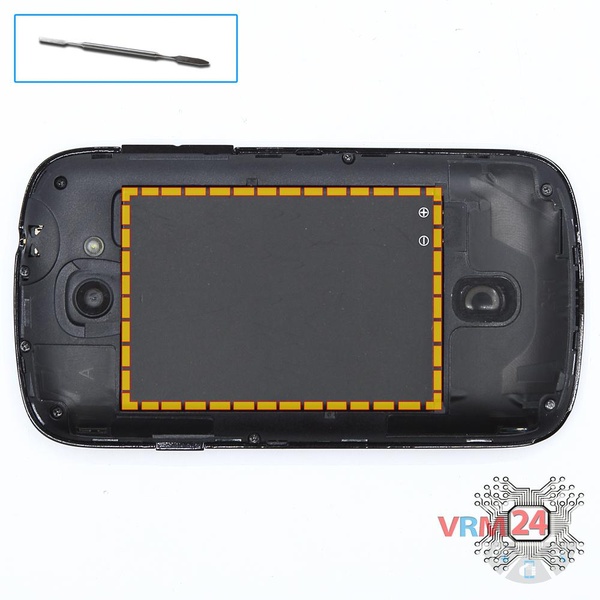

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

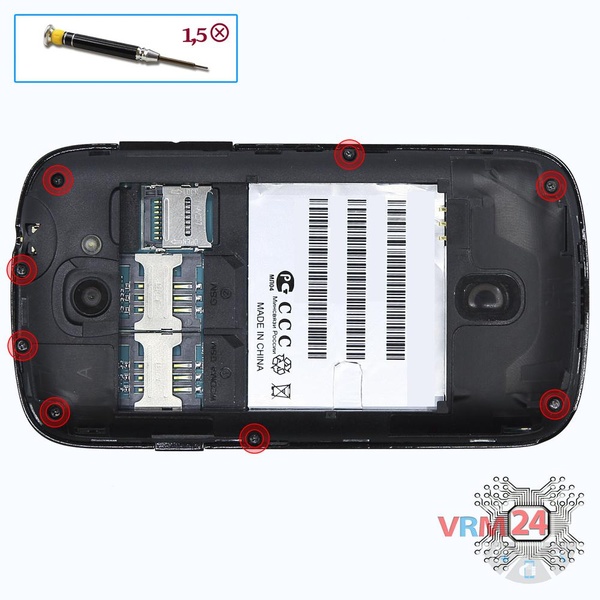

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

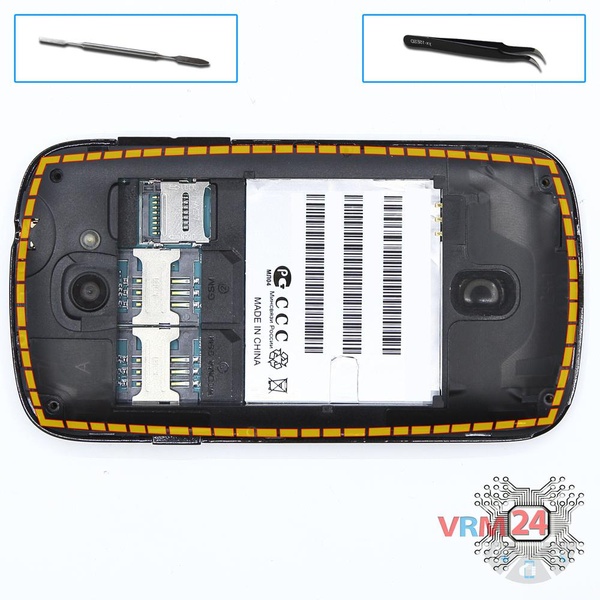

Open the mid-frame

Step 4.

Open the mid-frame

Pry and remove the middle frame and keys of the volume and power buttons.

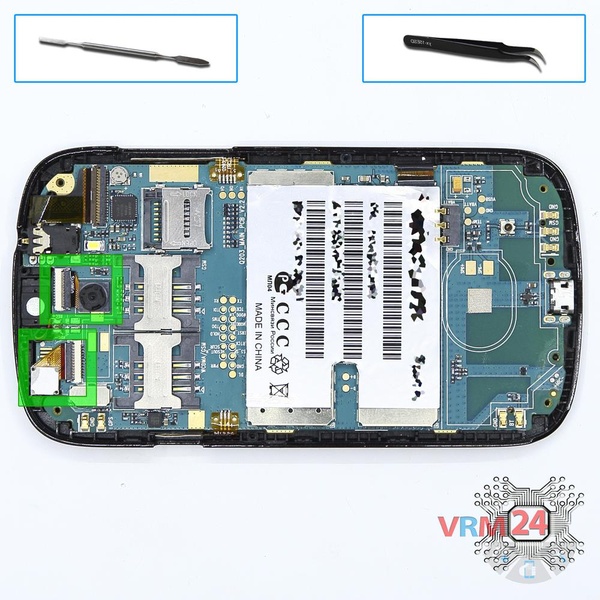

Remove the cameras

Step 5.

Remove the cameras

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

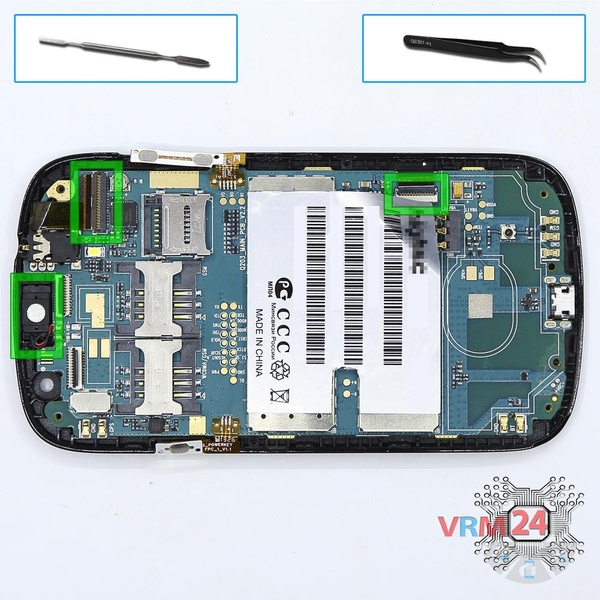

Disconnect the connectors

Step 6.

Disconnect the connectors

Disconnect connectors on the PCB.

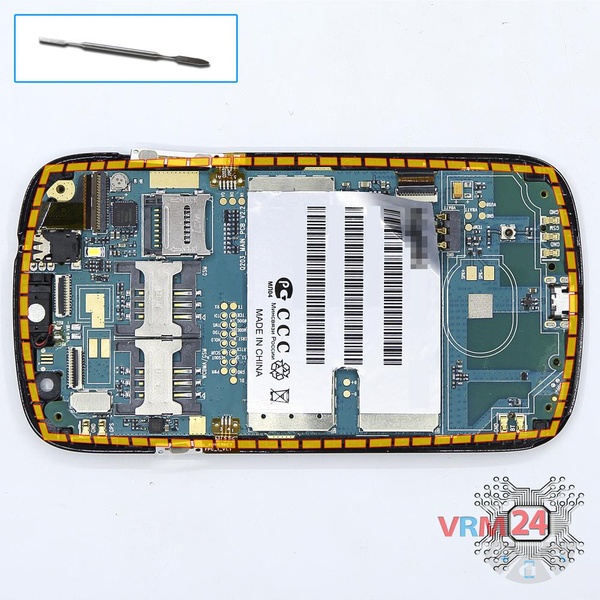

Remove the motherboard

Step 7.

Remove the motherboard

Remove the PCB.

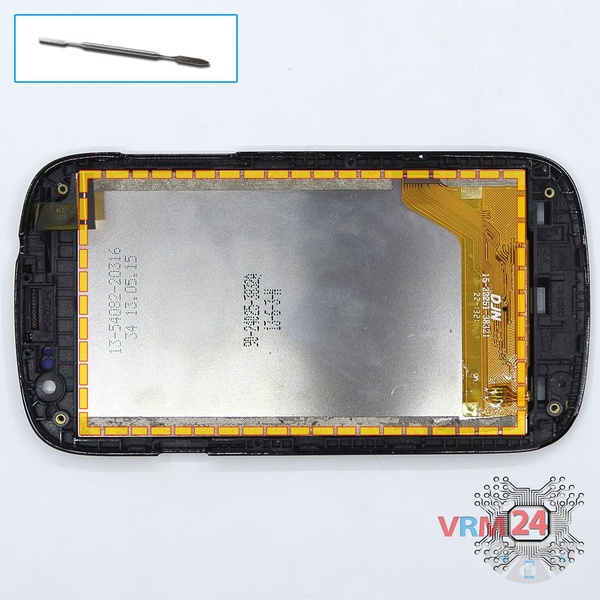

Open the display module

Step 8.

Open the display module

Separate the display from the front frame with the touchscreen.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 4 minutes in time. Our manual is suitable for all models Highscreen Spark or Хайскрин Спарк released for markets in different countries.
#instructions #Highscreen #Highscreen Spark
Detailed disassembly instructions of Highscreen Spark in the video, made by our mobile repair & service center:
