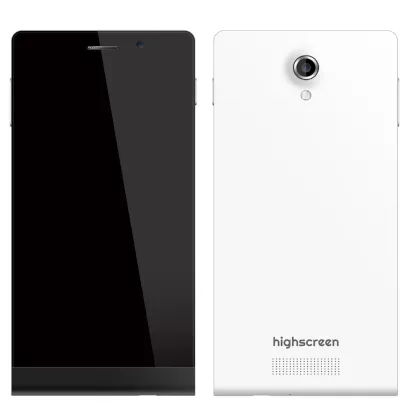

Disassembly/Repair of the mobile device Highscreen Thor with each step description and the required set of tools.
4240
Views
0
Likes
—
Share
3
Questions
Step 1.
Open the back cover
Open the back cover.
Step 2.
Remove the battery
Lift and remove the battery.
Step 3.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.
Step 4.
Open the mid-frame
Pry and remove the middle frame.
Step 5.
Remove the sub-board
Disconnect connectors on the lower PCB and remove it.
Step 6.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.
Step 7.
Remove the rear camera
Disconnect connector on the PCB and remove the main camera.
Step 8.
Disconnect the connectors
Disconnect connectors on the PCB.
Step 9.
Remove the motherboard
Turn over PCB, disconnect the connectors from the inside, remove the board and disconnect the coaxial cable .
Step 10.
In the display frame remained
Parts in the frame of the display module.
