Disassembly/Repair of the mobile device HONOR 50 (Honor 50 NTH-NX9) with each step description and the required set of tools.

⚠️ Before disassembling, do not forget to turn your phone off.

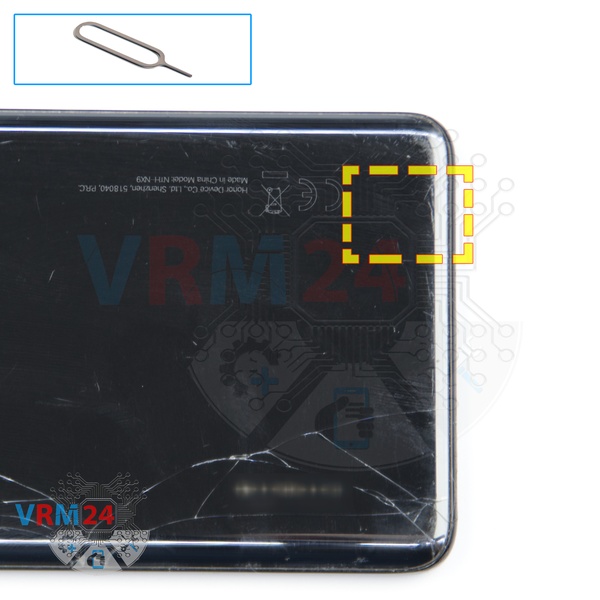

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

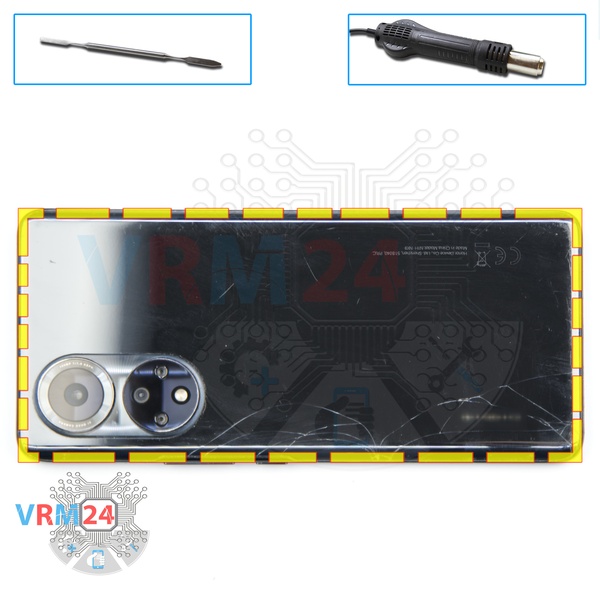

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

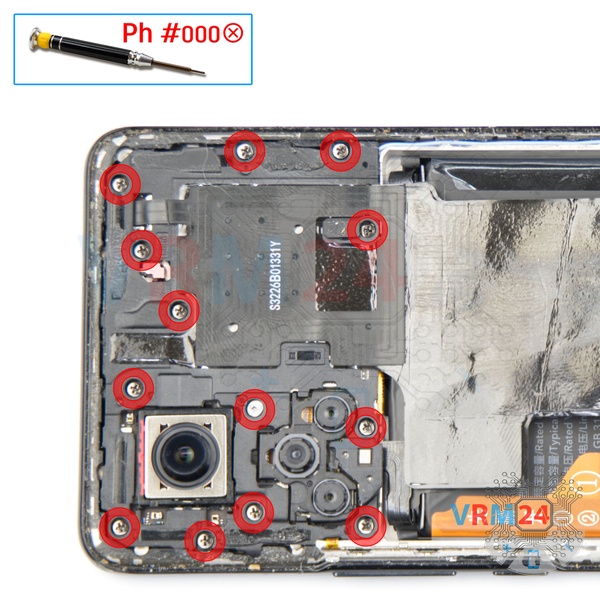

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 screws.

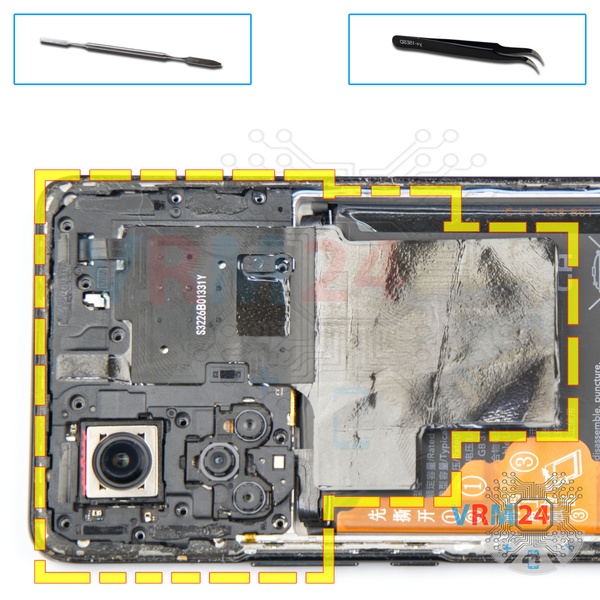

Remove the cover. On the back side there is a contact pad for the earpiece.

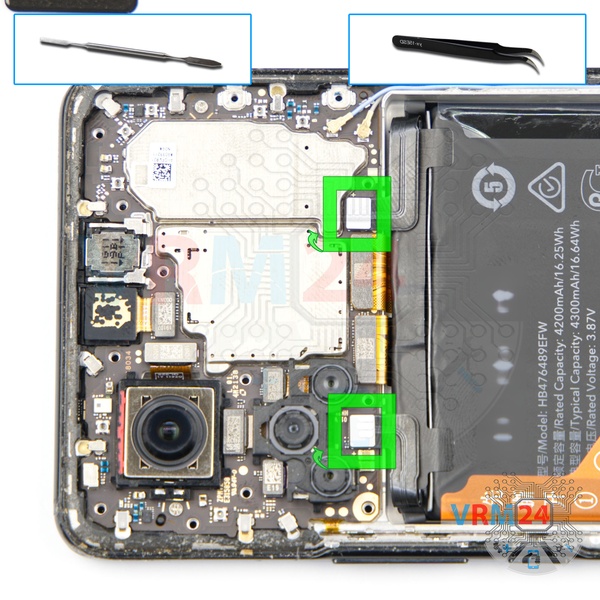

Disconnect the two battery connectors as soon as possible.

ℹ️️ The Honor 50 NTH-NX9 model has a battery HB476489EFW with 4300 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connectors to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

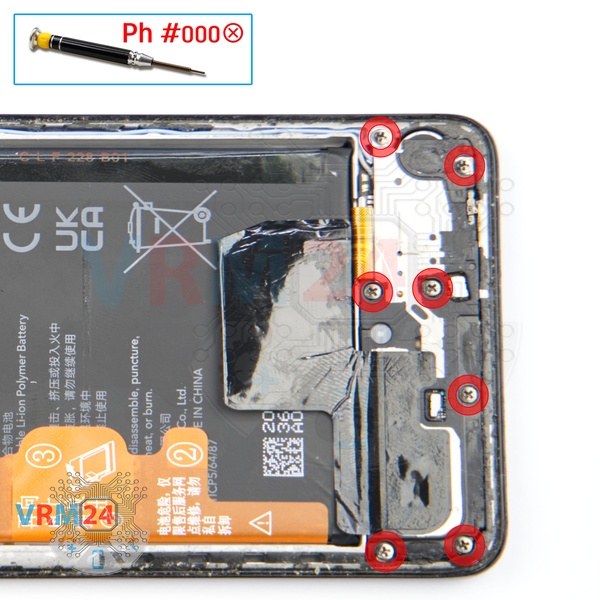

Using a screwdriver (Philips 1.5 mm PH000), unscrew 7 screws.

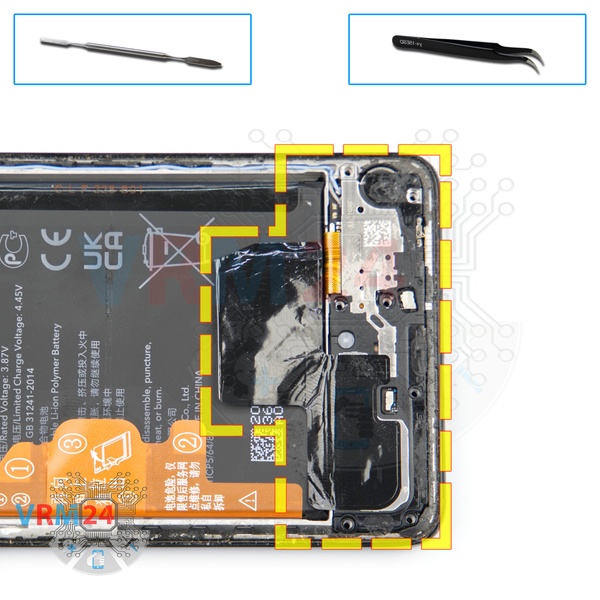

Remove the loudspeaker assembly with antennas.

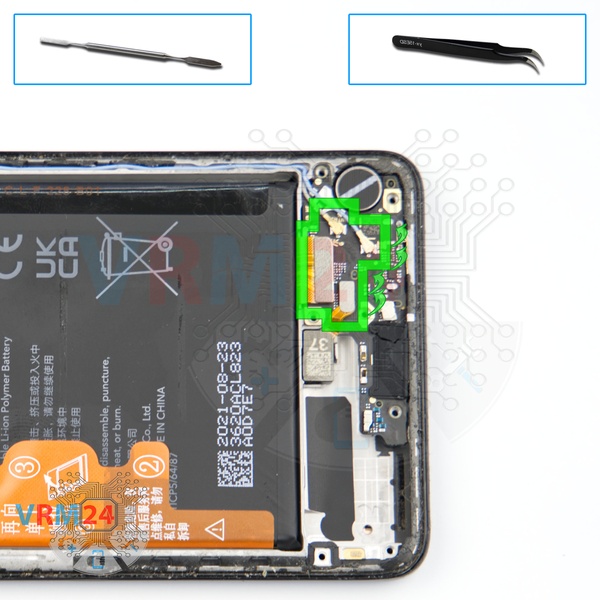

Disconnect two coaxial cable connectors, cable to the mainboard, and fingerprint sensor cable on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool. The connectors are pretty weak and break easily, or the cable falls out of the end (lug).

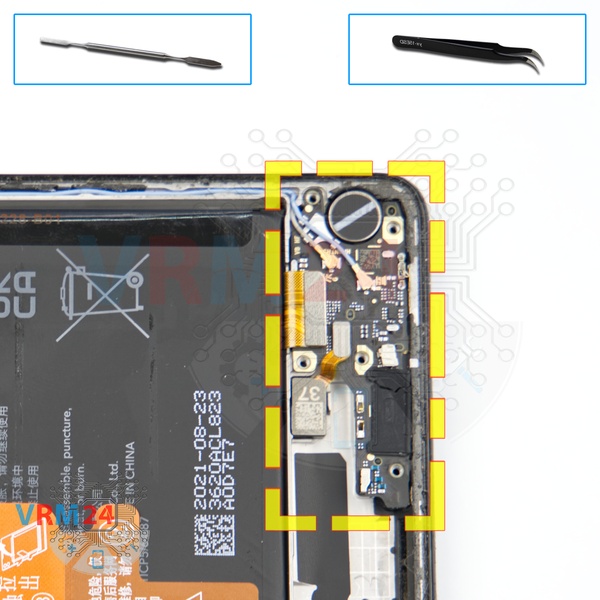

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

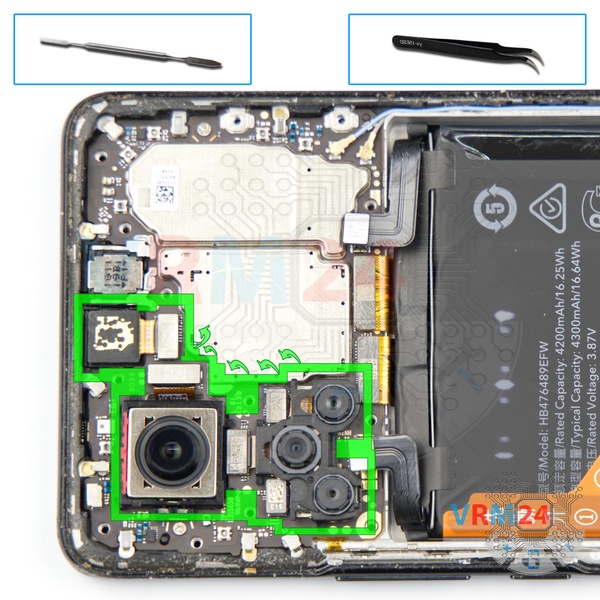

Pry up the connectors and remove four rear cameras and one front (selfie) camera.

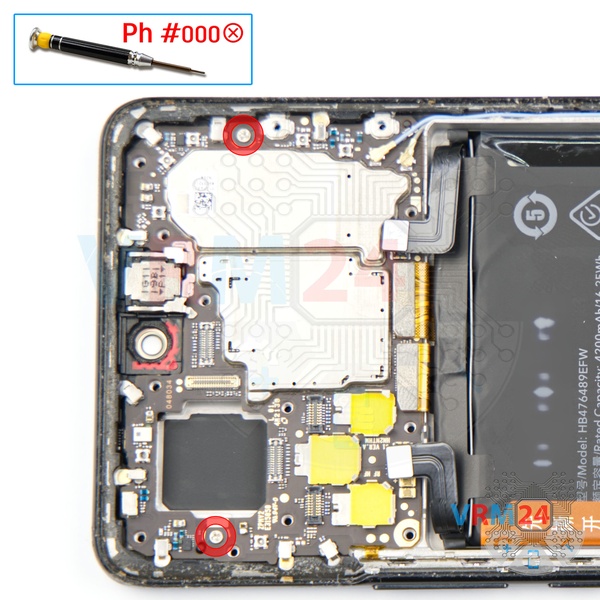

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws.

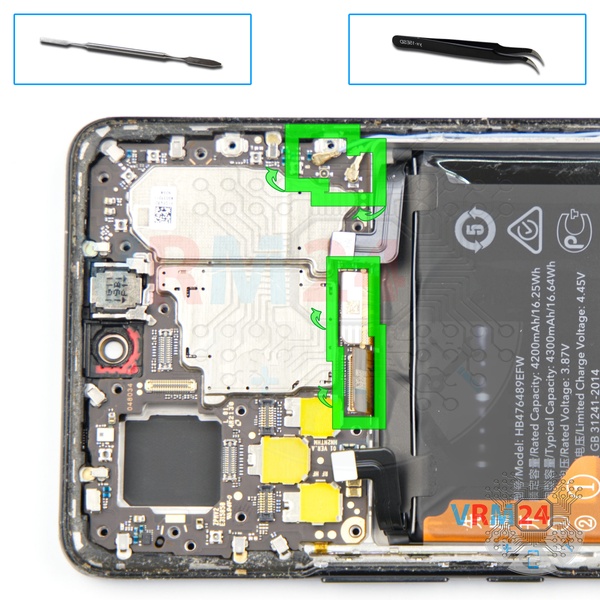

Pry up the connectors for display module cable, inter-board cable, and two coaxial cables.

⚠️ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

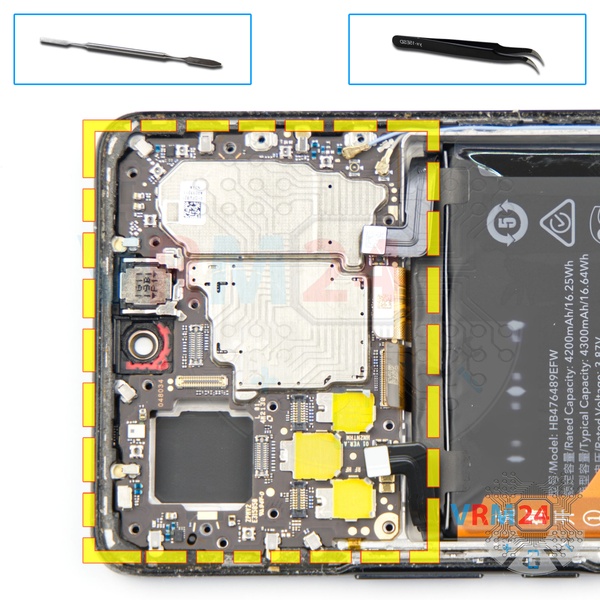

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

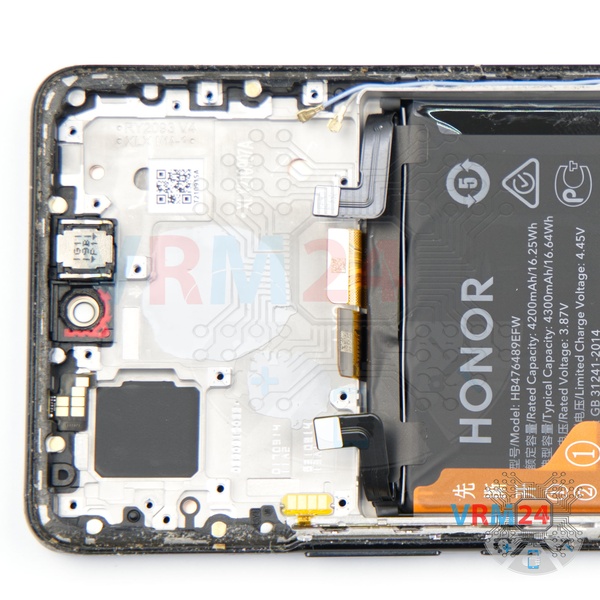

ℹ️️ In the display frame remained: the earpiece speaker, battery, coaxial cables, fingerprint sensor, vibration motor.
