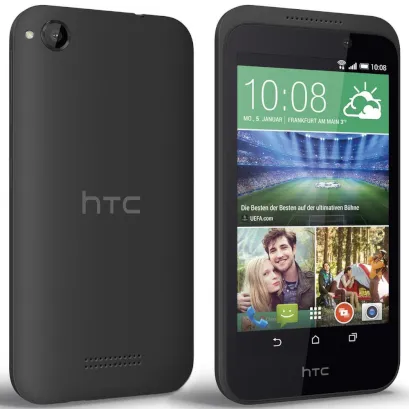

HTC Desire 320
HTC Desire 320
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 320 (HTC Desire 320 OPF1200) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HTC Desire 320, Step 1/1 How to disassemble HTC Desire 320, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC Desire 320, Step 2/1 How to disassemble HTC Desire 320, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble HTC Desire 320, Step 3/1 How to disassemble HTC Desire 320, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble HTC Desire 320, Step 4/1 How to disassemble HTC Desire 320, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble HTC Desire 320, Step 5/1 How to disassemble HTC Desire 320, Step 5/2 How to disassemble HTC Desire 320, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the main camera.

How to disassemble HTC Desire 320, Step 6/1 How to disassemble HTC Desire 320, Step 6/2 How to disassemble HTC Desire 320, Step 6/3 How to disassemble HTC Desire 320, Step 6/4 How to disassemble HTC Desire 320, Step 6/5 How to disassemble HTC Desire 320, Step 6/6 How to disassemble HTC Desire 320, Step 6/7 How to disassemble HTC Desire 320, Step 6/8 How to disassemble HTC Desire 320, Step 6/9 How to disassemble HTC Desire 320, Step 6/10

Step 6.

Disconnect connectors on the PCB and pry up vibration motor & power & remove the earpiece (speaker).

How to disassemble HTC Desire 320, Step 7/1 How to disassemble HTC Desire 320, Step 7/2

Step 7.

Remove the PCB.

How to disassemble HTC Desire 320, Step 8/1 How to disassemble HTC Desire 320, Step 8/2 How to disassemble HTC Desire 320, Step 8/3

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 320 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 320
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC Desire 320 — HTC Desire 320 OPF1200 released for markets in different countries.
