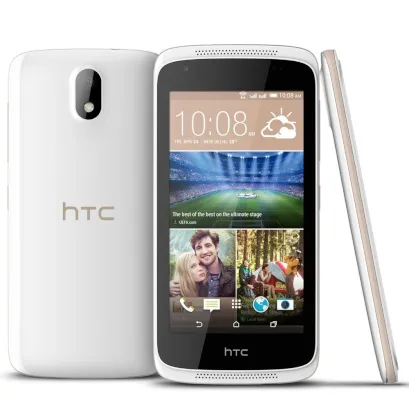

HTC Desire 326G
HTC Desire 326G 979 0
Teardown difficulty:
Easy

Recommended tools

Disassembly of the mobile device HTC Desire 326G with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC Desire 326G, Step 1/1 How to disassemble HTC Desire 326G, Step 1/2
Step 1

Open the back cover.

How to disassemble HTC Desire 326G, Step 2/1 How to disassemble HTC Desire 326G, Step 2/2
Step 2

Lift and remove the battery.

How to disassemble HTC Desire 326G, Step 3/1 How to disassemble HTC Desire 326G, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble HTC Desire 326G, Step 4/1 How to disassemble HTC Desire 326G, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble HTC Desire 326G, Step 5/1 How to disassemble HTC Desire 326G, Step 5/2
Step 5

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower part.

How to disassemble HTC Desire 326G, Step 6/1 How to disassemble HTC Desire 326G, Step 6/2
Step 6

Turn over the block.

Warning!

On this part are the speaker (buzzer) and vibration motor whose wires soldered to the lower board.

How to disassemble HTC Desire 326G, Step 7/1 How to disassemble HTC Desire 326G, Step 7/2 How to disassemble HTC Desire 326G, Step 7/3 How to disassemble HTC Desire 326G, Step 7/4 How to disassemble HTC Desire 326G, Step 7/5
Step 7

Disconnect connectors on the lower PCB and remove the board with the buzzer (speaker) & vibration motor assembly .

How to disassemble HTC Desire 326G, Step 8/1 How to disassemble HTC Desire 326G, Step 8/2
Step 8

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble HTC Desire 326G, Step 9/1 How to disassemble HTC Desire 326G, Step 9/2 How to disassemble HTC Desire 326G, Step 9/3 How to disassemble HTC Desire 326G, Step 9/4 How to disassemble HTC Desire 326G, Step 9/5 How to disassemble HTC Desire 326G, Step 9/6
Step 9

Pry up power & volume button flex cable and disconnect the connector of the coaxial cable.

How to disassemble HTC Desire 326G, Step 10/1 How to disassemble HTC Desire 326G, Step 10/2 How to disassemble HTC Desire 326G, Step 10/3
Step 10

Turn over PCB, disconnect the connectors from the inside and remove the board.

How to disassemble HTC Desire 326G, Step 11/1 How to disassemble HTC Desire 326G, Step 11/2
Step 11

Pry and remove the earpiece (speaker).

How to disassemble HTC Desire 326G, Step 12/1 How to disassemble HTC Desire 326G, Step 12/2 How to disassemble HTC Desire 326G, Step 12/3
Step 12

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 326G in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC Desire 326G released for markets in different countries.
