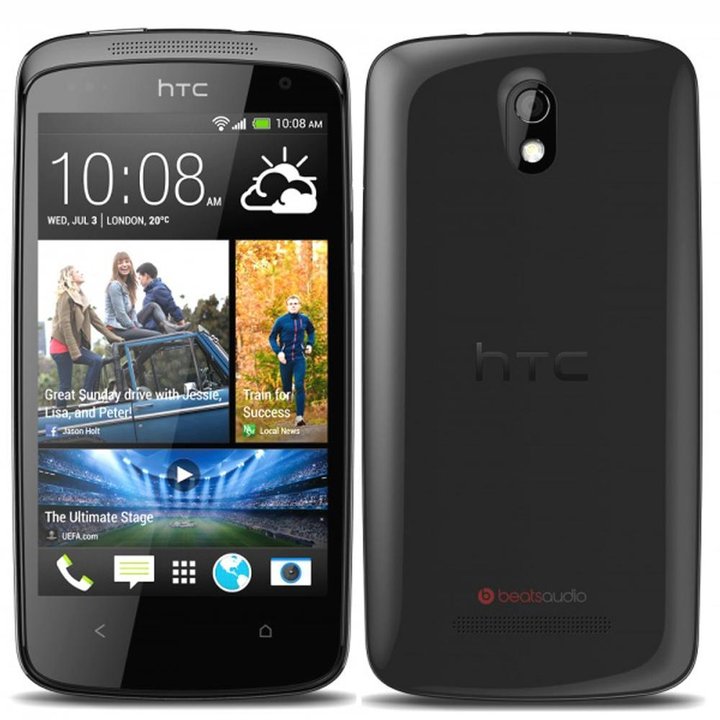

HTC Desire 500
HTC Desire 500
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 500 (HTC Desire 500 0P3Z100) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HTC Desire 500, Step 1/1 How to disassemble HTC Desire 500, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC Desire 500, Step 2/1 How to disassemble HTC Desire 500, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble HTC Desire 500, Step 3/1 How to disassemble HTC Desire 500, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 8 bolts in the frame of the phone.

How to disassemble HTC Desire 500, Step 4/1 How to disassemble HTC Desire 500, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble HTC Desire 500, Step 5/1

Step 5.

The middle frame.

How to disassemble HTC Desire 500, Step 6/1 How to disassemble HTC Desire 500, Step 6/2

Step 6.

Using a screwdriver (hex T5), unscrew 2 bolts in the lower PCB.

How to disassemble HTC Desire 500, Step 7/1 How to disassemble HTC Desire 500, Step 7/2 How to disassemble HTC Desire 500, Step 7/3

Step 7.

Disconnect connectors on the lower PCB & inter-board cable connector from inside and remove the board.

How to disassemble HTC Desire 500, Step 8/1 How to disassemble HTC Desire 500, Step 8/2

Step 8.

Disconnect connectors on the PCB.

How to disassemble HTC Desire 500, Step 9/1 How to disassemble HTC Desire 500, Step 9/2

Step 9.

Overturn the board, disconnect the connector from the inside and remove it.

Detailed disassembly instructions of HTC Desire 500 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 500
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC Desire 500 — HTC Desire 500 0P3Z100 released for markets in different countries.
