Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

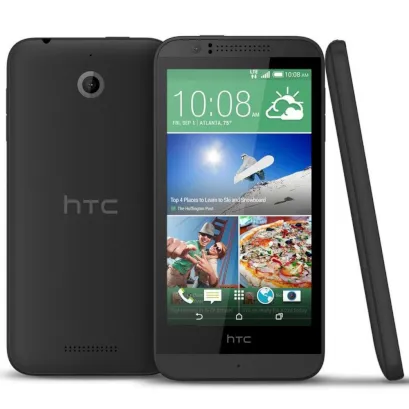

Disassembly/Repair of the mobile device HTC Desire 510 (HTC Desire 510 0PCV200) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC Desire 510, Step 1/1 How to disassemble HTC Desire 510, Step 1/2

Step 1.

Open the back cover.


How to disassemble HTC Desire 510, Step 2/1 How to disassemble HTC Desire 510, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble HTC Desire 510, Step 3/1 How to disassemble HTC Desire 510, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.


How to disassemble HTC Desire 510, Step 4/1 How to disassemble HTC Desire 510, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble HTC Desire 510, Step 5/1 How to disassemble HTC Desire 510, Step 5/2 How to disassemble HTC Desire 510, Step 5/3 How to disassemble HTC Desire 510, Step 5/4

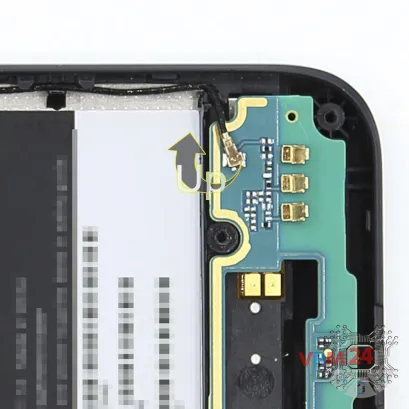

Step 5.

Disconnect connectors on the PCB.


How to disassemble HTC Desire 510, Step 6/1 How to disassemble HTC Desire 510, Step 6/2

Step 6.

Remove the PCB.


How to disassemble HTC Desire 510, Step 7/1 How to disassemble HTC Desire 510, Step 7/2 How to disassemble HTC Desire 510, Step 7/3

Step 7.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 510 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC Desire 510 — HTC Desire 510 0PCV200 released for markets in different countries.
