Disassembly/Repair of the mobile device HTC Desire 516 (HTC Desire 516 OPBD200) with each step description and the required set of tools.


Author, currently - Quality Assurance Specialist


How to disassemble HTC Desire 516, Step 1/1 How to disassemble HTC Desire 516, Step 1/2

Step 1.

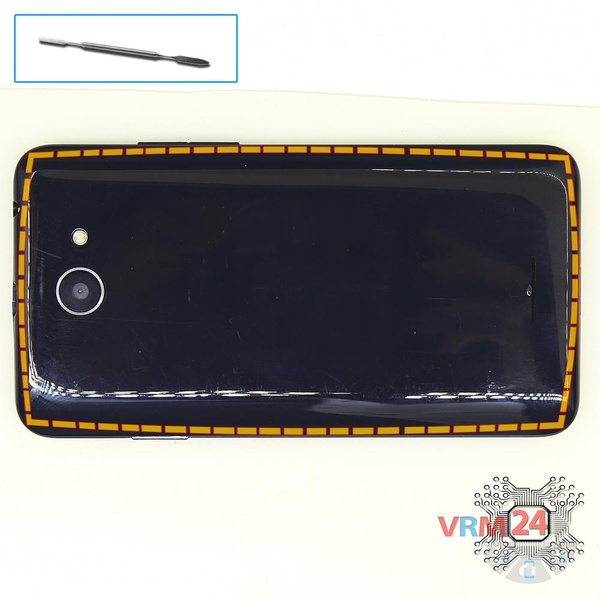

Open the back cover.


How to disassemble HTC Desire 516, Step 2/1 How to disassemble HTC Desire 516, Step 2/2

Step 2.

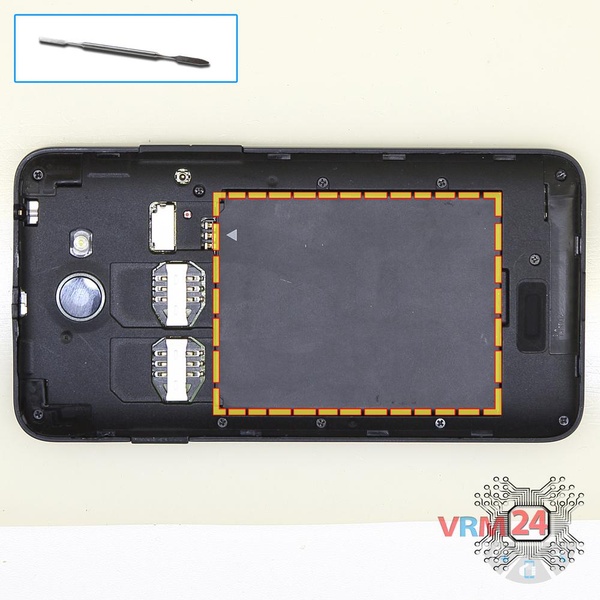

Lift and remove the battery.


How to disassemble HTC Desire 516, Step 3/1 How to disassemble HTC Desire 516, Step 3/2

Step 3.

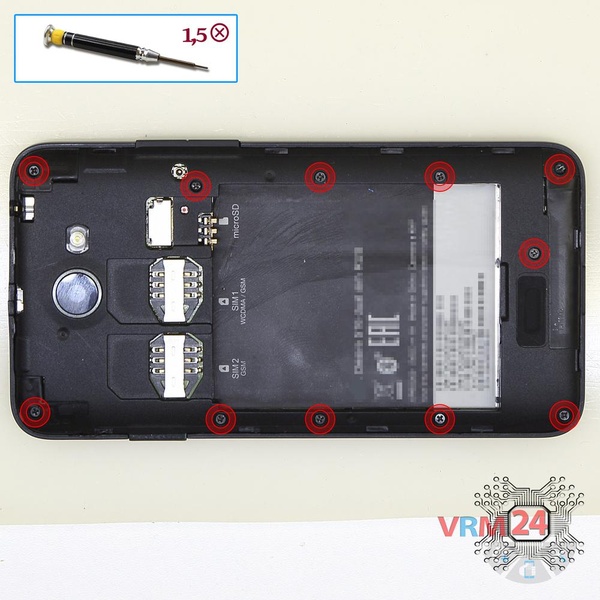

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.


How to disassemble HTC Desire 516, Step 4/1 How to disassemble HTC Desire 516, Step 4/2

Step 4.

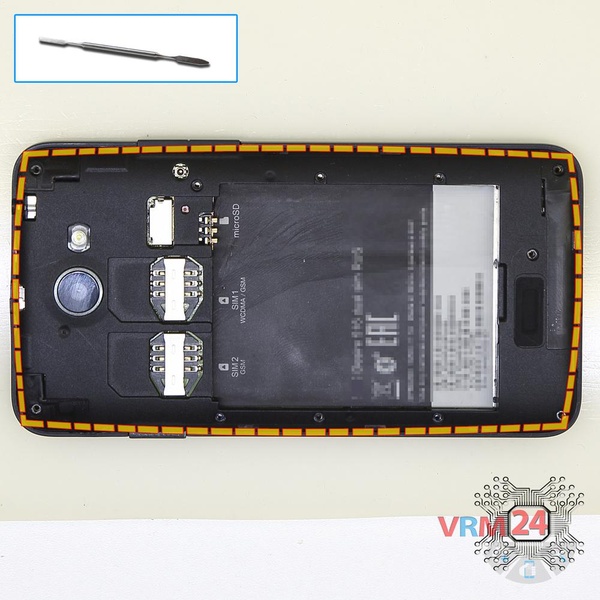

Pry and remove the middle frame.


How to disassemble HTC Desire 516, Step 5/1 How to disassemble HTC Desire 516, Step 5/2

Step 5.

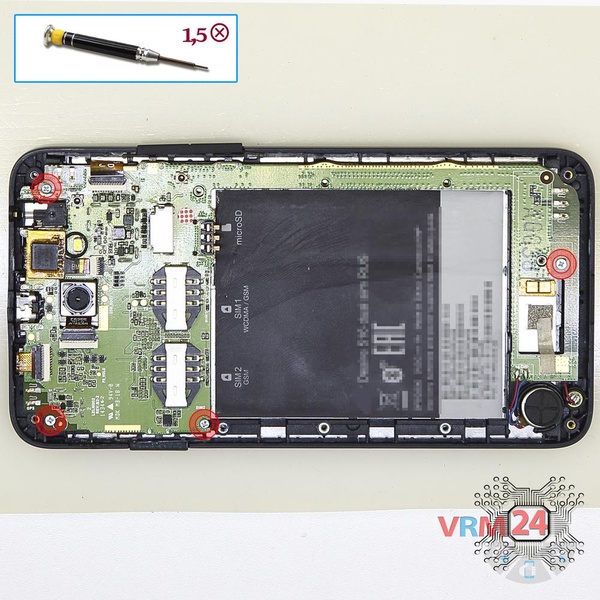

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.


How to disassemble HTC Desire 516, Step 6/1 How to disassemble HTC Desire 516, Step 6/2

Step 6.

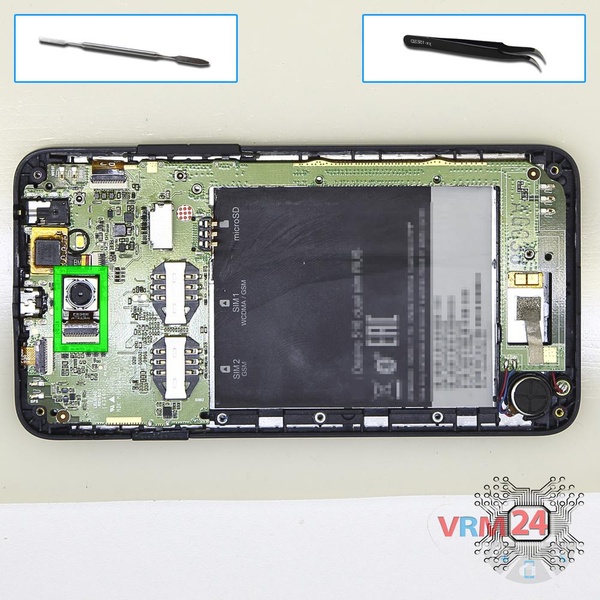

Disconnect connector on the PCB and remove the main camera.


How to disassemble HTC Desire 516, Step 7/1 How to disassemble HTC Desire 516, Step 7/2 How to disassemble HTC Desire 516, Step 7/3 How to disassemble HTC Desire 516, Step 7/4 How to disassemble HTC Desire 516, Step 7/5

Step 7.

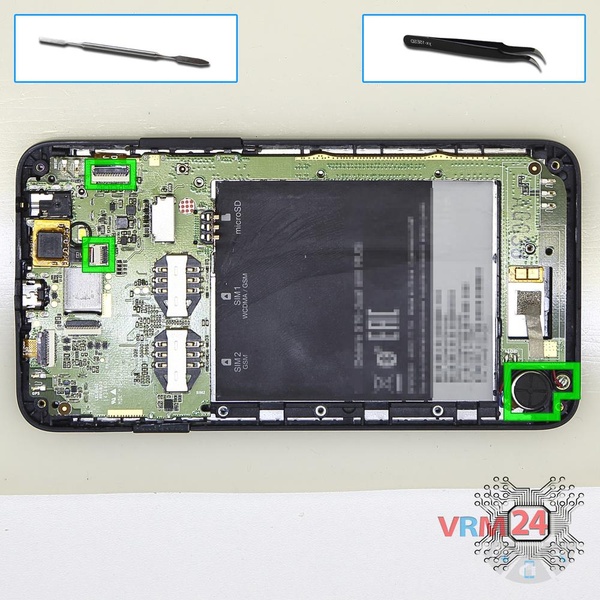

Disconnect connectors on the PCB and pry up vibration motor & microphone.


How to disassemble HTC Desire 516, Step 8/1 How to disassemble HTC Desire 516, Step 8/2

Step 8.

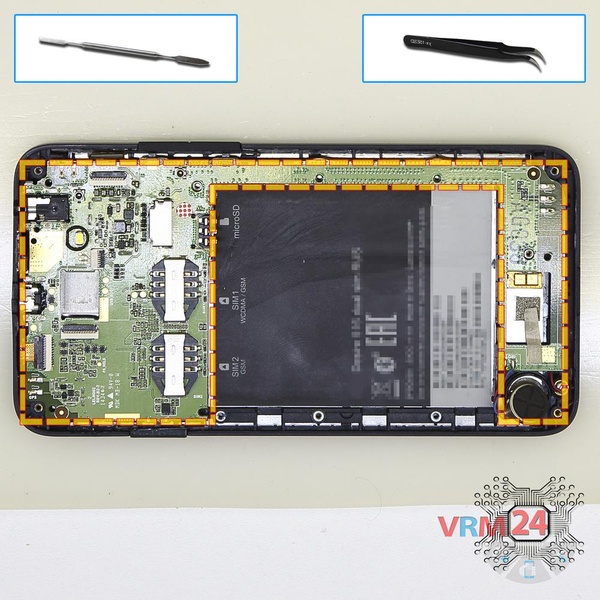

Remove the PCB.


How to disassemble HTC Desire 516, Step 9/1 How to disassemble HTC Desire 516, Step 9/2 How to disassemble HTC Desire 516, Step 9/3

Step 9.

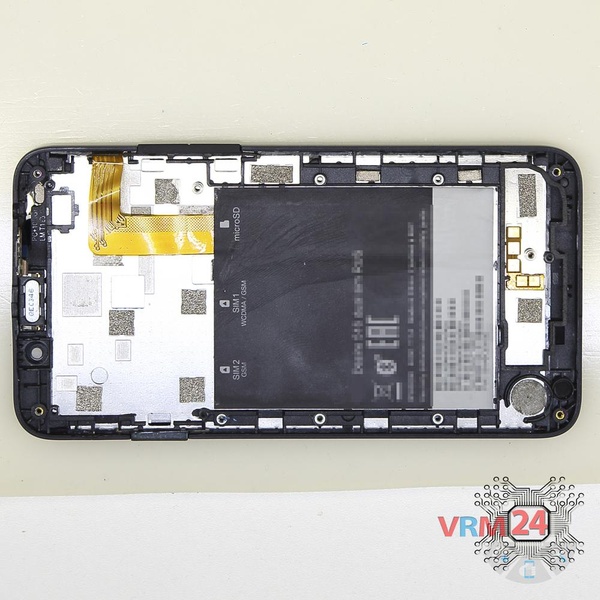

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 516 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC Desire 516 — HTC Desire 516 OPBD200 released for markets in different countries.
