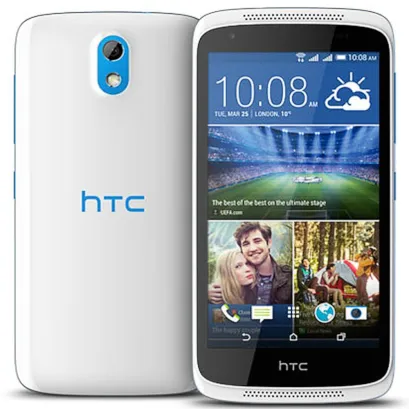

HTC Desire 526G
HTC Desire 526G
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 526G (HTC Desire 526G 0PL4100) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble HTC Desire 526G, Step 1/1 How to disassemble HTC Desire 526G, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC Desire 526G, Step 2/1 How to disassemble HTC Desire 526G, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble HTC Desire 526G, Step 3/1 How to disassemble HTC Desire 526G, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble HTC Desire 526G, Step 4/1 How to disassemble HTC Desire 526G, Step 4/2

Step 4.

Pry and remove the middle frame and keys of the volume and power buttons.

How to disassemble HTC Desire 526G, Step 5/1 How to disassemble HTC Desire 526G, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower part.

How to disassemble HTC Desire 526G, Step 6/1 How to disassemble HTC Desire 526G, Step 6/2

Step 6.

Turn over the buzzer (speaker) assembly.

How to disassemble HTC Desire 526G, Step 7/1 How to disassemble HTC Desire 526G, Step 7/2

Step 7.

Disconnect connector of the coaxial cable remove the lower PCB with antenna.

How to disassemble HTC Desire 526G, Step 8/1 How to disassemble HTC Desire 526G, Step 8/2

Step 8.

Disconnect connectors and remove another lower PCB with charging port, vibration motor, and speaker (buzzer) assembly.

How to disassemble HTC Desire 526G, Step 9/1 How to disassemble HTC Desire 526G, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble HTC Desire 526G, Step 10/1 How to disassemble HTC Desire 526G, Step 10/2 How to disassemble HTC Desire 526G, Step 10/3

Step 10.

Disconnect connectors of the coaxial cable & pry up the power & volume button flex cable.

How to disassemble HTC Desire 526G, Step 11/1 How to disassemble HTC Desire 526G, Step 11/2 How to disassemble HTC Desire 526G, Step 11/3

Step 11.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble HTC Desire 526G, Step 12/1 How to disassemble HTC Desire 526G, Step 12/2 How to disassemble HTC Desire 526G, Step 12/3

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 526G in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 526G
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models HTC Desire 526G — HTC Desire 526G 0PL4100 released for markets in different countries.
