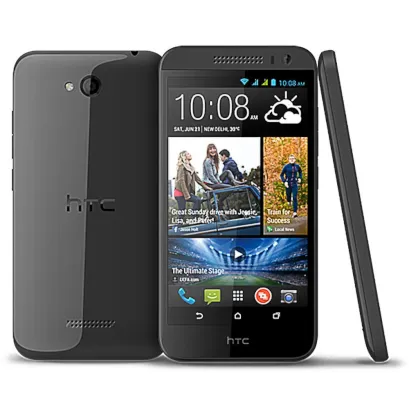

Disassembly of the mobile device HTC Desire 616 (HTC Desire 616 0PBM100) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC Desire 616, Step 1/1 How to disassemble HTC Desire 616, Step 1/2
Step 1

Open the back cover.

How to disassemble HTC Desire 616, Step 2/1
Step 2

Lift and remove the battery.

How to disassemble HTC Desire 616, Step 3/1 How to disassemble HTC Desire 616, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts in the frame of the phone.

How to disassemble HTC Desire 616, Step 4/1 How to disassemble HTC Desire 616, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble HTC Desire 616, Step 5/1
Step 5

The middle frame.

How to disassemble HTC Desire 616, Step 6/1 How to disassemble HTC Desire 616, Step 6/2 How to disassemble HTC Desire 616, Step 6/3 How to disassemble HTC Desire 616, Step 6/4
Step 6

Disconnect connectors on the main PCB, and a coaxial cable connector on the lower board.

How to disassemble HTC Desire 616, Step 7/1 How to disassemble HTC Desire 616, Step 7/2
Step 7

Remove the lower PCB and coaxial cable.

How to disassemble HTC Desire 616, Step 8/1 How to disassemble HTC Desire 616, Step 8/2
Step 8

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB and remove the touchscreen cable protective layer.

How to disassemble HTC Desire 616, Step 9/1 How to disassemble HTC Desire 616, Step 9/2
Step 9

Disconnect connectors on the lower PCB.

How to disassemble HTC Desire 616, Step 10/1 How to disassemble HTC Desire 616, Step 10/2
Step 10

Remove the PCB.

How to disassemble HTC Desire 616, Step 11/1 How to disassemble HTC Desire 616, Step 11/2 How to disassemble HTC Desire 616, Step 11/3
Step 11

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 616 in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models HTC Desire 616 — HTC Desire 616 0PBM100 released for markets in different countries.
