Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

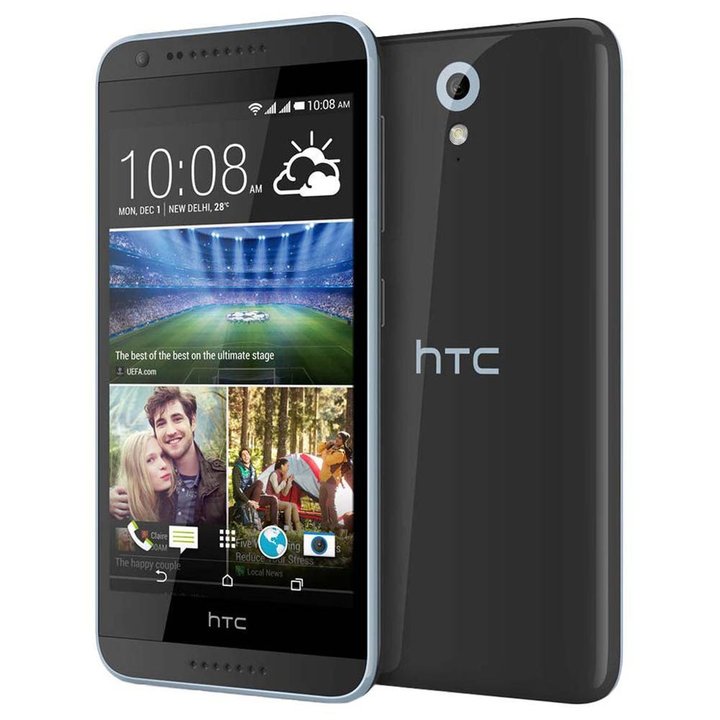

Disassembly/Repair of the mobile device HTC Desire 620G (HTC Desire 620G OPE6500) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC Desire 620G, Step 1/1 How to disassemble HTC Desire 620G, Step 1/2

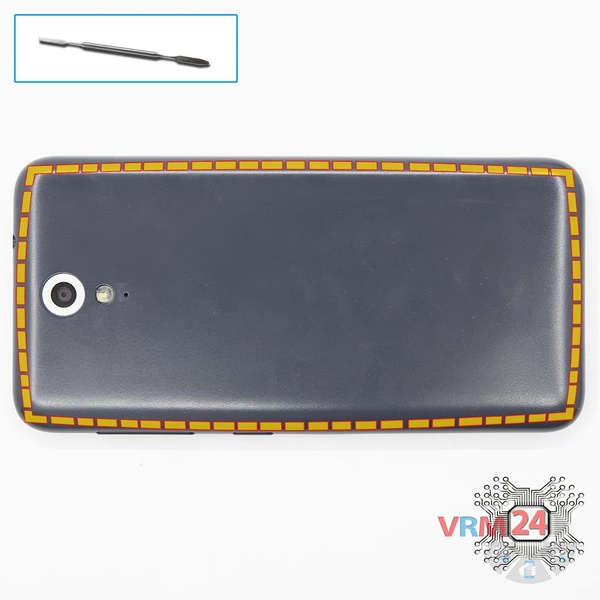

Step 1.

Open the back cover.


How to disassemble HTC Desire 620G, Step 2/1 How to disassemble HTC Desire 620G, Step 2/2

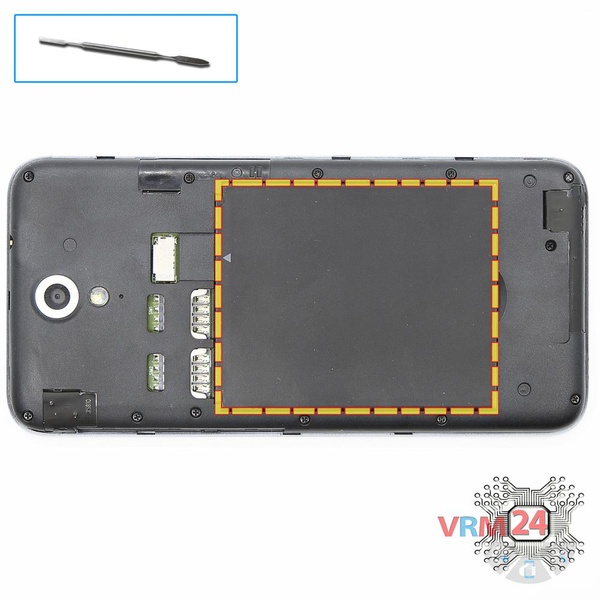

Step 2.

Lift and remove the battery.


How to disassemble HTC Desire 620G, Step 3/1 How to disassemble HTC Desire 620G, Step 3/2

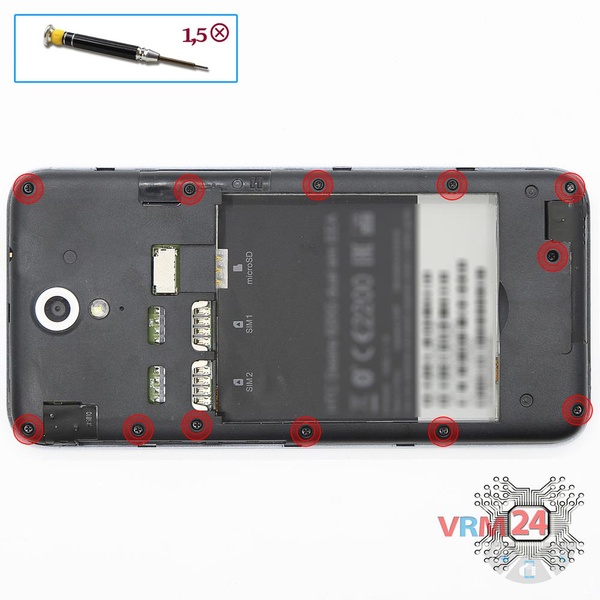

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.


How to disassemble HTC Desire 620G, Step 4/1 How to disassemble HTC Desire 620G, Step 4/2

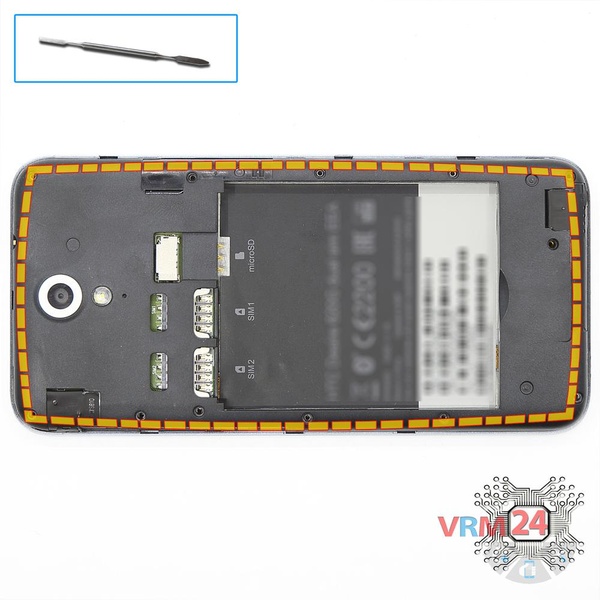

Step 4.

Pry and remove the middle frame.


How to disassemble HTC Desire 620G, Step 5/1 How to disassemble HTC Desire 620G, Step 5/2

Step 5.

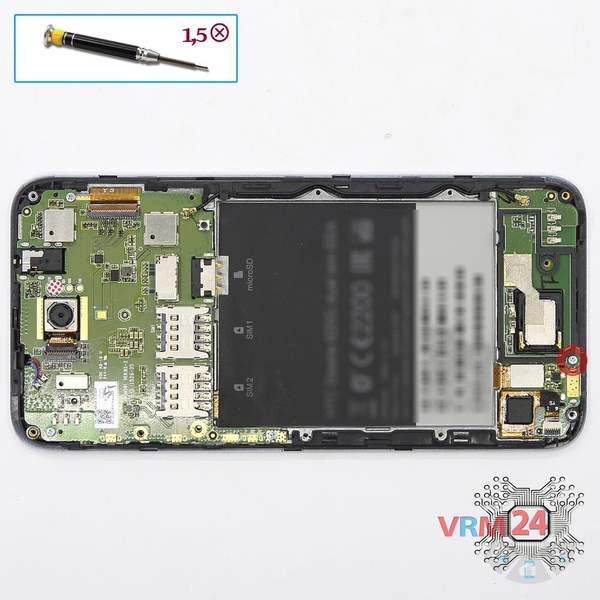

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.


How to disassemble HTC Desire 620G, Step 6/1 How to disassemble HTC Desire 620G, Step 6/2 How to disassemble HTC Desire 620G, Step 6/3

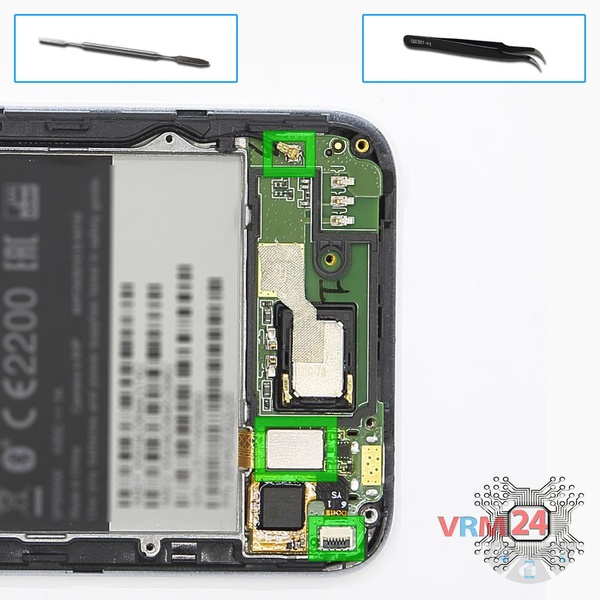

Step 6.

Disconnect connectors on the lower PCB and remove it.


How to disassemble HTC Desire 620G, Step 7/1 How to disassemble HTC Desire 620G, Step 7/2

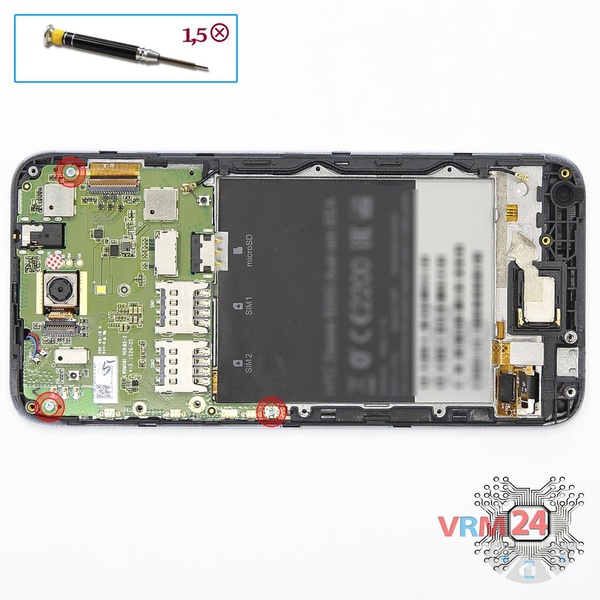

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.


How to disassemble HTC Desire 620G, Step 8/1 How to disassemble HTC Desire 620G, Step 8/2

Step 8.

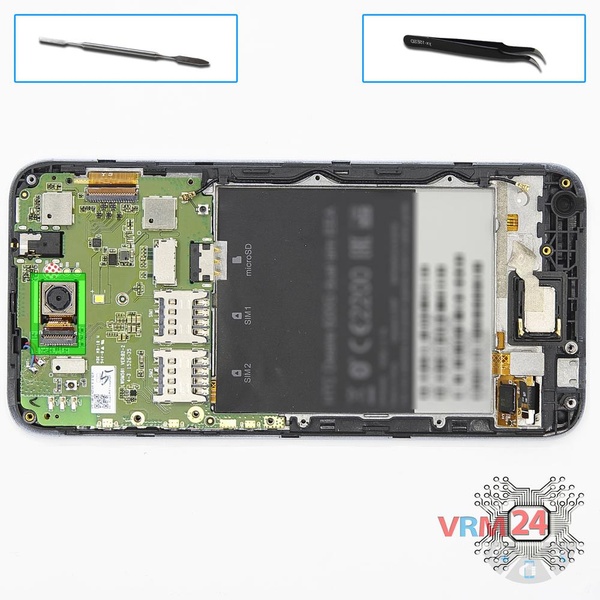

Disconnect connector on the PCB and remove the main camera.


How to disassemble HTC Desire 620G, Step 9/1 How to disassemble HTC Desire 620G, Step 9/2 How to disassemble HTC Desire 620G, Step 9/3

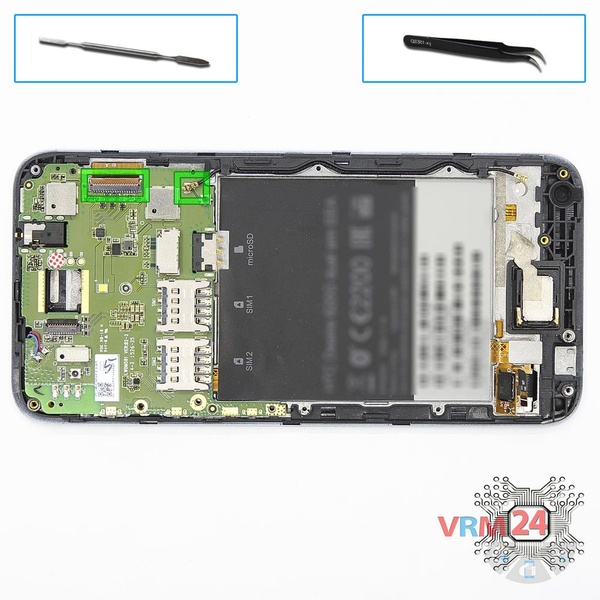

Step 9.

Disconnect connectors on the PCB.


How to disassemble HTC Desire 620G, Step 10/1 How to disassemble HTC Desire 620G, Step 10/2

Step 10.

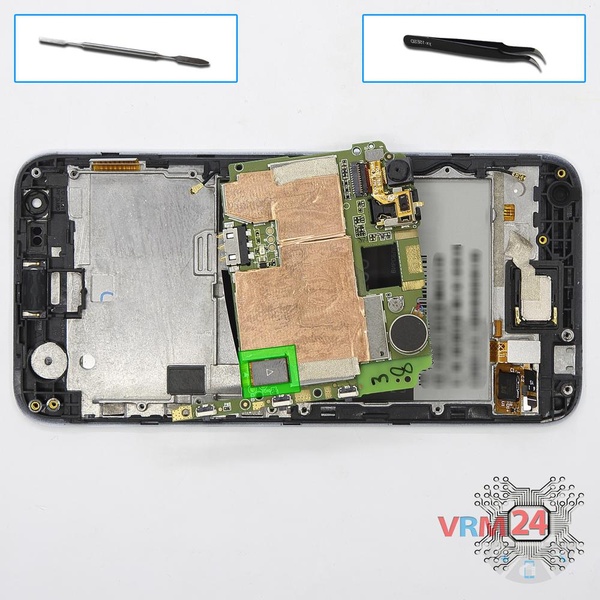

Turn over PCB, disconnect the connector from the inside and remove the board.


How to disassemble HTC Desire 620G, Step 11/1 How to disassemble HTC Desire 620G, Step 11/2 How to disassemble HTC Desire 620G, Step 11/3

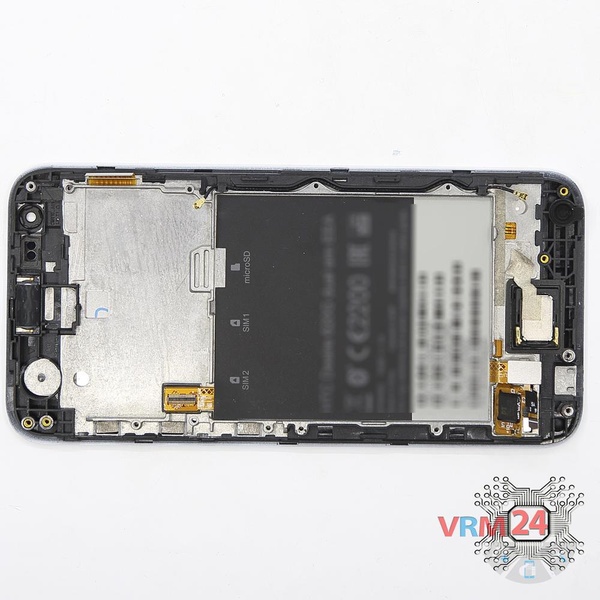

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 620G in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models HTC Desire 620G — HTC Desire 620G OPE6500 released for markets in different countries.
