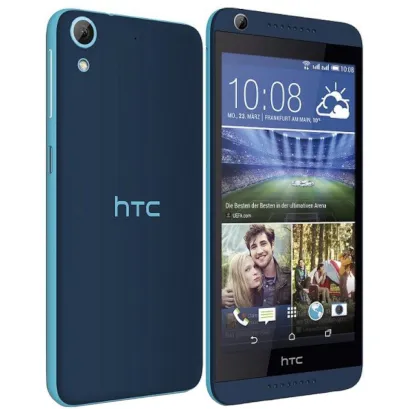

HTC Desire 626
HTC Desire 626
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 626 (HTC Desire 626 OPM1100) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble HTC Desire 626, Step 1/1 How to disassemble HTC Desire 626, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC Desire 626, Step 2/1 How to disassemble HTC Desire 626, Step 2/2

Step 2.

Open the cover and remove the Sim card trays.

How to disassemble HTC Desire 626, Step 3/1 How to disassemble HTC Desire 626, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble HTC Desire 626, Step 4/1 How to disassemble HTC Desire 626, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble HTC Desire 626, Step 5/1 How to disassemble HTC Desire 626, Step 5/2

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble HTC Desire 626, Step 6/1 How to disassemble HTC Desire 626, Step 6/2

Step 6.

Pry and remove the buzzer (speaker).

How to disassemble HTC Desire 626, Step 7/1 How to disassemble HTC Desire 626, Step 7/2

Step 7.

Disconnect connectors on the lower PCB and remove it.

How to disassemble HTC Desire 626, Step 8/1 How to disassemble HTC Desire 626, Step 8/2

Step 8.

Disconnect connectors and remove inter-board cable.

How to disassemble HTC Desire 626, Step 9/1 How to disassemble HTC Desire 626, Step 9/2 How to disassemble HTC Desire 626, Step 9/3

Step 9.

Disconnect connectors on the PCB.

How to disassemble HTC Desire 626, Step 10/1 How to disassemble HTC Desire 626, Step 10/2 How to disassemble HTC Desire 626, Step 10/3

Step 10.

Turn over PCB, disconnect the connector from the inside and remove the board.

How to disassemble HTC Desire 626, Step 11/1 How to disassemble HTC Desire 626, Step 11/2 How to disassemble HTC Desire 626, Step 11/3 How to disassemble HTC Desire 626, Step 11/4

Step 11.

Pry & remove the coaxial cable & headphone jack/socket & earpiece (speaker).

How to disassemble HTC Desire 626, Step 12/1 How to disassemble HTC Desire 626, Step 12/2 How to disassemble HTC Desire 626, Step 12/3

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 626 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 626
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models HTC Desire 626 — HTC Desire 626 OPM1100 released for markets in different countries.
