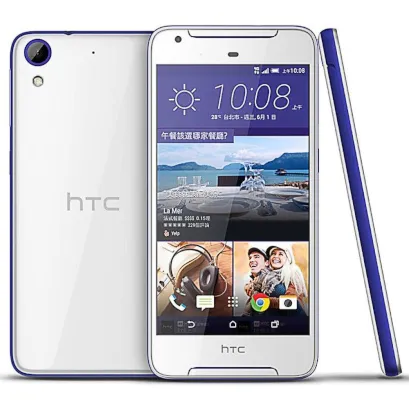

Disassembly/Repair of the mobile device HTC Desire 628 (HTC Desire 628 2PVG200) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble HTC Desire 628, Step 1/1 How to disassemble HTC Desire 628, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC Desire 628, Step 2/1 How to disassemble HTC Desire 628, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble HTC Desire 628, Step 3/1 How to disassemble HTC Desire 628, Step 3/2

Step 3.

Using the key tool, open the SIM card trays and remove them.

How to disassemble HTC Desire 628, Step 4/1 How to disassemble HTC Desire 628, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble HTC Desire 628, Step 5/1 How to disassemble HTC Desire 628, Step 5/2 How to disassemble HTC Desire 628, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble HTC Desire 628, Step 6/1 How to disassemble HTC Desire 628, Step 6/2

Step 6.

Using a screwdriver (hex T5), unscrew 2 bolts in the lower part.

How to disassemble HTC Desire 628, Step 7/1 How to disassemble HTC Desire 628, Step 7/2 How to disassemble HTC Desire 628, Step 7/3

Step 7.

Turn over buzzer (speaker) assembly. Disconnect connectors on PCB and remove the board.

  ⚠️ Warning!

Speaker wires are soldered to the PCB.





How to disassemble HTC Desire 628, Step 8/1 How to disassemble HTC Desire 628, Step 8/2 How to disassemble HTC Desire 628, Step 8/3

Step 8.

Disconnect connectors and remove the coaxial cable.

How to disassemble HTC Desire 628, Step 9/1 How to disassemble HTC Desire 628, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble HTC Desire 628, Step 10/1 How to disassemble HTC Desire 628, Step 10/2 How to disassemble HTC Desire 628, Step 10/3

Step 10.

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble HTC Desire 628, Step 11/1 How to disassemble HTC Desire 628, Step 11/2 How to disassemble HTC Desire 628, Step 11/3

Step 11.

Turn over PCB, disconnect the connector of the inter-bard cable from the inside and remove the board.

How to disassemble HTC Desire 628, Step 12/1 How to disassemble HTC Desire 628, Step 12/2

Step 12.

Pry and remove the earpiece (speaker).

How to disassemble HTC Desire 628, Step 13/1 How to disassemble HTC Desire 628, Step 13/2 How to disassemble HTC Desire 628, Step 13/3

Step 13.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 628 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 628
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models HTC Desire 628 — HTC Desire 628 2PVG200 released for markets in different countries.
