HTC Desire HD
HTC Desire HD
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

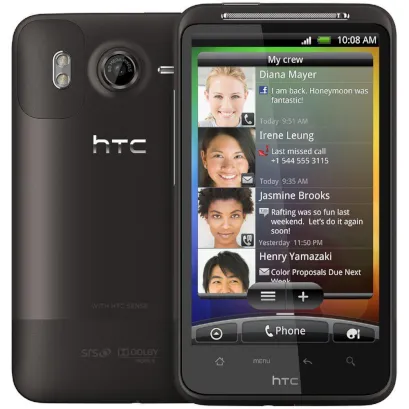

Disassembly/Repair of the mobile device HTC Desire HD (HTC Desire HD A9191 NM8PD98100) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble HTC Desire HD, Step 1/1 How to disassemble HTC Desire HD, Step 1/2

Step 1.

Open the side cover and remove the battery.

How to disassemble HTC Desire HD, Step 2/1 How to disassemble HTC Desire HD, Step 2/2

Step 2.

Open the bottom cover.

How to disassemble HTC Desire HD, Step 3/1 How to disassemble HTC Desire HD, Step 3/2

Step 3.

Open the cover.

How to disassemble HTC Desire HD, Step 4/1 How to disassemble HTC Desire HD, Step 4/2

Step 4.

Remove the label.

How to disassemble HTC Desire HD, Step 5/1 How to disassemble HTC Desire HD, Step 5/2

Step 5.

Using a screwdriver (hex T5), unscrew 2 bolts securing the back cover.

How to disassemble HTC Desire HD, Step 6/1 How to disassemble HTC Desire HD, Step 6/2

Step 6.

Open the back cover.

How to disassemble HTC Desire HD, Step 7/1 How to disassemble HTC Desire HD, Step 7/2

Step 7.

Using a screwdriver (hex T5), unscrew 3 bolts and remove the cover.

How to disassemble HTC Desire HD, Step 8/1 How to disassemble HTC Desire HD, Step 8/2 How to disassemble HTC Desire HD, Step 8/3 How to disassemble HTC Desire HD, Step 8/4

Step 8.

Disconnect the connector, pry up the vibration motor & remove the flat bar.

How to disassemble HTC Desire HD, Step 9/1 How to disassemble HTC Desire HD, Step 9/2 How to disassemble HTC Desire HD, Step 9/3

Step 9.

Using a screwdriver (hex T5), unscrew 2 bolts and disconnect connectors of coaxial cables.

How to disassemble HTC Desire HD, Step 10/1 How to disassemble HTC Desire HD, Step 10/2 How to disassemble HTC Desire HD, Step 10/3

Step 10.

Remove the PCB.

How to disassemble HTC Desire HD, Step 11/1

Step 11.

Parts in the frame of the display module.

How to disassemble HTC Desire HD, Step 12/1 How to disassemble HTC Desire HD, Step 12/2 How to disassemble HTC Desire HD, Step 12/3

Step 12.

Disconnect connectors on the PCB, pry & remove the vibration motor and flat cable with Sim & MMC holders.
