HTC One Max
HTC One Max
Teardown difficulty:
Moderate
Duration:
14 min

Recommended tools

Screwdriver Tri-point Y000 Screwdriver tri-point y000
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC One Max (HTC One Max OP3P510) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HTC One Max, Step 1/1 How to disassemble HTC One Max, Step 1/2

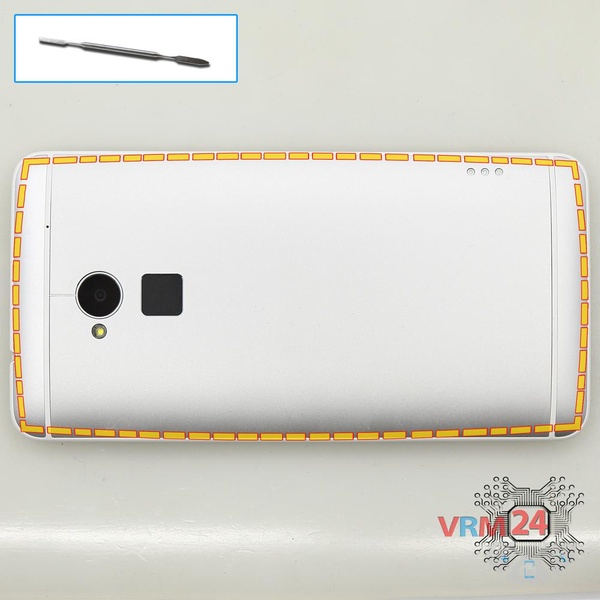

Step 1.

Open the back cover.

How to disassemble HTC One Max, Step 2/1 How to disassemble HTC One Max, Step 2/2

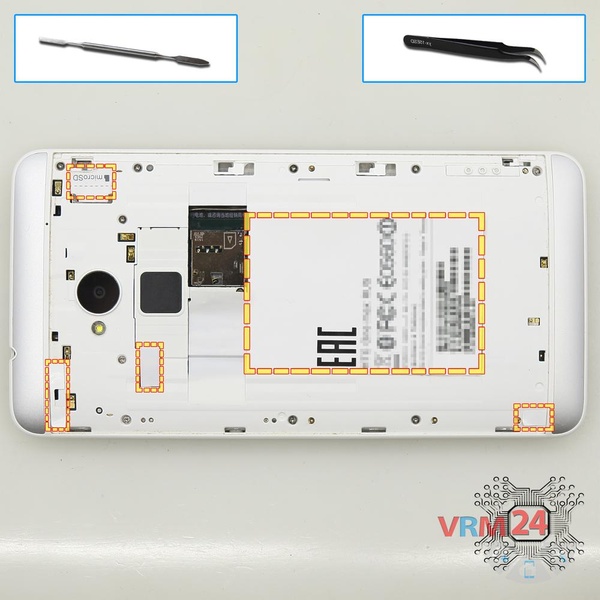

Step 2.

Pry & remove hole cap covers. Also, peel off the label with a copper layer.

How to disassemble HTC One Max, Step 3/1 How to disassemble HTC One Max, Step 3/2

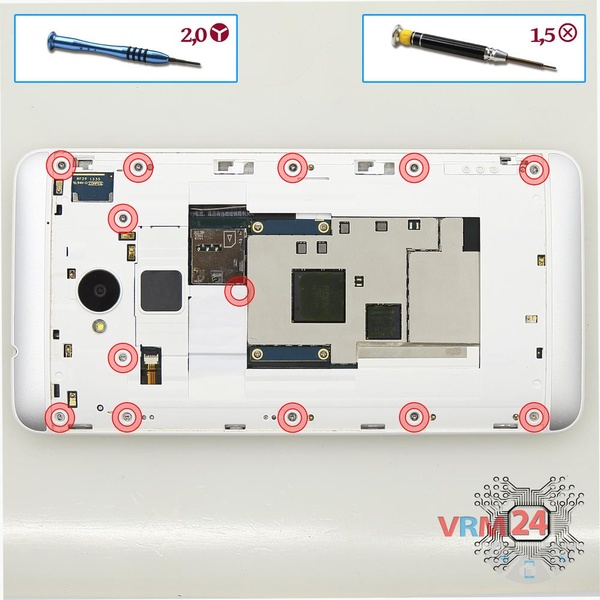

Step 3.

Using a screwdriver (Tri-Wing Precision Screwdriver 2.0mm), unscrew 12 bolts and a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt (under the cover) in the frame of the phone.

How to disassemble HTC One Max, Step 4/1 How to disassemble HTC One Max, Step 4/2

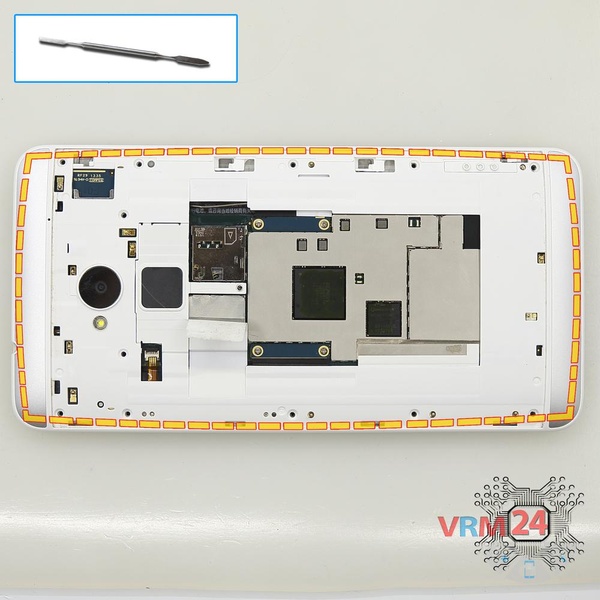

Step 4.

Pry and remove the middle frame.

How to disassemble HTC One Max, Step 5/1 How to disassemble HTC One Max, Step 5/2

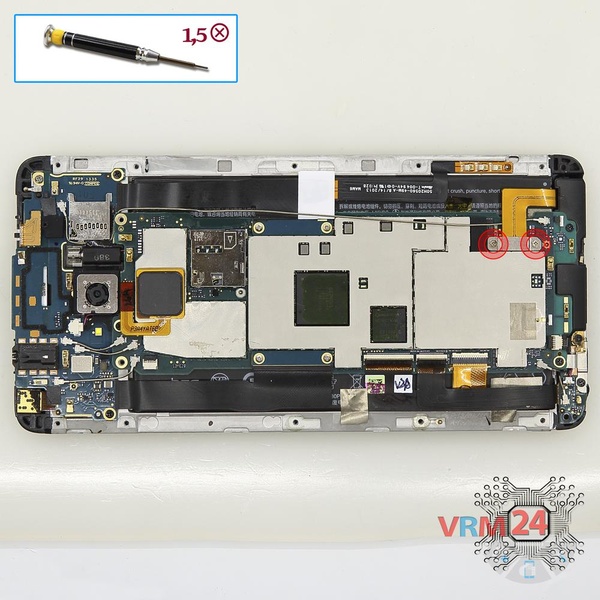

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the connector.

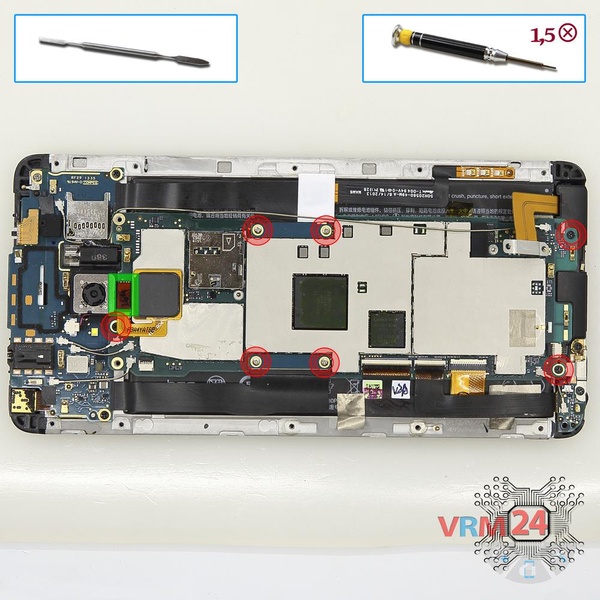

How to disassemble HTC One Max, Step 6/1 How to disassemble HTC One Max, Step 6/2

Step 6.

Using a screwdriver (hex T5), unscrew 7 bolts and remove the fingerprint sensor.

How to disassemble HTC One Max, Step 7/1 How to disassemble HTC One Max, Step 7/2 How to disassemble HTC One Max, Step 7/3 How to disassemble HTC One Max, Step 7/4 How to disassemble HTC One Max, Step 7/5

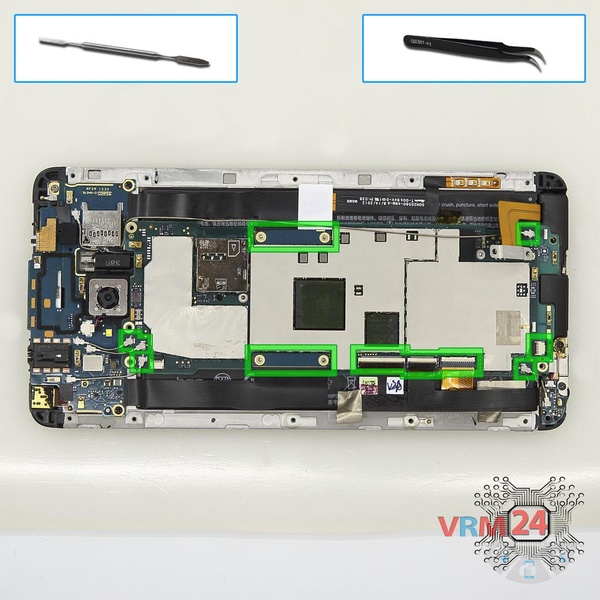

Step 7.

Disconnect connectors on the PCB.

How to disassemble HTC One Max, Step 8/1 How to disassemble HTC One Max, Step 8/2

Step 8.

Remove the PCB.

How to disassemble HTC One Max, Step 9/1 How to disassemble HTC One Max, Step 9/2

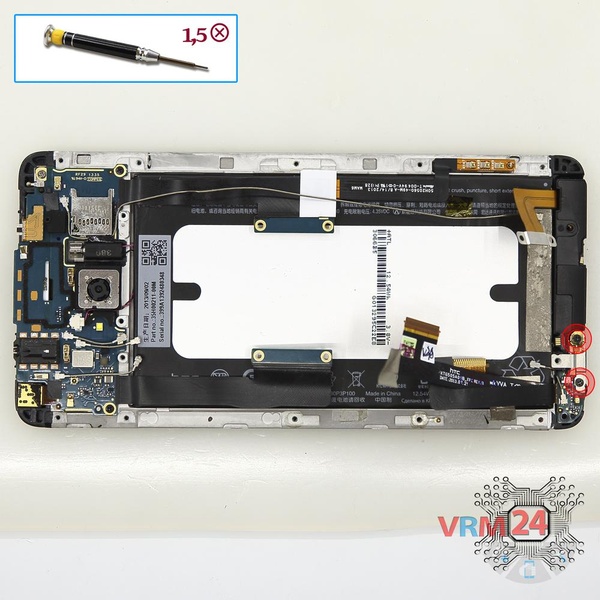

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the board.

How to disassemble HTC One Max, Step 10/1 How to disassemble HTC One Max, Step 10/2

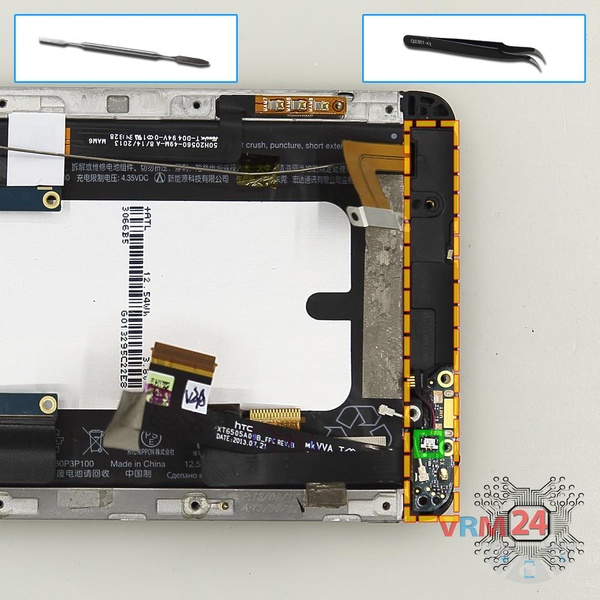

Step 10.

Remove the the buzzer (speaker) assembly & lower PCB.

How to disassemble HTC One Max, Step 11/1 How to disassemble HTC One Max, Step 11/2

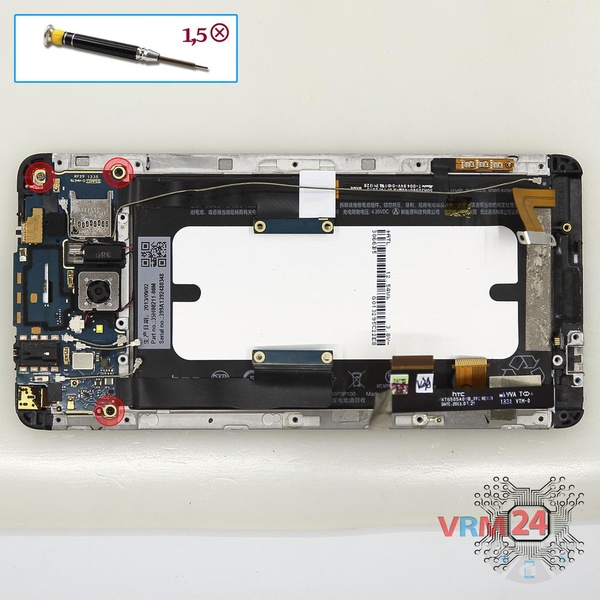

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the upper PCB.

How to disassemble HTC One Max, Step 12/1 How to disassemble HTC One Max, Step 12/2 How to disassemble HTC One Max, Step 12/3

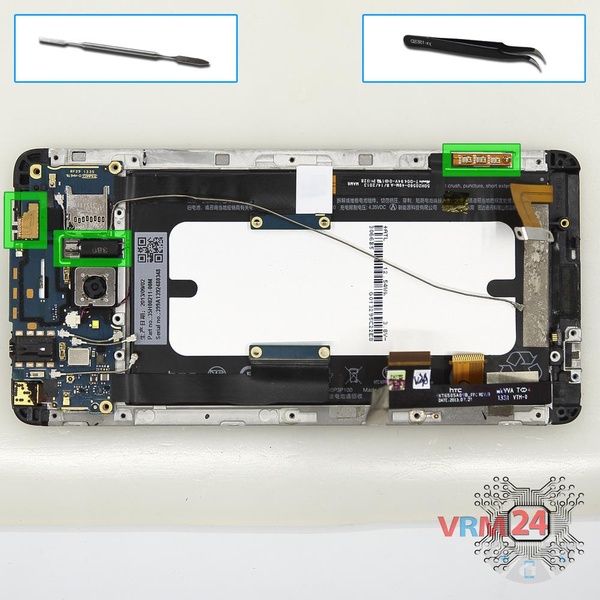

Step 12.

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble HTC One Max, Step 13/1 How to disassemble HTC One Max, Step 13/2

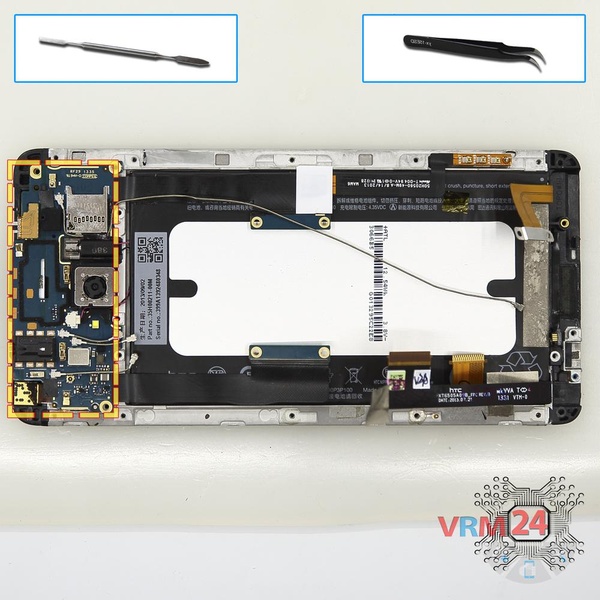

Step 13.

Remove the PCB.

How to disassemble HTC One Max, Step 14/1 How to disassemble HTC One Max, Step 14/2 How to disassemble HTC One Max, Step 14/3 How to disassemble HTC One Max, Step 14/4

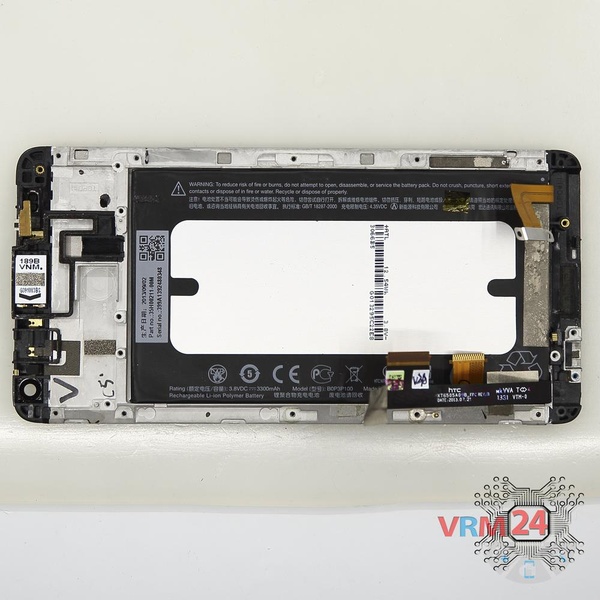

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of HTC One Max in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC One Max
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 14 minutes in time.
Our manual is suitable for all models HTC One Max — HTC One Max OP3P510 released for markets in different countries.
