Teardown difficulty:
Moderate
Duration:
10 min

Recommended tools

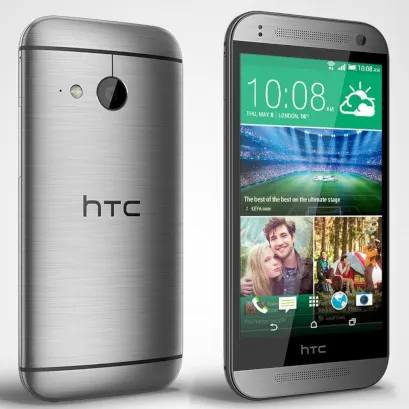

Disassembly/Repair of the mobile device HTC One Mini 2 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC One Mini 2, Step 1/1 How to disassemble HTC One Mini 2, Step 1/2

Step 1.

Using the key tool, open the SIM card and MMC card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble HTC One Mini 2, Step 2/1

Step 2.

Unstick the cover.


How to disassemble HTC One Mini 2, Step 3/1 How to disassemble HTC One Mini 2, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 1 bolt.


How to disassemble HTC One Mini 2, Step 4/1

Step 4.

Open the back cover.


How to disassemble HTC One Mini 2, Step 5/1 How to disassemble HTC One Mini 2, Step 5/2

Step 5.

Using a screwdriver (hex T5), unscrew 8 bolts.


How to disassemble HTC One Mini 2, Step 6/1 How to disassemble HTC One Mini 2, Step 6/2 How to disassemble HTC One Mini 2, Step 6/3 How to disassemble HTC One Mini 2, Step 6/4 How to disassemble HTC One Mini 2, Step 6/5 How to disassemble HTC One Mini 2, Step 6/6 How to disassemble HTC One Mini 2, Step 6/7

Step 6.

Disconnect connectors and remove the buzzer (speaker) assembly & coaxial cable.


How to disassemble HTC One Mini 2, Step 7/1 How to disassemble HTC One Mini 2, Step 7/2 How to disassemble HTC One Mini 2, Step 7/3 How to disassemble HTC One Mini 2, Step 7/4

Step 7.

Disconnect connectors and remove the board with inter-board cable.


How to disassemble HTC One Mini 2, Step 8/1 How to disassemble HTC One Mini 2, Step 8/2 How to disassemble HTC One Mini 2, Step 8/3 How to disassemble HTC One Mini 2, Step 8/4

Step 8.

Disconnect connectors on the PCB and remove it.


How to disassemble HTC One Mini 2, Step 9/1 How to disassemble HTC One Mini 2, Step 9/2 How to disassemble HTC One Mini 2, Step 9/3 How to disassemble HTC One Mini 2, Step 9/4 How to disassemble HTC One Mini 2, Step 9/5

Step 9.

Disconnect connectors and remove the inter-board cables.


How to disassemble HTC One Mini 2, Step 10/1 How to disassemble HTC One Mini 2, Step 10/2

Step 10.

Lift and remove the battery.


How to disassemble HTC One Mini 2, Step 11/1 How to disassemble HTC One Mini 2, Step 11/2 How to disassemble HTC One Mini 2, Step 11/3

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the upper board.


How to disassemble HTC One Mini 2, Step 12/1 How to disassemble HTC One Mini 2, Step 12/2 How to disassemble HTC One Mini 2, Step 12/3 How to disassemble HTC One Mini 2, Step 12/4

Step 12.

Pry and remove the speaker assembly.


How to disassemble HTC One Mini 2, Step 13/1 How to disassemble HTC One Mini 2, Step 13/2 How to disassemble HTC One Mini 2, Step 13/3

Step 13.

Disconnect connector on the PCB and remove the main camera.


How to disassemble HTC One Mini 2, Step 14/1 How to disassemble HTC One Mini 2, Step 14/2 How to disassemble HTC One Mini 2, Step 14/3

Step 14.

Remove the PCB.


How to disassemble HTC One Mini 2, Step 15/1 How to disassemble HTC One Mini 2, Step 15/2 How to disassemble HTC One Mini 2, Step 15/3 How to disassemble HTC One Mini 2, Step 15/4 How to disassemble HTC One Mini 2, Step 15/5 How to disassemble HTC One Mini 2, Step 15/6 How to disassemble HTC One Mini 2, Step 15/7

Step 15.

Remove the on / off button (on the left or 1), the volume buttons (below or 3) and take off the vibration motor (2).


How to disassemble HTC One Mini 2, Step 16/1 How to disassemble HTC One Mini 2, Step 16/2 How to disassemble HTC One Mini 2, Step 16/3 How to disassemble HTC One Mini 2, Step 16/4 How to disassemble HTC One Mini 2, Step 16/5

Step 16.

(1) Speaker (2) SIM / MMC holders cable (3) touchscreen cable (4) display cable.

Detailed disassembly instructions of HTC One Mini 2 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models HTC One Mini 2 released for markets in different countries.
