HTC One SV
HTC One SV
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC One SV (HTC One SV PL80100 C520e) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HTC One SV, Step 1/1

Step 1.

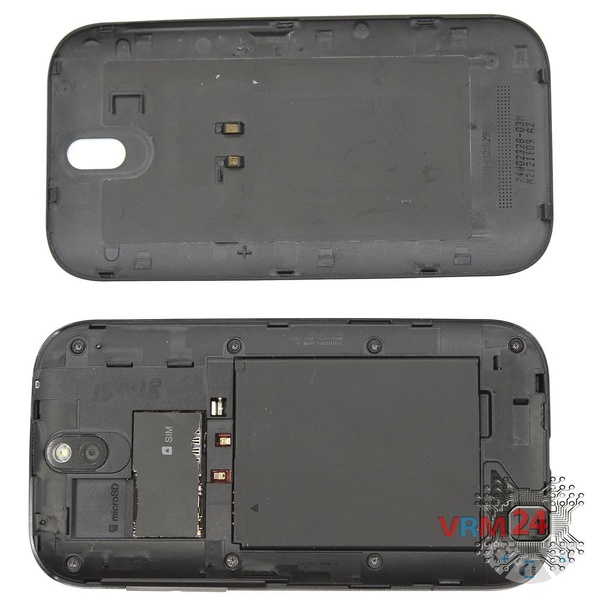

Open the back cover.

How to disassemble HTC One SV, Step 2/1

Step 2.

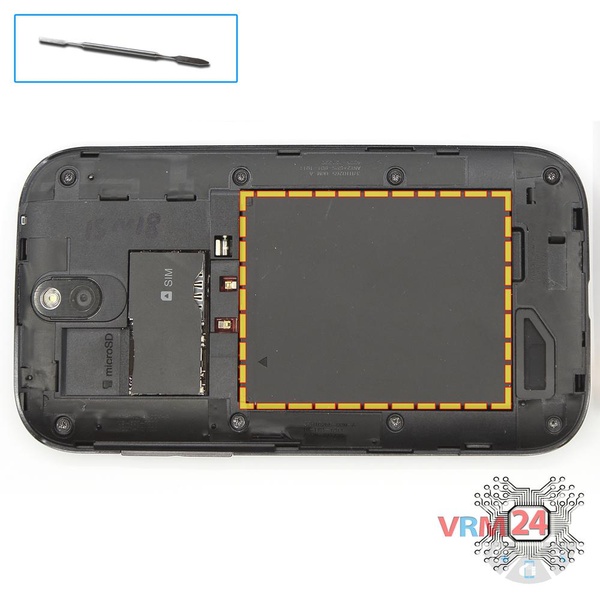

Lift and remove the battery.

How to disassemble HTC One SV, Step 3/1 How to disassemble HTC One SV, Step 3/2

Step 3.

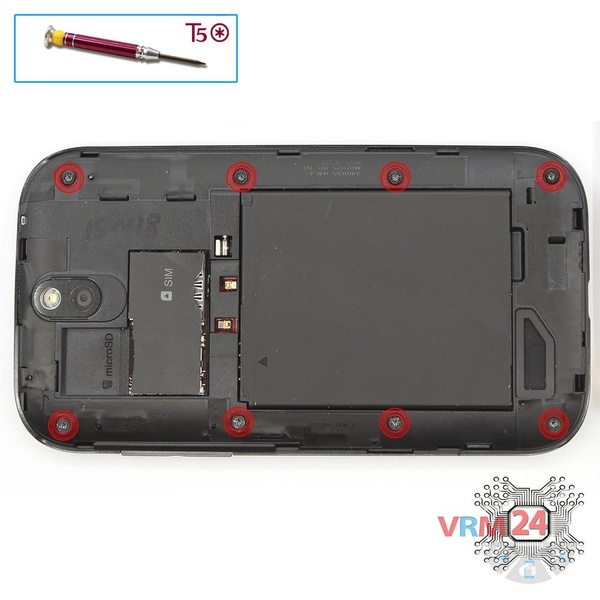

Using a screwdriver (hex T5), unscrew 8 bolts in the frame of the phone.

How to disassemble HTC One SV, Step 4/1

Step 4.

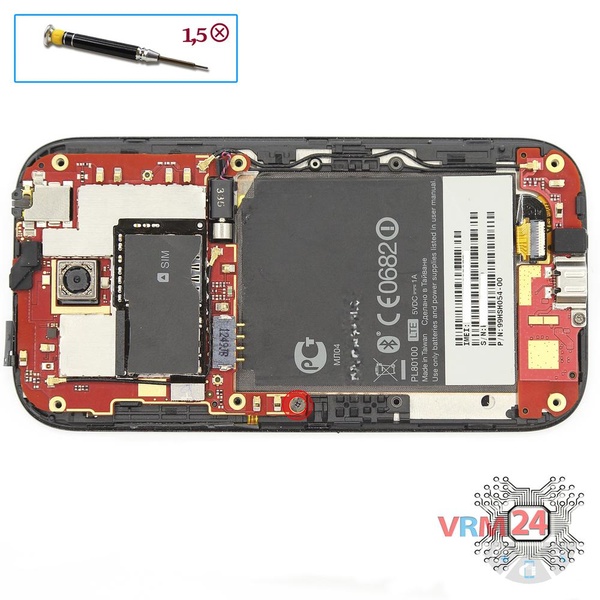

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble HTC One SV, Step 5/1 How to disassemble HTC One SV, Step 5/2

Step 5.

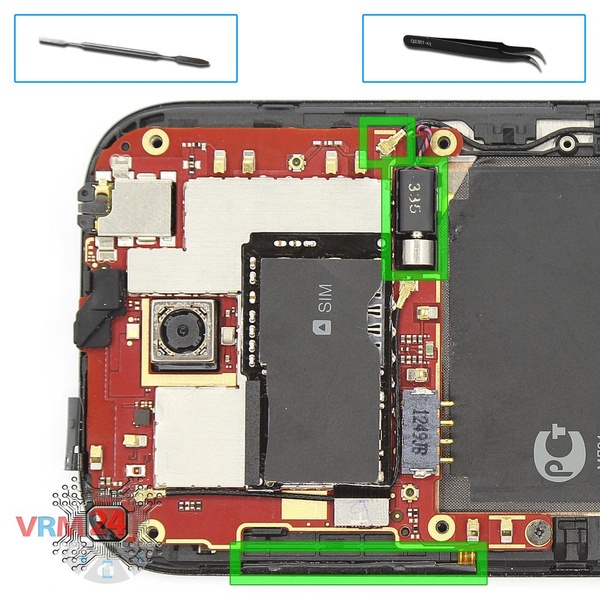

Disconnect the connector of the coaxial cable and pry up vibration motor & power & volume buttons flex cable.

How to disassemble HTC One SV, Step 6/1 How to disassemble HTC One SV, Step 6/2 How to disassemble HTC One SV, Step 6/3

Step 6.

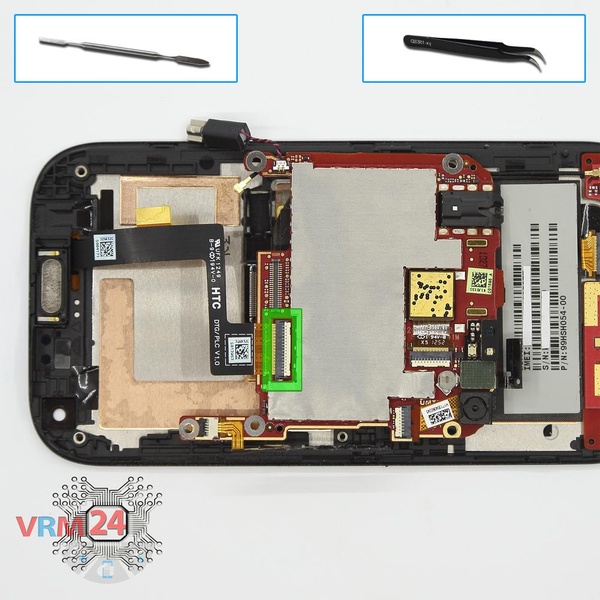

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble HTC One SV, Step 7/1 How to disassemble HTC One SV, Step 7/2

Step 7.

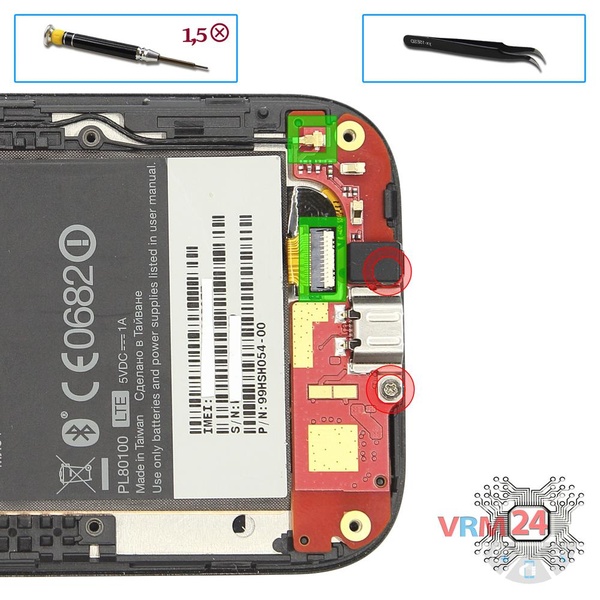

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 bolts on the lower PCB, disconnect the connectors and remove the board and the charging connector holder and microphone cover.

How to disassemble HTC One SV, Step 8/1

Step 8.

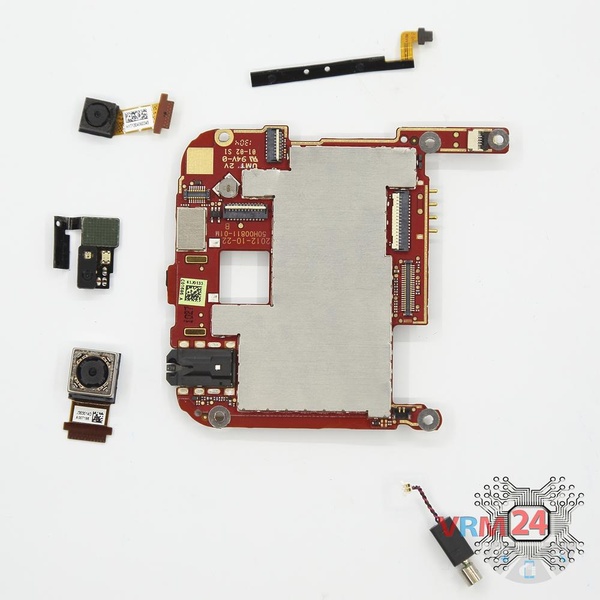

Disconnect the connectors on the PCB and remove the main and front  (selfie) camera, volume buttons flex cable, power button flex cable, and vibration motor.

How to disassemble HTC One SV, Step 9/1 How to disassemble HTC One SV, Step 9/2 How to disassemble HTC One SV, Step 9/3

Step 9.

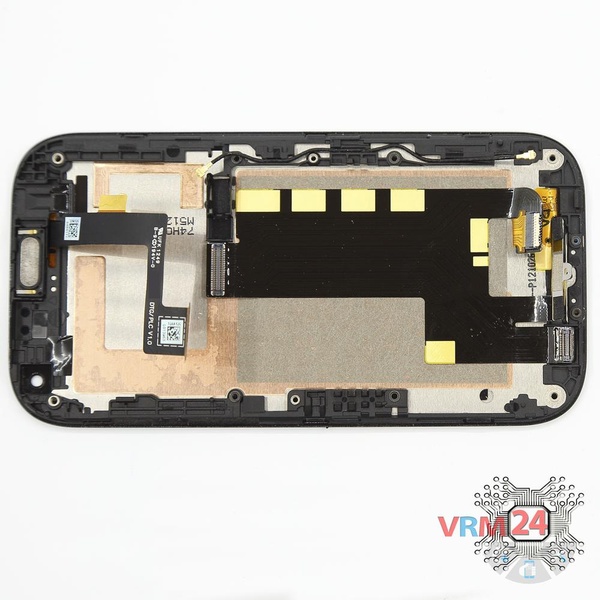

Parts in the frame of the display module.

Detailed disassembly instructions of HTC One SV in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC One SV
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models HTC One SV — HTC One SV PL80100 C520e released for markets in different countries.
