Teardown difficulty:
Moderate
Duration:
17 min

Recommended tools

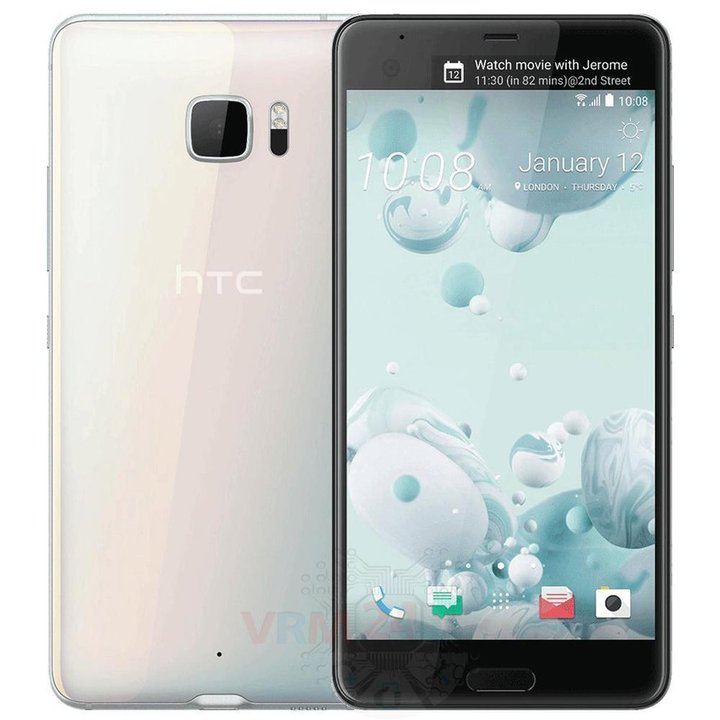

Disassembly/Repair of the mobile device HTC U Ultra (HTC U Ultra (U-1u) 2PZF200) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble HTC U Ultra, Step 1/1 How to disassemble HTC U Ultra, Step 1/2

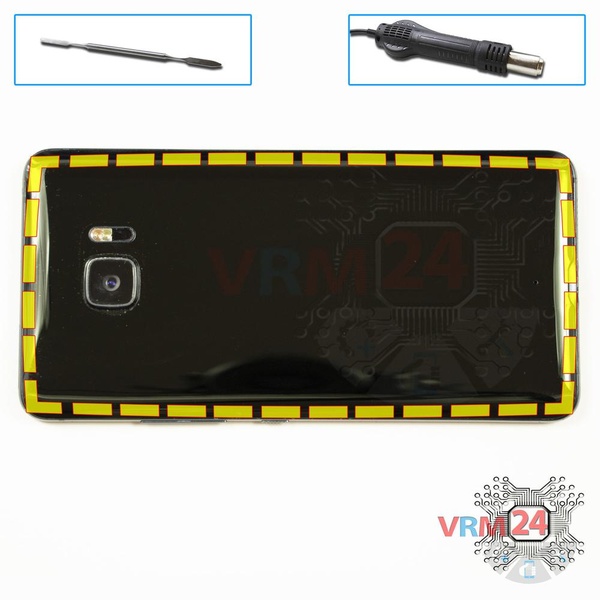

Step 1.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble HTC U Ultra, Step 2/1 How to disassemble HTC U Ultra, Step 2/2

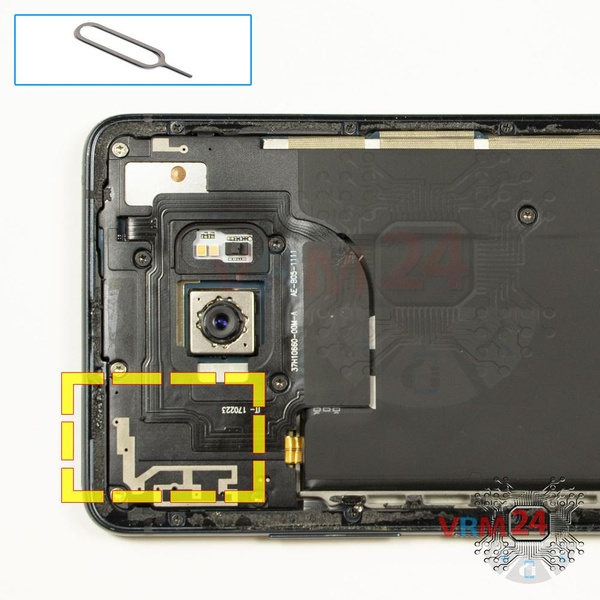

Step 2.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble HTC U Ultra, Step 3/1 How to disassemble HTC U Ultra, Step 3/2

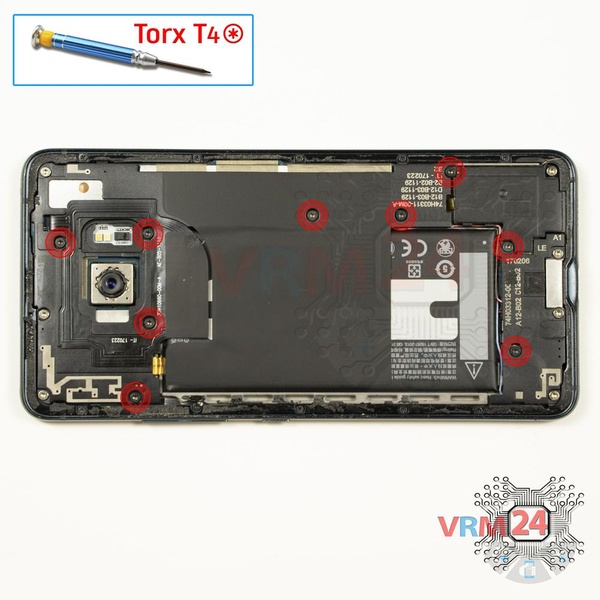

Step 3.

Using a screwdriver (Torx T4), unscrew 9 screws.

How to disassemble HTC U Ultra, Step 4/1 How to disassemble HTC U Ultra, Step 4/2

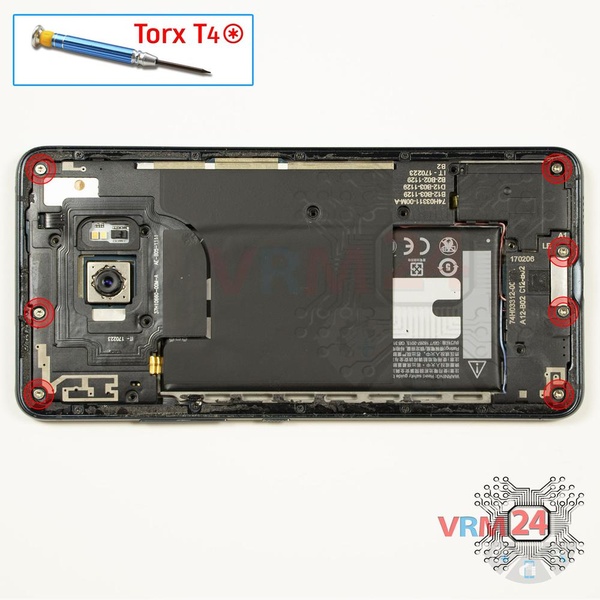

Step 4.

Using a screwdriver (Torx T4), unscrew 7 long screws.

How to disassemble HTC U Ultra, Step 5/1 How to disassemble HTC U Ultra, Step 5/2

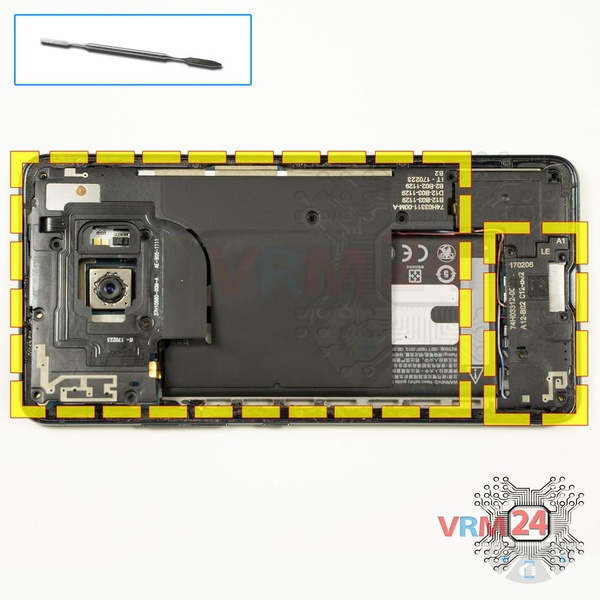

Step 5.

Open the covers hiding the main and daughter/sub PCB.

How to disassemble HTC U Ultra, Step 6/1 How to disassemble HTC U Ultra, Step 6/2

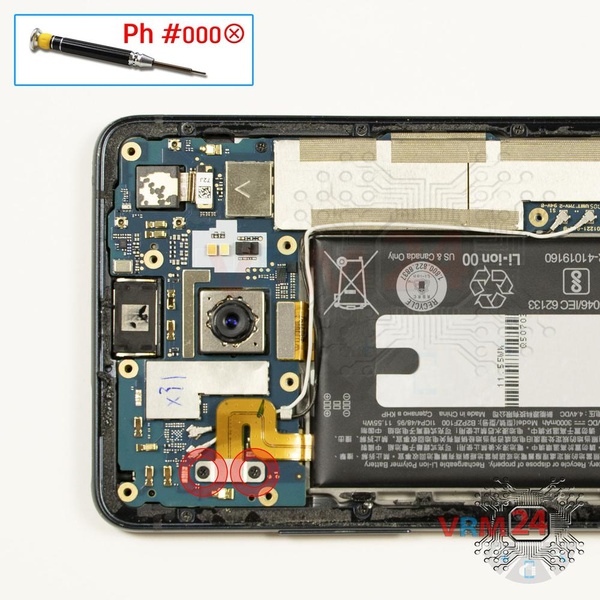

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws securing the battery connector.

How to disassemble HTC U Ultra, Step 7/1 How to disassemble HTC U Ultra, Step 7/2

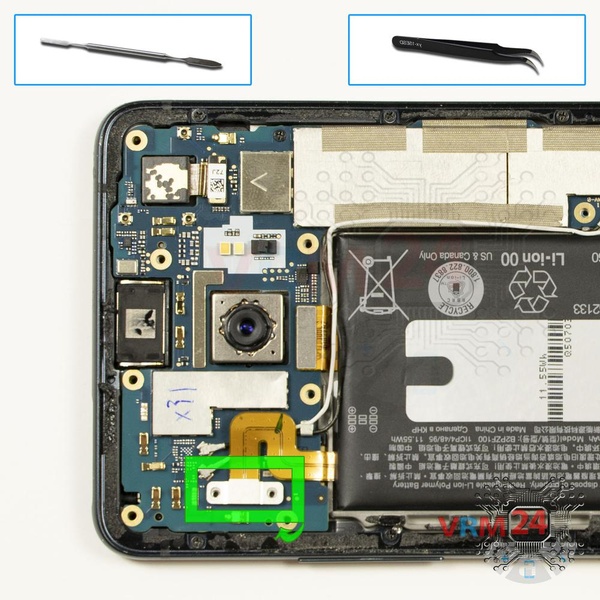

Step 7.

Disconnect the battery connector. The battery model of HTC U Ultra is B2PZF100.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble HTC U Ultra, Step 8/1 How to disassemble HTC U Ultra, Step 8/2

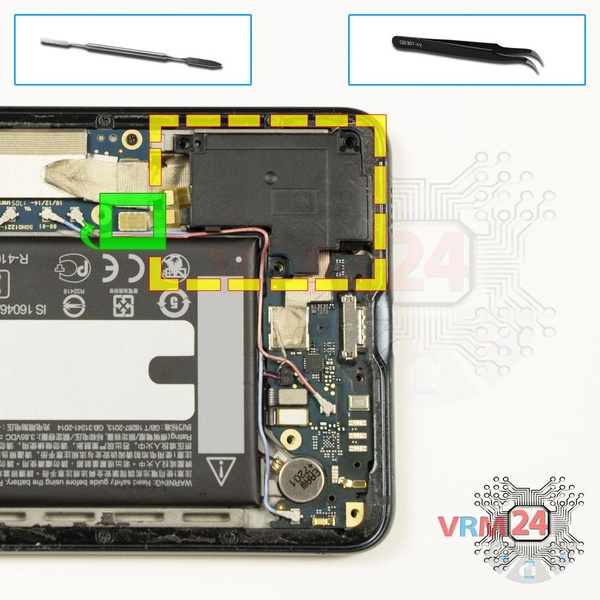

Step 8.

Disconnect the connector and remove the buzzer (loudspeaker) assembly.

How to disassemble HTC U Ultra, Step 9/1 How to disassemble HTC U Ultra, Step 9/2

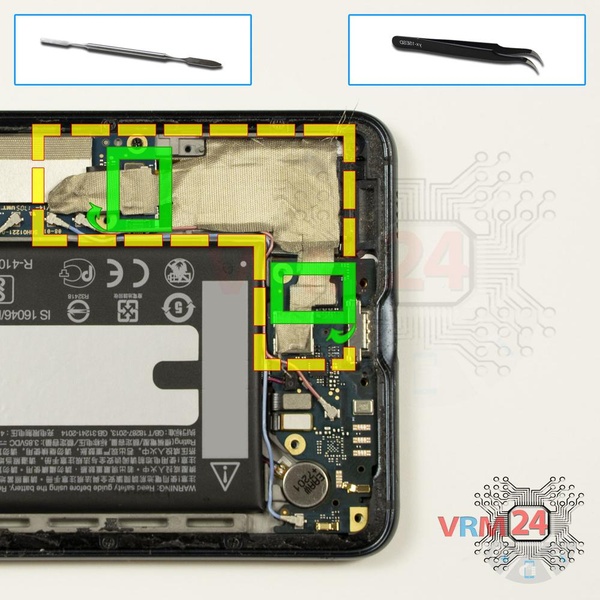

Step 9.

Disconnect connectors and remove the inter-board cable.

How to disassemble HTC U Ultra, Step 10/1 How to disassemble HTC U Ultra, Step 10/2

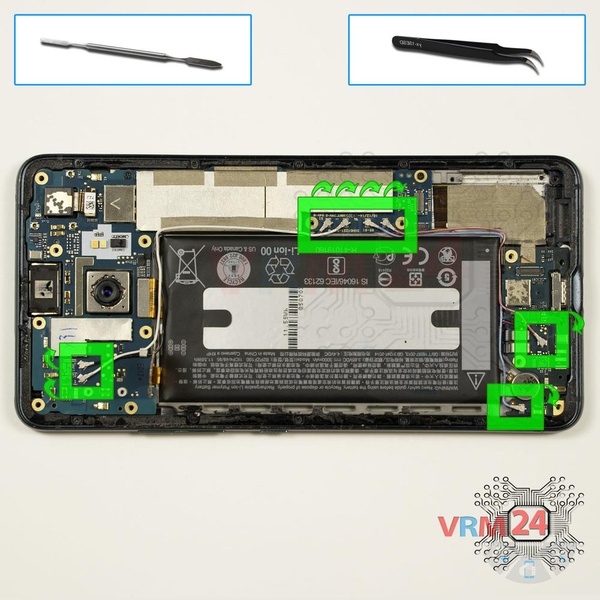

Step 10.

Disconnect connectors and remove the coaxial cables.

How to disassemble HTC U Ultra, Step 11/1 How to disassemble HTC U Ultra, Step 11/2

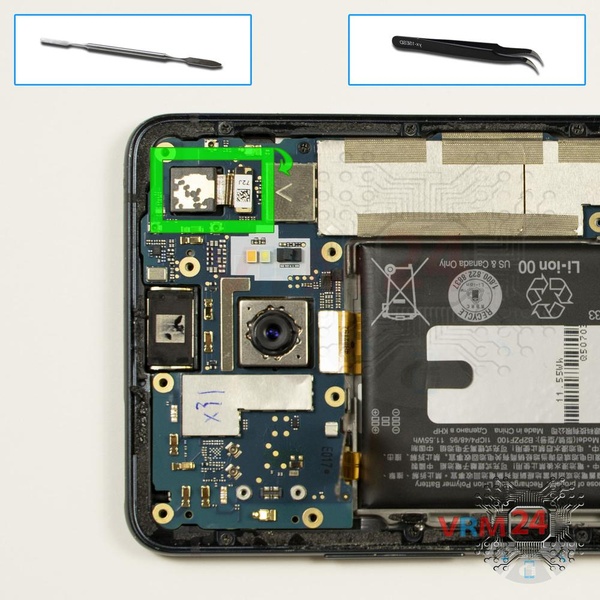

Step 11.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble HTC U Ultra, Step 12/1 How to disassemble HTC U Ultra, Step 12/2

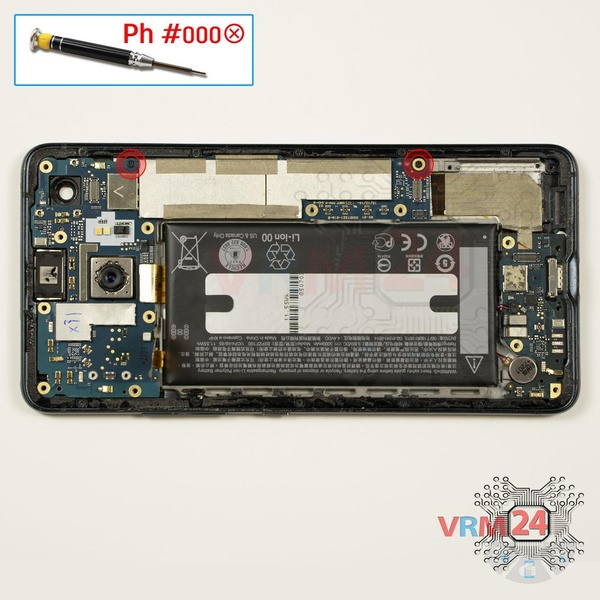

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws in the PCB.

How to disassemble HTC U Ultra, Step 13/1 How to disassemble HTC U Ultra, Step 13/2

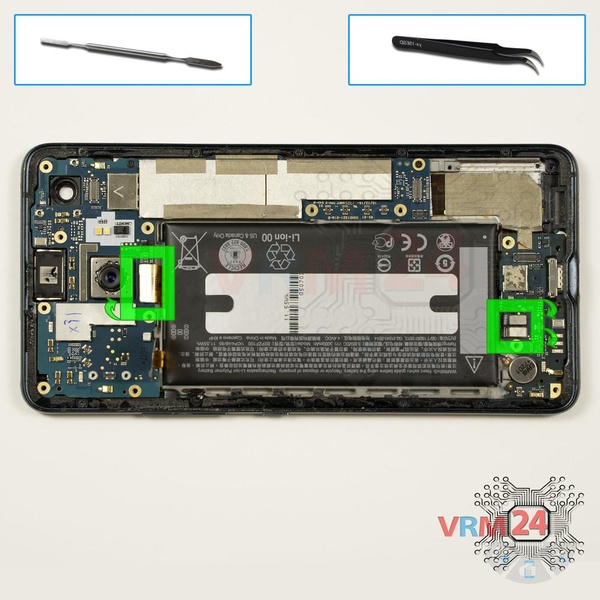

Step 13.

Disconnect the connectors on the PCBs.

How to disassemble HTC U Ultra, Step 14/1 How to disassemble HTC U Ultra, Step 14/2

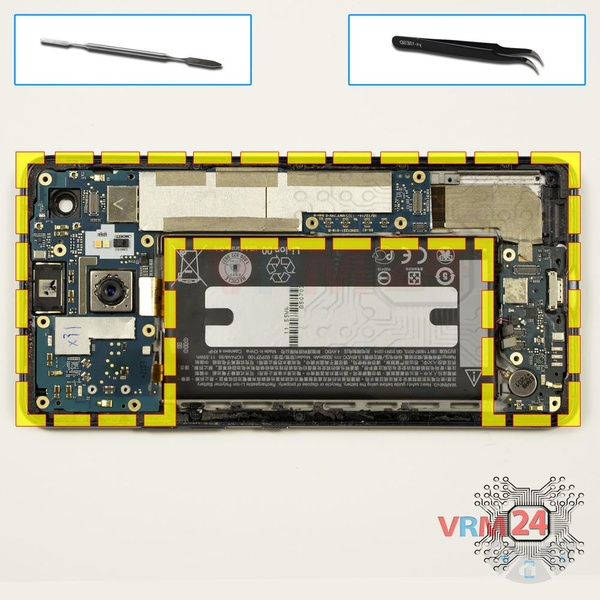

Step 14.

Remove the PCBs.

How to disassemble HTC U Ultra, Step 15/1 How to disassemble HTC U Ultra, Step 15/2

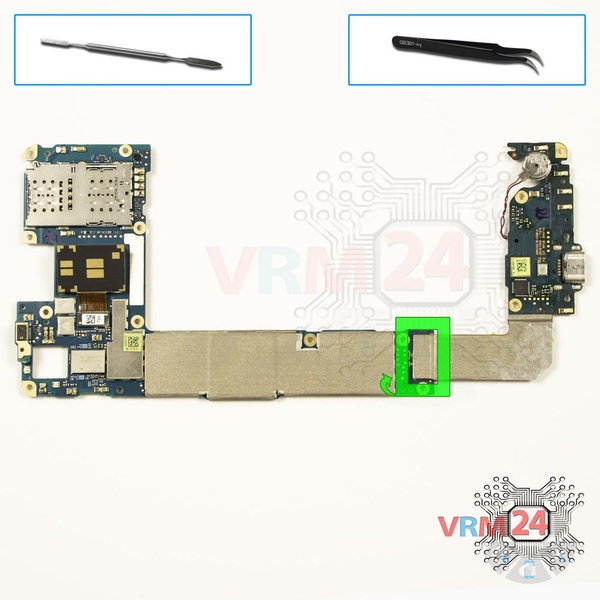

Step 15.

Pry up the connector and separate the PCBs.

How to disassemble HTC U Ultra, Step 16/1 How to disassemble HTC U Ultra, Step 16/2

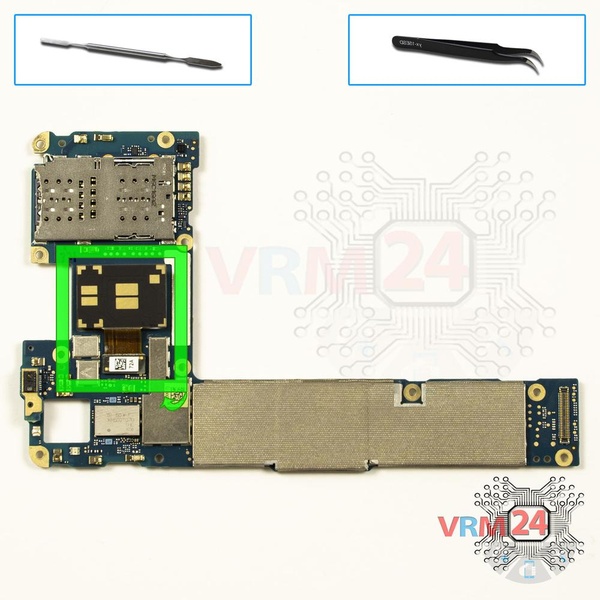

Step 16.

Disconnect the connector on PCB, and remove the main camera.

Detailed disassembly instructions of HTC U Ultra in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 17 minutes in time.
Our manual is suitable for all models HTC U Ultra — HTC U Ultra (U-1u) 2PZF200 released for markets in different countries.
