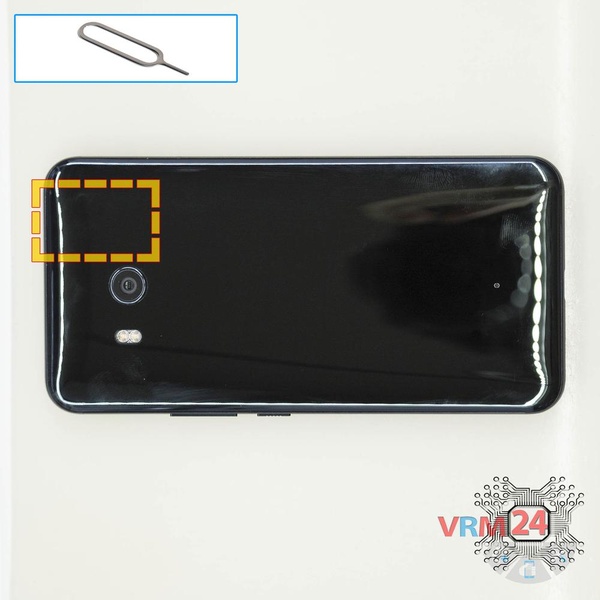

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble HTC U11, Step 2/1 How to disassemble HTC U11, Step 2/2

Step 2.

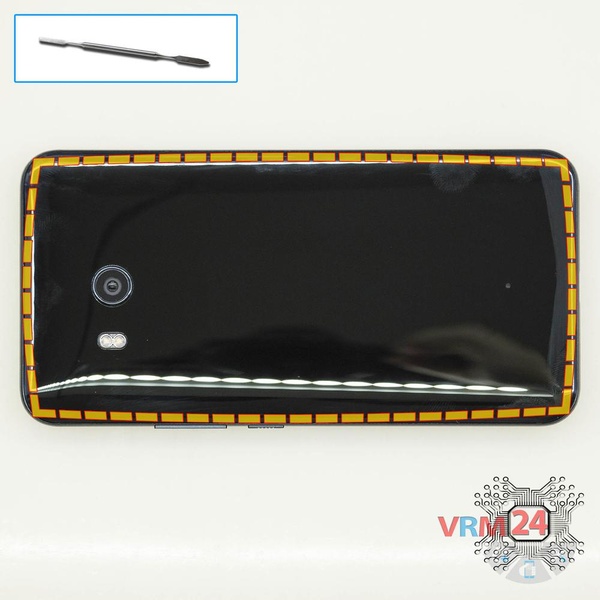

Open the back cover.


How to disassemble HTC U11, Step 3/1 How to disassemble HTC U11, Step 3/2

Step 3.

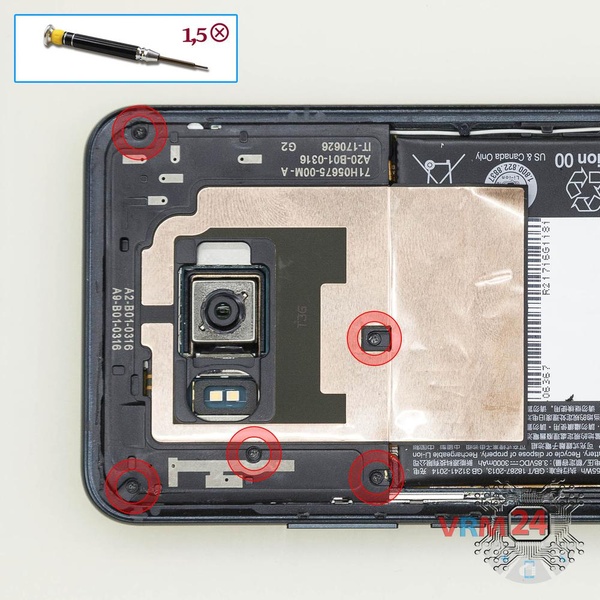

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.


How to disassemble HTC U11, Step 4/1 How to disassemble HTC U11, Step 4/2

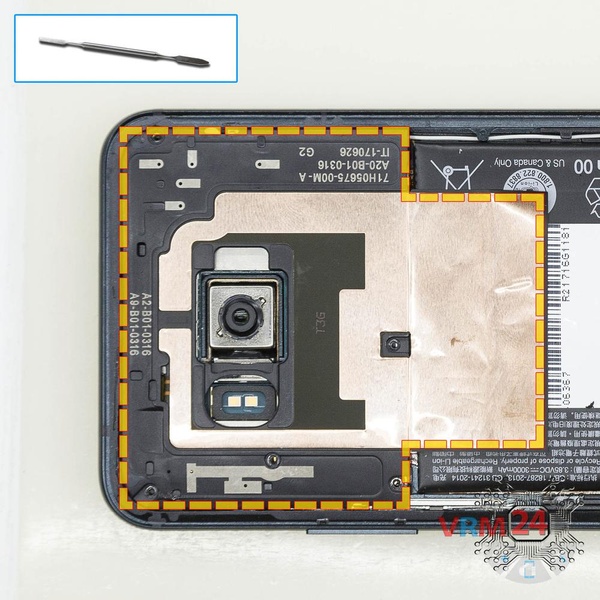

Step 4.

Remove the cover hiding the main board.


How to disassemble HTC U11, Step 5/1 How to disassemble HTC U11, Step 5/2 How to disassemble HTC U11, Step 5/3

Step 5.

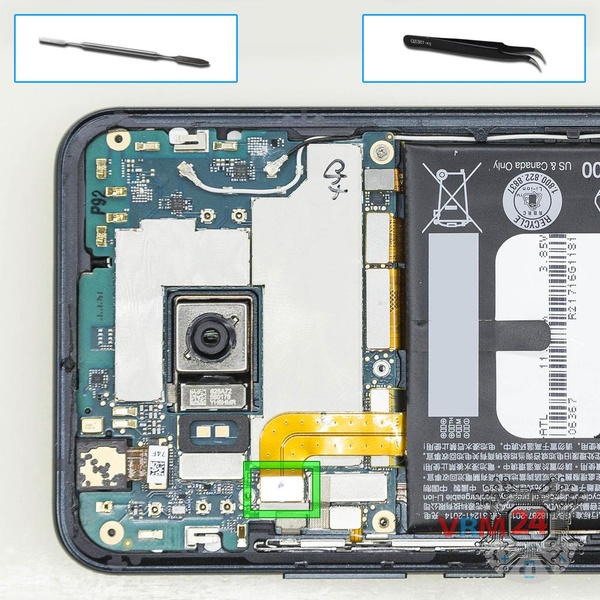

Disconnect the battery connector. The battery model of HTC U11 2pzc300 is B2PZC100.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble HTC U11, Step 6/1 How to disassemble HTC U11, Step 6/2

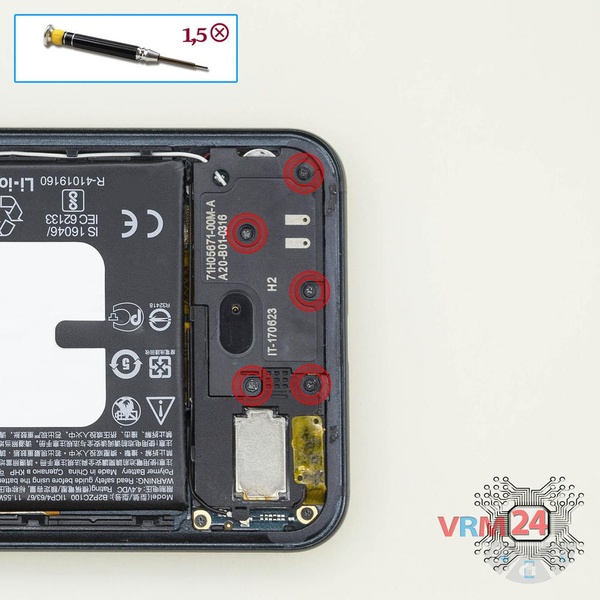

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.


How to disassemble HTC U11, Step 7/1 How to disassemble HTC U11, Step 7/2

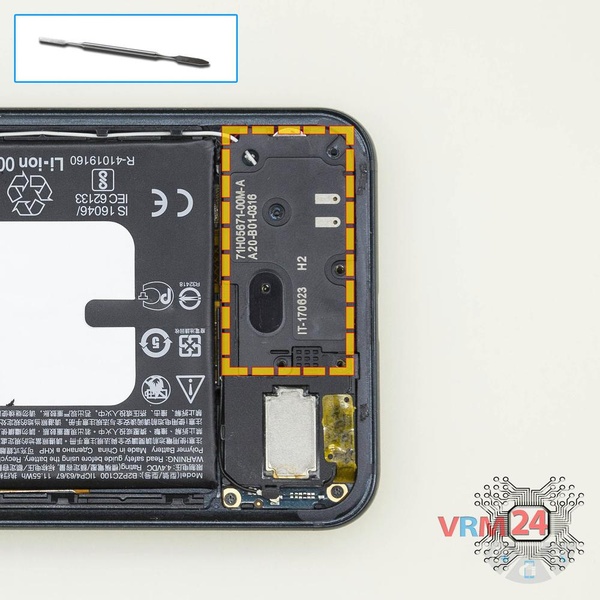

Step 7.

Remove the cover hiding the daughterboard.


How to disassemble HTC U11, Step 8/1 How to disassemble HTC U11, Step 8/2

Step 8.

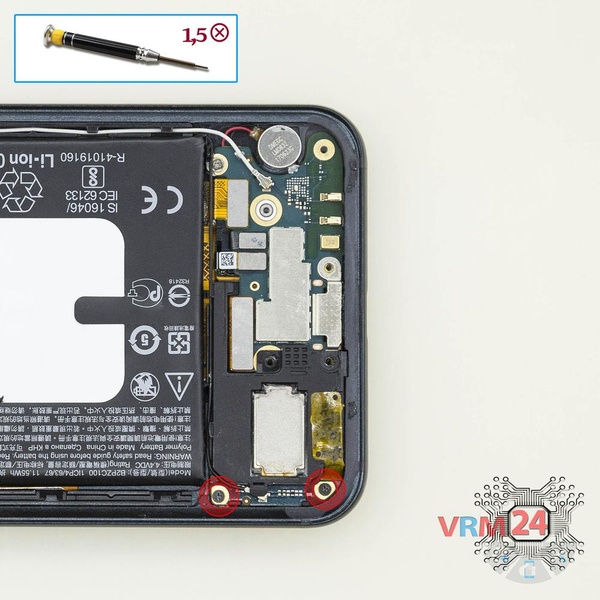

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the small antenna board.


How to disassemble HTC U11, Step 9/1 How to disassemble HTC U11, Step 9/2

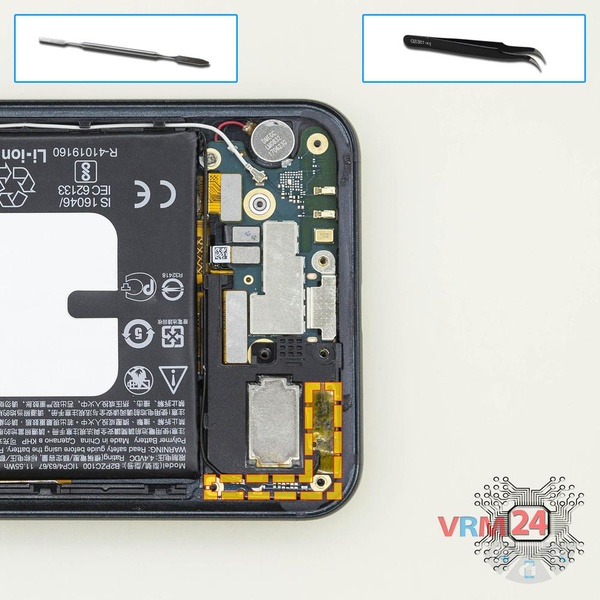

Step 9.

Lift the small board.


How to disassemble HTC U11, Step 10/1 How to disassemble HTC U11, Step 10/2

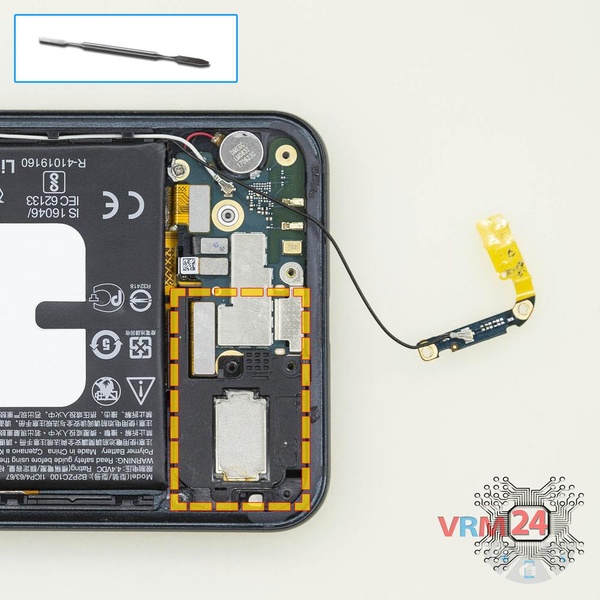

Step 10.

Pry and remove the buzzer (speaker) assembly.


How to disassemble HTC U11, Step 11/1 How to disassemble HTC U11, Step 11/2 How to disassemble HTC U11, Step 11/3

Step 11.

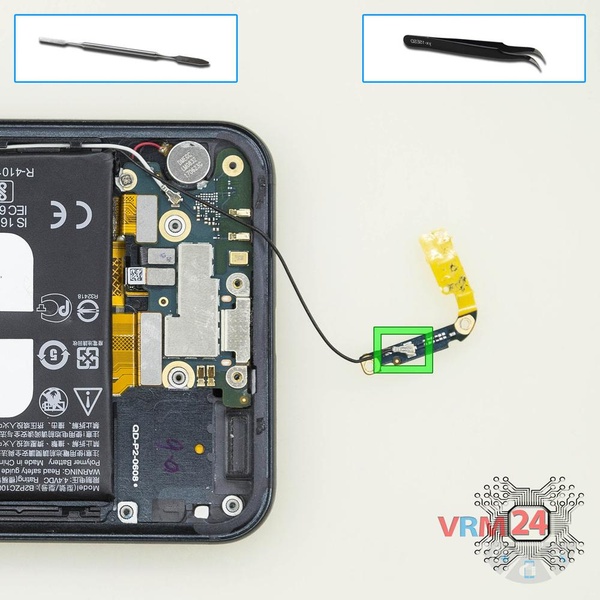

Pry up the coaxial cable on the small board.


How to disassemble HTC U11, Step 12/1 How to disassemble HTC U11, Step 12/2 How to disassemble HTC U11, Step 12/3

Step 12.

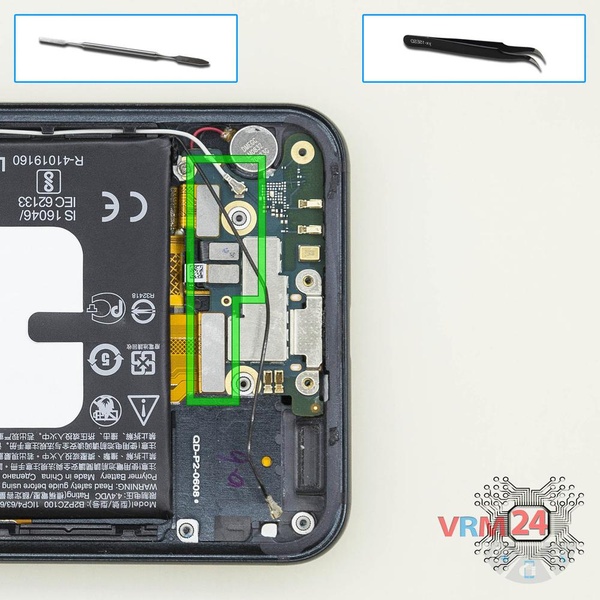

Disconnect connectors on the daughterboard.


How to disassemble HTC U11, Step 13/1 How to disassemble HTC U11, Step 13/2

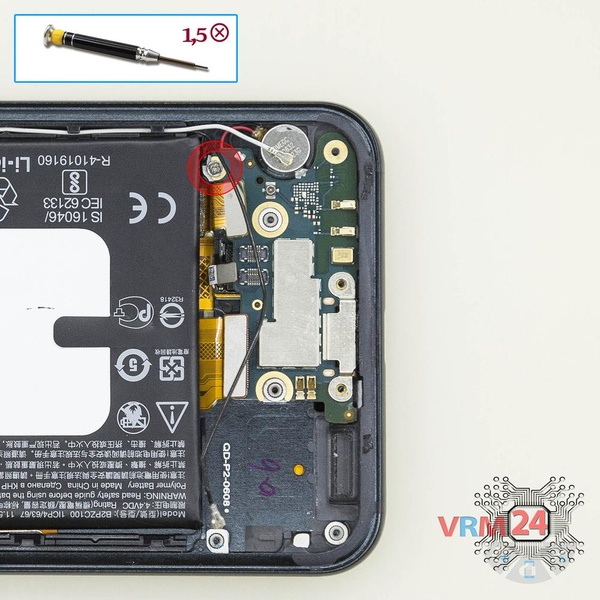

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the daughter board.


How to disassemble HTC U11, Step 14/1 How to disassemble HTC U11, Step 14/2

Step 14.

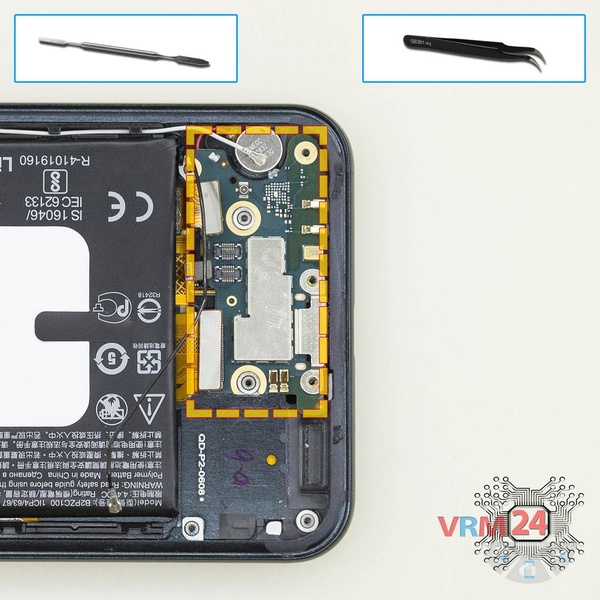

Remove the daughterboard, also known as sub-board.


How to disassemble HTC U11, Step 15/1 How to disassemble HTC U11, Step 15/2 How to disassemble HTC U11, Step 15/3

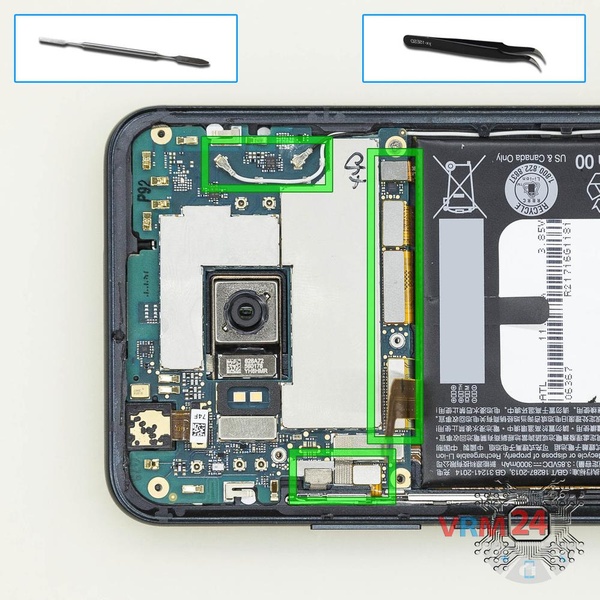

Step 15.

Disconnect connectors on the PCB.


How to disassemble HTC U11, Step 16/1 How to disassemble HTC U11, Step 16/2

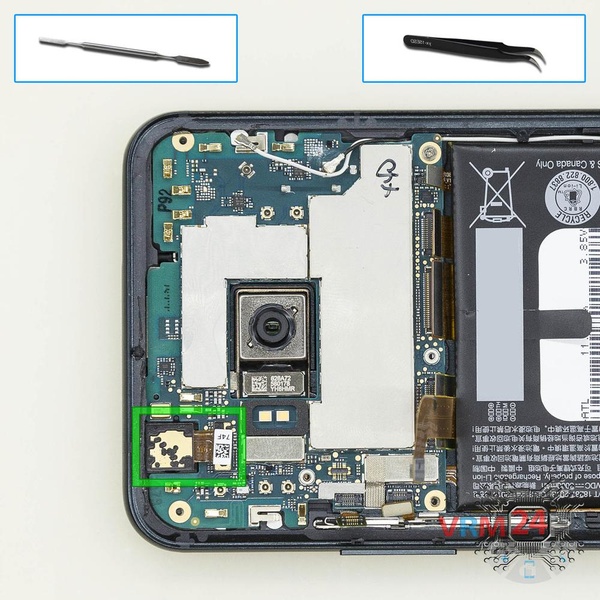

Step 16.

Disconnect the connector on PCB, and remove the front (selfie) camera.


How to disassemble HTC U11, Step 17/1 How to disassemble HTC U11, Step 17/2

Step 17.

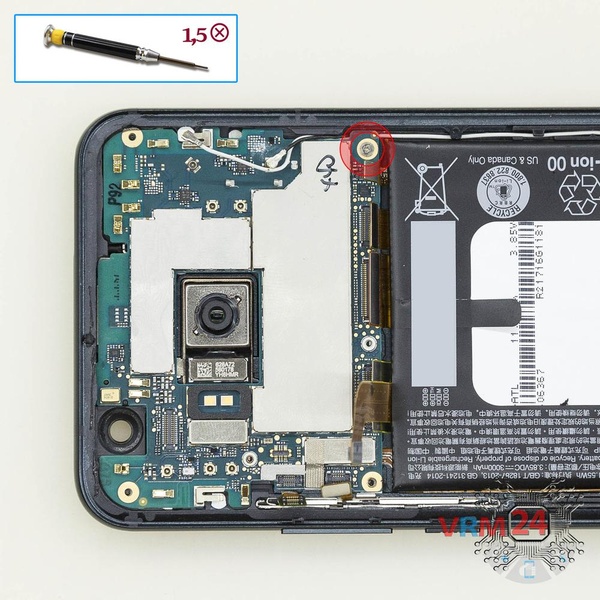

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble HTC U11, Step 18/1 How to disassemble HTC U11, Step 18/2

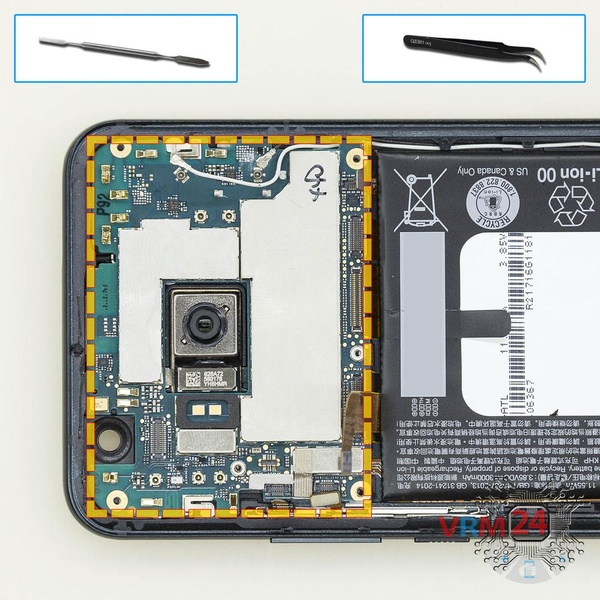

Step 18.

Remove the PCB.


How to disassemble HTC U11, Step 19/1 How to disassemble HTC U11, Step 19/2

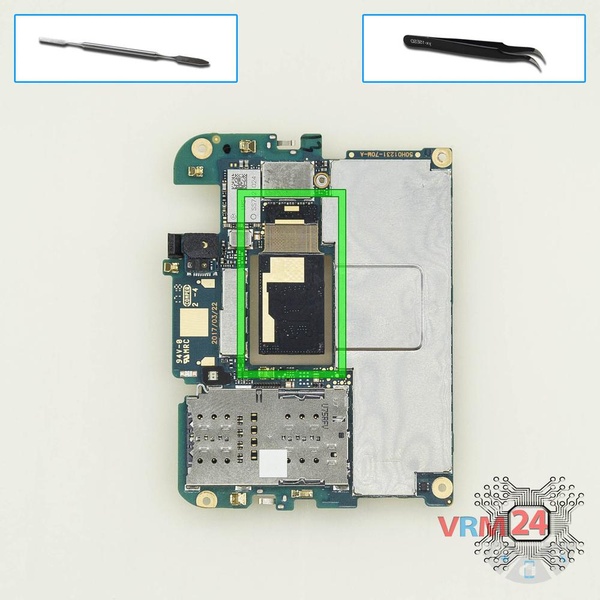

Step 19.

Disconnect the connector on PCB, and remove the main camera.
