Huawei Ascend G510
Huawei Ascend G510
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend G510 (Huawei Ascend G510 0200) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Huawei Ascend G510, Step 1/1 How to disassemble Huawei Ascend G510, Step 1/2

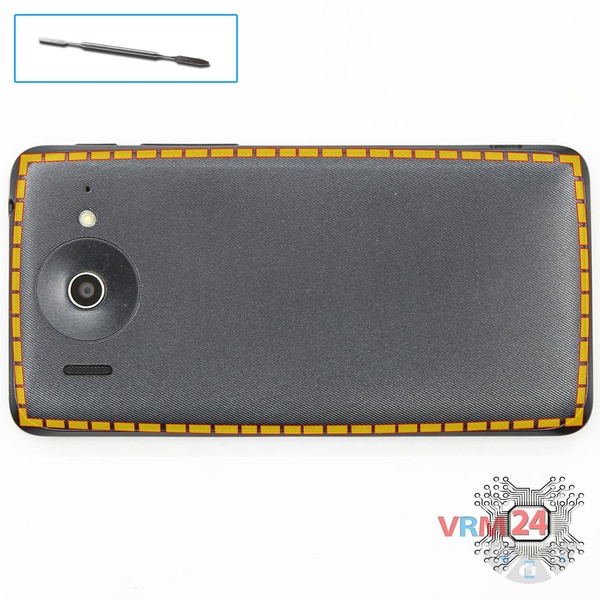

Step 1.

Open the back cover.

How to disassemble Huawei Ascend G510, Step 2/1 How to disassemble Huawei Ascend G510, Step 2/2

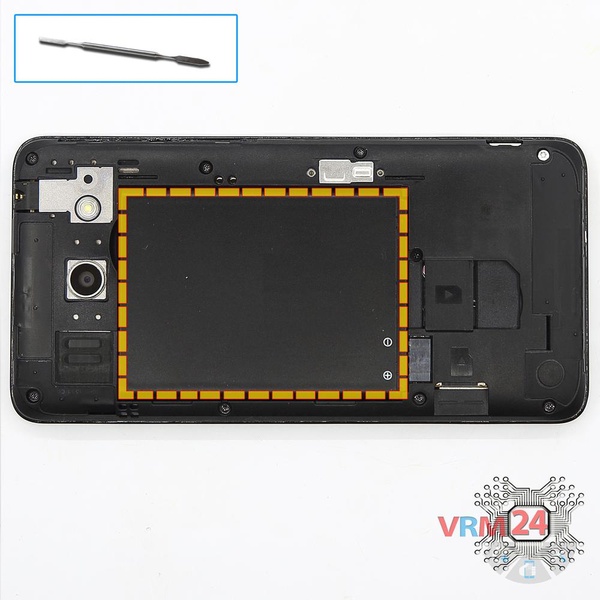

Step 2.

Lift and remove the battery.

How to disassemble Huawei Ascend G510, Step 3/1 How to disassemble Huawei Ascend G510, Step 3/2

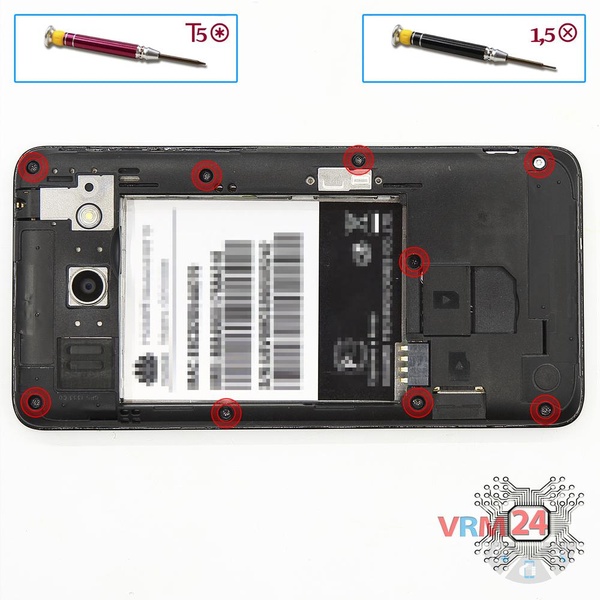

Step 3.

Using a screwdriver (hex T5), unscrew 8 bolts and a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the frame of the phone.

How to disassemble Huawei Ascend G510, Step 4/1 How to disassemble Huawei Ascend G510, Step 4/2

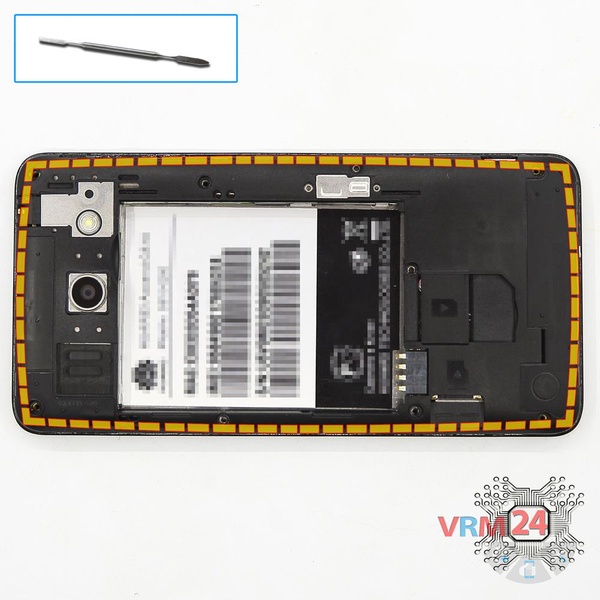

Step 4.

Pry and remove the middle frame.

How to disassemble Huawei Ascend G510, Step 5/1

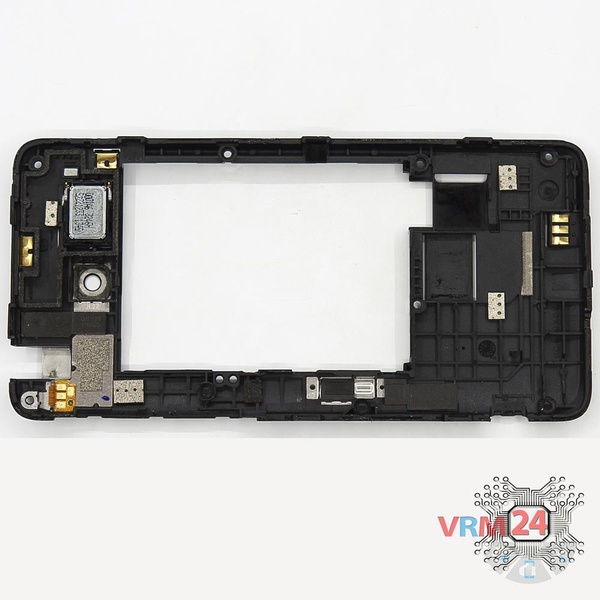

Step 5.

The middle frame.

How to disassemble Huawei Ascend G510, Step 6/1 How to disassemble Huawei Ascend G510, Step 6/2

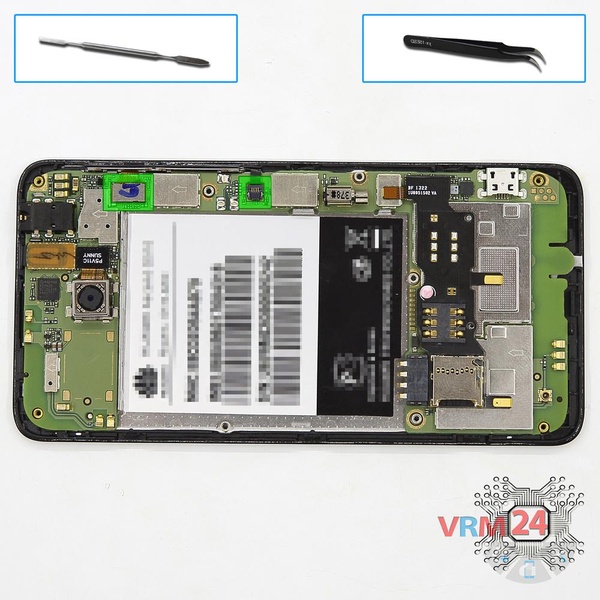

Step 6.

Disconnect connectors on the PCB.

How to disassemble Huawei Ascend G510, Step 7/1 How to disassemble Huawei Ascend G510, Step 7/2

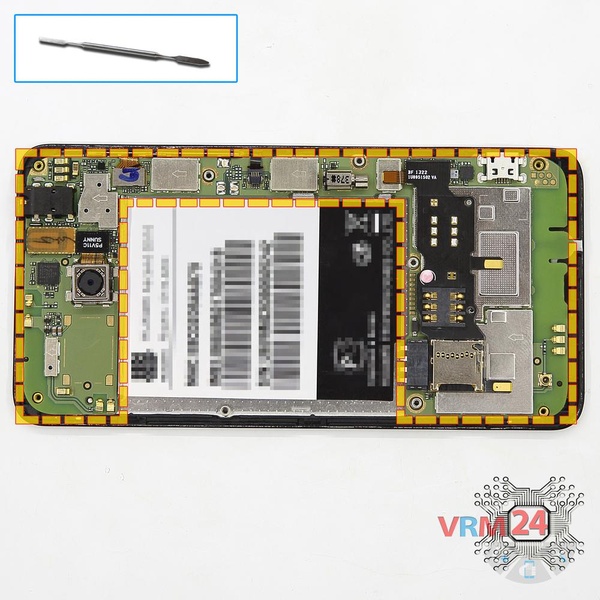

Step 7.

Remove the PCB.

How to disassemble Huawei Ascend G510, Step 8/1 How to disassemble Huawei Ascend G510, Step 8/2 How to disassemble Huawei Ascend G510, Step 8/3

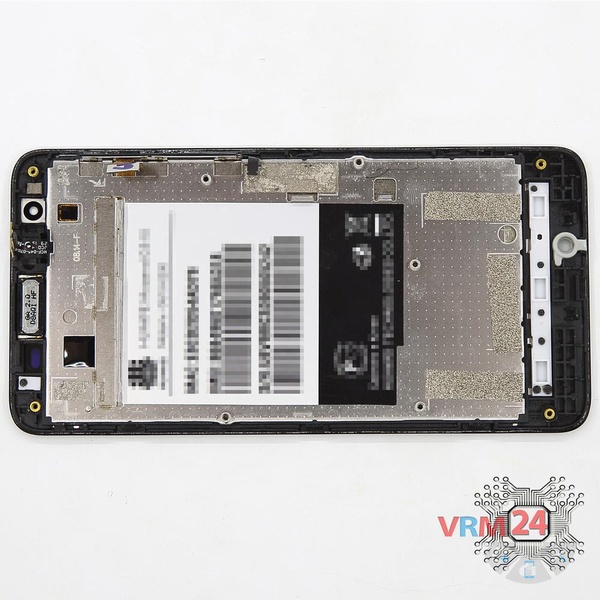

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend G510 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend G510
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Huawei Ascend G510 — Huawei Ascend G510 0200 released for markets in different countries.
