Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

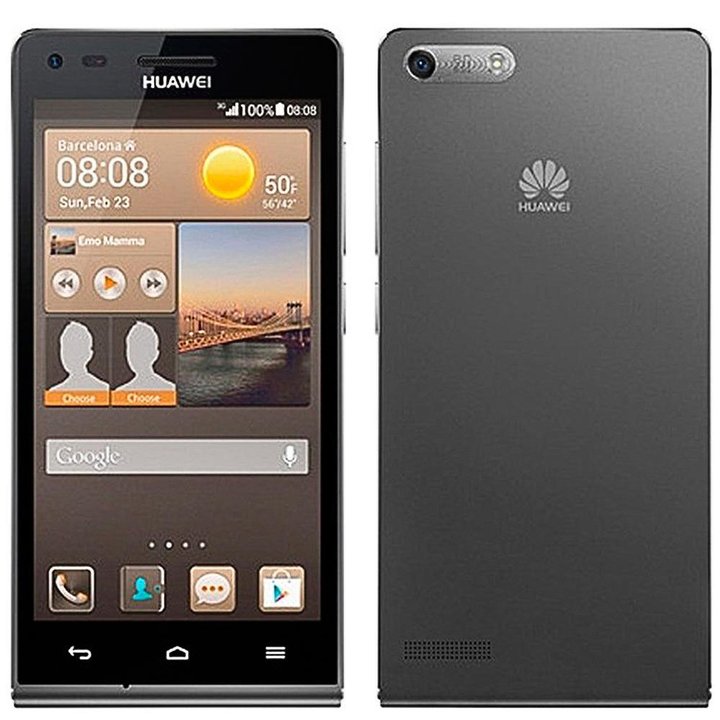

Disassembly/Repair of the mobile device Huawei Ascend G6 / G6-L11 (Huawei Ascend G6 (G6-L11)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Huawei Ascend G6 / G6-L11, Step 1/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 1/2

Step 1.

Open the back cover.


How to disassemble Huawei Ascend G6 / G6-L11, Step 2/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.


How to disassemble Huawei Ascend G6 / G6-L11, Step 3/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 3/2

Step 3.

Pry and remove the middle frame.


How to disassemble Huawei Ascend G6 / G6-L11, Step 4/1

Step 4.

The middle frame with buzzer (speaker) and vibration motor.


How to disassemble Huawei Ascend G6 / G6-L11, Step 5/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 5/2 How to disassemble Huawei Ascend G6 / G6-L11, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the battery.


How to disassemble Huawei Ascend G6 / G6-L11, Step 6/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Huawei Ascend G6 / G6-L11, Step 7/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 7/2

Step 7.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Huawei Ascend G6 / G6-L11, Step 8/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 8/2 How to disassemble Huawei Ascend G6 / G6-L11, Step 8/3

Step 8.

Disconnect connectors on the PCB.


How to disassemble Huawei Ascend G6 / G6-L11, Step 9/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 9/2

Step 9.

Remove the PCB.


How to disassemble Huawei Ascend G6 / G6-L11, Step 10/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 10/2

Step 10.

Pry and remove the headphone jack/socket.


How to disassemble Huawei Ascend G6 / G6-L11, Step 11/1 How to disassemble Huawei Ascend G6 / G6-L11, Step 11/2 How to disassemble Huawei Ascend G6 / G6-L11, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend G6 / G6-L11 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Huawei Ascend G6 / G6-L11 — Huawei Ascend G6 (G6-L11) released for markets in different countries.
