Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

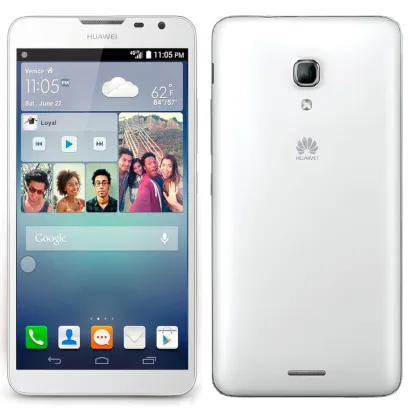

Disassembly/Repair of the mobile device Huawei Ascend Mate 2 (Huawei Ascend Mate 2 (MT2-L05)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Huawei Ascend Mate 2, Step 1/1 How to disassemble Huawei Ascend Mate 2, Step 1/2

Step 1.

Open the back cover.


How to disassemble Huawei Ascend Mate 2, Step 2/1 How to disassemble Huawei Ascend Mate 2, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.


How to disassemble Huawei Ascend Mate 2, Step 3/1 How to disassemble Huawei Ascend Mate 2, Step 3/2

Step 3.

Pry and remove the middle frame.


How to disassemble Huawei Ascend Mate 2, Step 4/1 How to disassemble Huawei Ascend Mate 2, Step 4/2

Step 4.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Huawei Ascend Mate 2, Step 5/1 How to disassemble Huawei Ascend Mate 2, Step 5/2

Step 5.

Disconnect connectors and remove the coaxial cable.


How to disassemble Huawei Ascend Mate 2, Step 6/1 How to disassemble Huawei Ascend Mate 2, Step 6/2 How to disassemble Huawei Ascend Mate 2, Step 6/3 How to disassemble Huawei Ascend Mate 2, Step 6/4

Step 6.

Disconnect the  inter-board cable connector and remove the lower board.


How to disassemble Huawei Ascend Mate 2, Step 7/1 How to disassemble Huawei Ascend Mate 2, Step 7/2 How to disassemble Huawei Ascend Mate 2, Step 7/3

Step 7.

Disconnect connector on the PCB.


How to disassemble Huawei Ascend Mate 2, Step 8/1 How to disassemble Huawei Ascend Mate 2, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Huawei Ascend Mate 2, Step 9/1 How to disassemble Huawei Ascend Mate 2, Step 9/2 How to disassemble Huawei Ascend Mate 2, Step 9/3 How to disassemble Huawei Ascend Mate 2, Step 9/4

Step 9.

Overturn the board, disconnect the connector from the inside and remove it.


How to disassemble Huawei Ascend Mate 2, Step 10/1 How to disassemble Huawei Ascend Mate 2, Step 10/2

Step 10.

Pry and remove the earpiece (speaker).


How to disassemble Huawei Ascend Mate 2, Step 11/1 How to disassemble Huawei Ascend Mate 2, Step 11/2 How to disassemble Huawei Ascend Mate 2, Step 11/3 How to disassemble Huawei Ascend Mate 2, Step 11/4

Step 11.

Parts in the frame of the display module.


How to disassemble Huawei Ascend Mate 2, Step 12/1 How to disassemble Huawei Ascend Mate 2, Step 12/2

Step 12.

Pry and remove the buzzer (speaker) assembly.

Detailed disassembly instructions of Huawei Ascend Mate 2 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Huawei Ascend Mate 2 — Huawei Ascend Mate 2 (MT2-L05) released for markets in different countries.
