Huawei Ascend P6
Huawei Ascend P6
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend P6 (Huawei Ascend P6 P6-U06) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei Ascend P6, Step 1/1 How to disassemble Huawei Ascend P6, Step 1/2

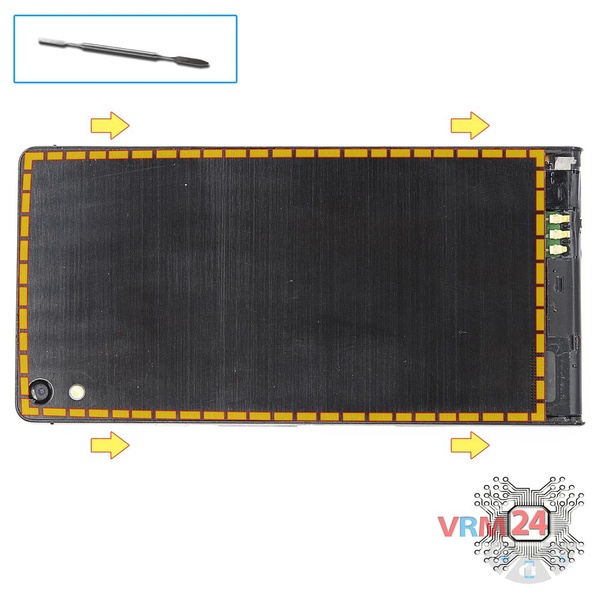

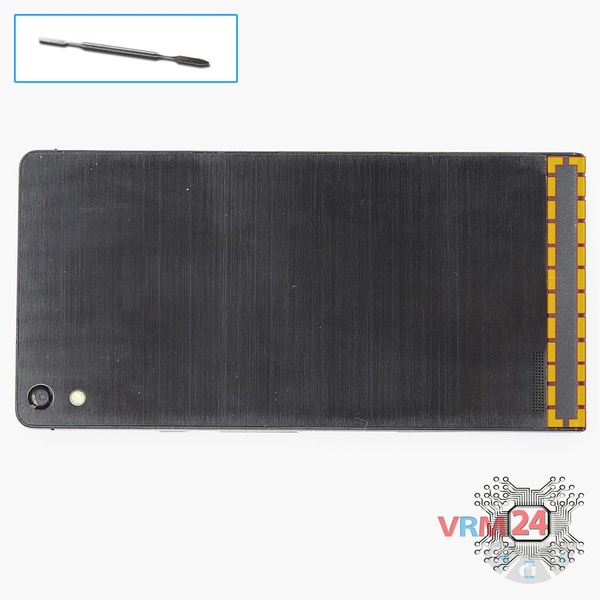

Step 1.

Open the bottom cover.

How to disassemble Huawei Ascend P6, Step 2/1 How to disassemble Huawei Ascend P6, Step 2/2 How to disassemble Huawei Ascend P6, Step 2/3

Step 2.

Slide the cover down and remove it.

How to disassemble Huawei Ascend P6, Step 3/1 How to disassemble Huawei Ascend P6, Step 3/2

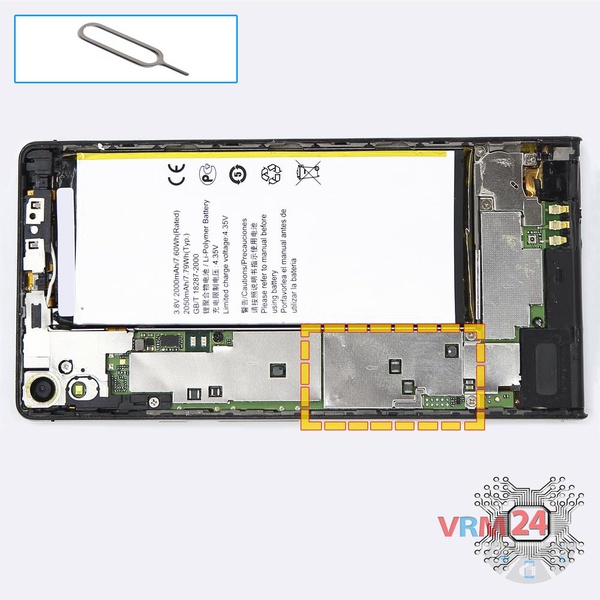

Step 3.

Using the key tool, open the SIM card and MMC card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Ascend P6, Step 4/1 How to disassemble Huawei Ascend P6, Step 4/2

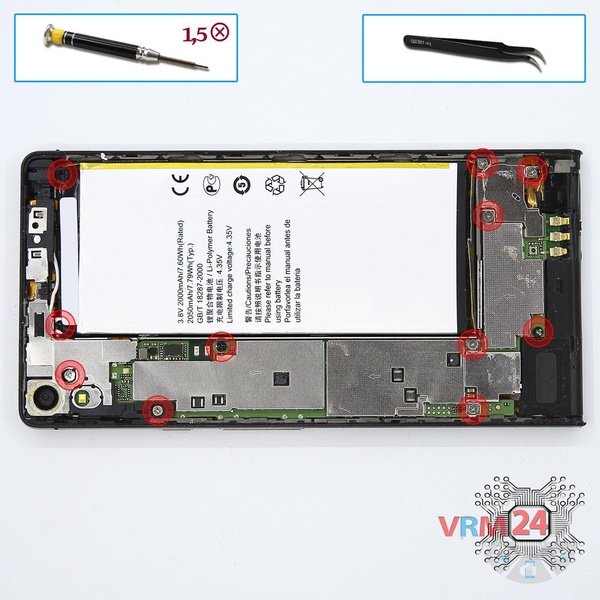

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts and remove the brackets.

How to disassemble Huawei Ascend P6, Step 5/1 How to disassemble Huawei Ascend P6, Step 5/2 How to disassemble Huawei Ascend P6, Step 5/3

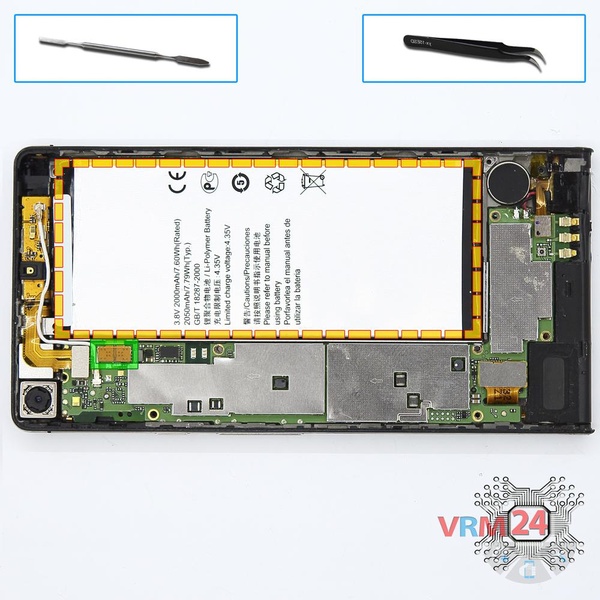

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Huawei Ascend P6, Step 6/1 How to disassemble Huawei Ascend P6, Step 6/2 How to disassemble Huawei Ascend P6, Step 6/3

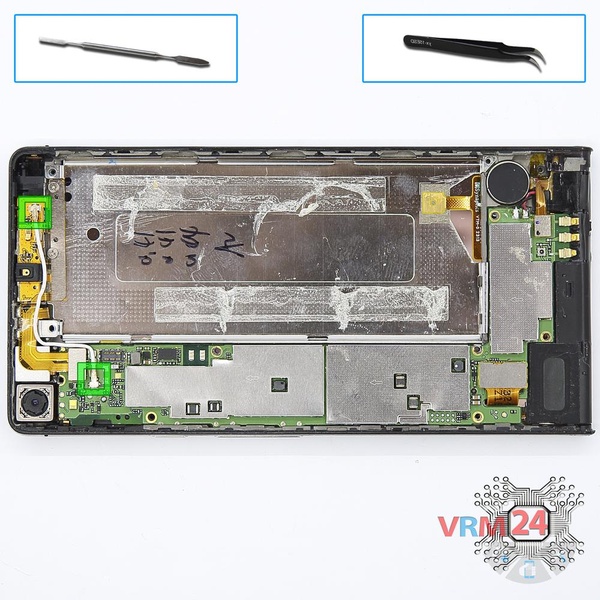

Step 6.

Disconnect connectors and remove the coaxial cable.

How to disassemble Huawei Ascend P6, Step 7/1 How to disassemble Huawei Ascend P6, Step 7/2 How to disassemble Huawei Ascend P6, Step 7/3

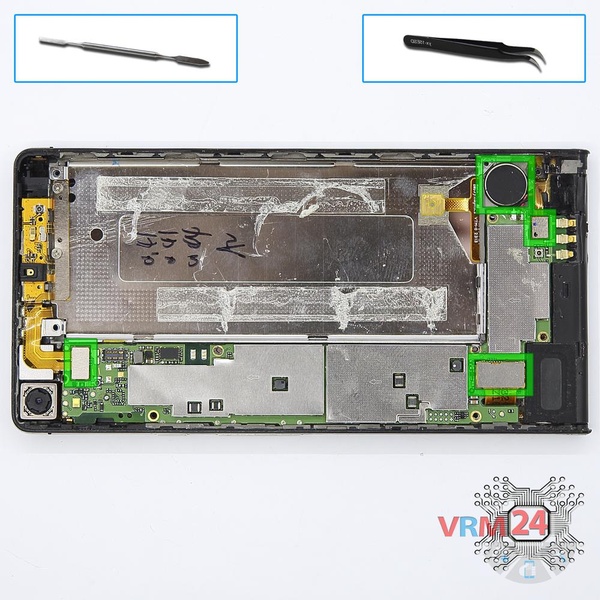

Step 7.

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble Huawei Ascend P6, Step 8/1 How to disassemble Huawei Ascend P6, Step 8/2

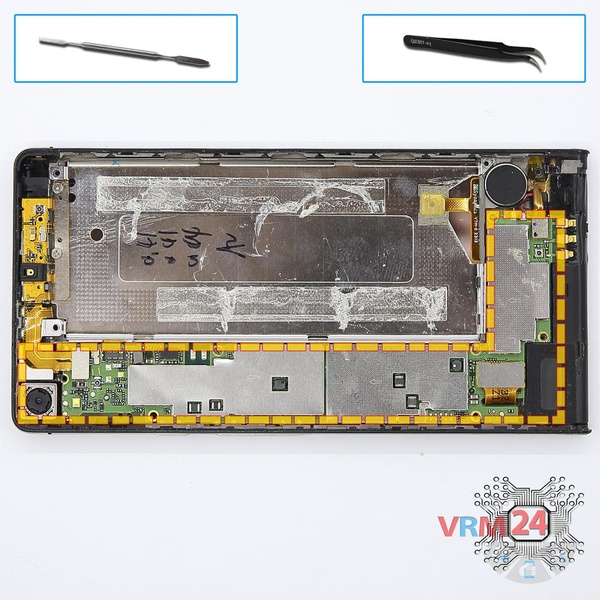

Step 8.

Remove the PCB.

How to disassemble Huawei Ascend P6, Step 9/1 How to disassemble Huawei Ascend P6, Step 9/2

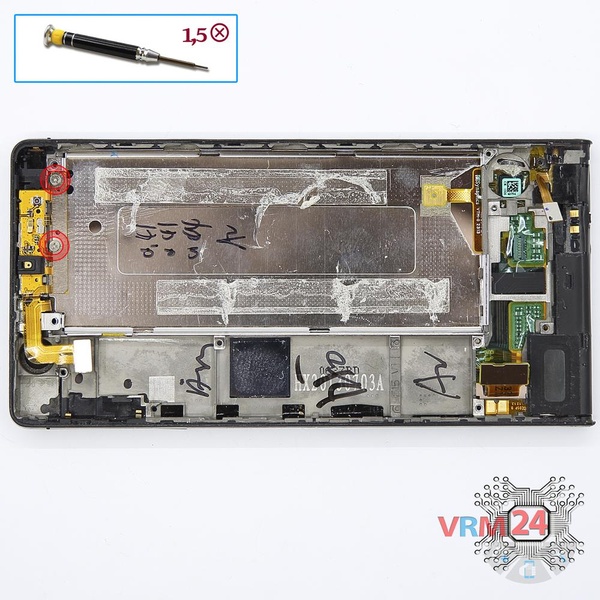

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the cable.

How to disassemble Huawei Ascend P6, Step 10/1 How to disassemble Huawei Ascend P6, Step 10/2

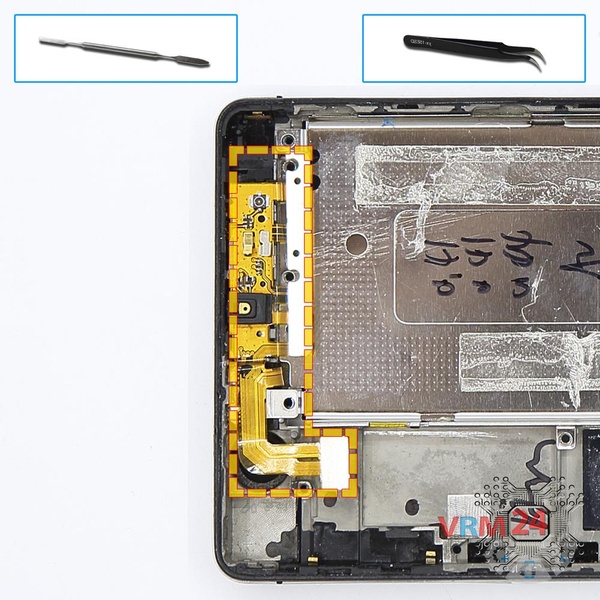

Step 10.

Pry and remove the flat cable with proximity sensor & charging port.

How to disassemble Huawei Ascend P6, Step 11/1 How to disassemble Huawei Ascend P6, Step 11/2

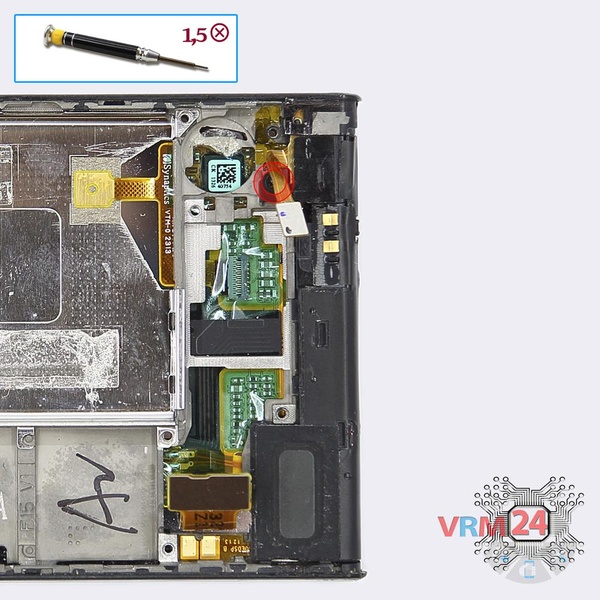

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 1 bolt and pry up the buzzer (speaker) assembly

How to disassemble Huawei Ascend P6, Step 12/1 How to disassemble Huawei Ascend P6, Step 12/2

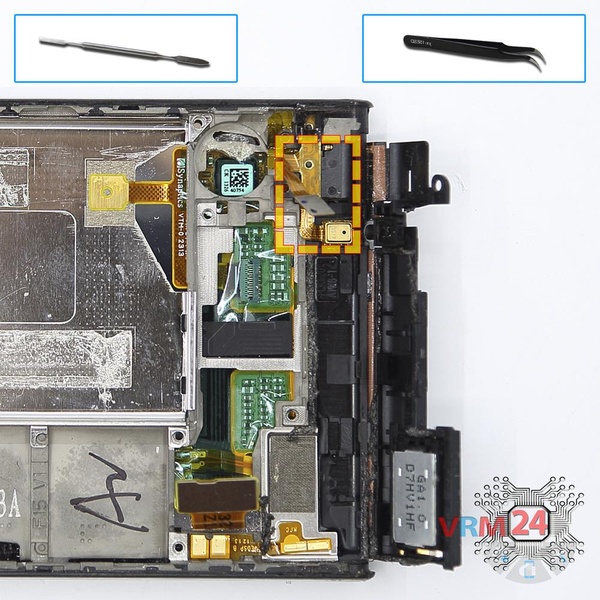

Step 12.

Pry & remove the cable with headphone jack/socket and microphone.

Detailed disassembly instructions of Huawei Ascend P6 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend P6
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Huawei Ascend P6 — Huawei Ascend P6 P6-U06 released for markets in different countries.
