Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Step by step disassembly and technical review of the device. The description of each step of the teardown, in detail and the pictures of device parts.


Specialist in content creation, distribution and content management.


How to disassemble Huawei Ascend Y625, Step 1/1 How to disassemble Huawei Ascend Y625, Step 1/2
Step 1

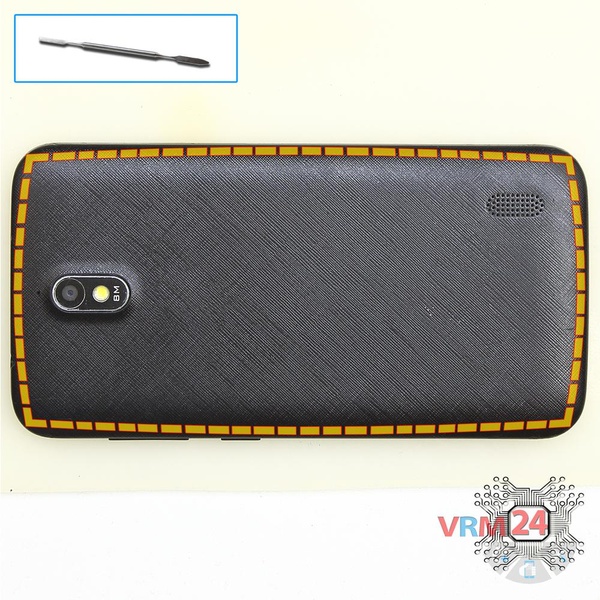

Open the back cover.

How to disassemble Huawei Ascend Y625, Step 2/1 How to disassemble Huawei Ascend Y625, Step 2/2

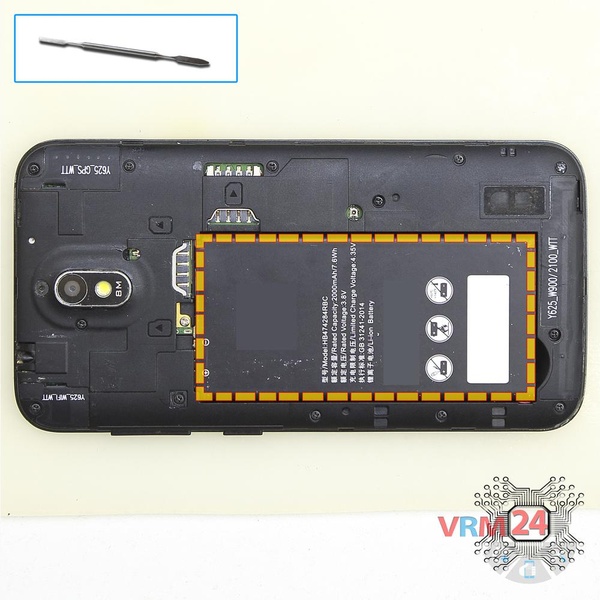

Step 2

Lift and remove the battery.

How to disassemble Huawei Ascend Y625, Step 3/1 How to disassemble Huawei Ascend Y625, Step 3/2
Step 3

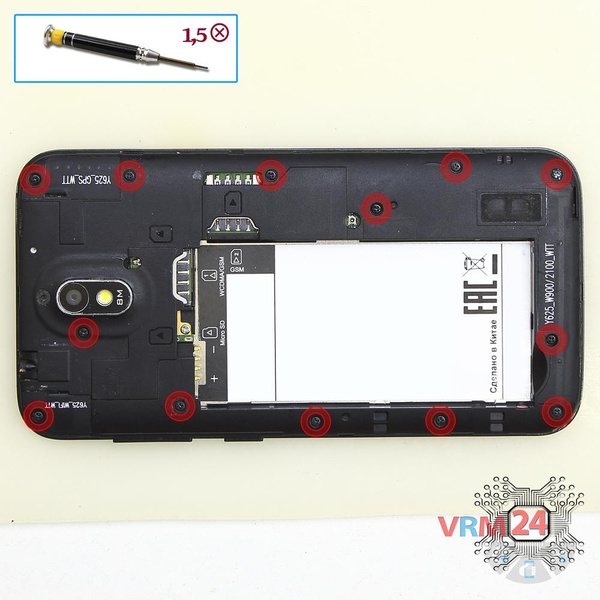

Using a screwdriver (hex T5), unscrew 13 bolts in the frame of the phone.

How to disassemble Huawei Ascend Y625, Step 4/1 How to disassemble Huawei Ascend Y625, Step 4/2
Step 4

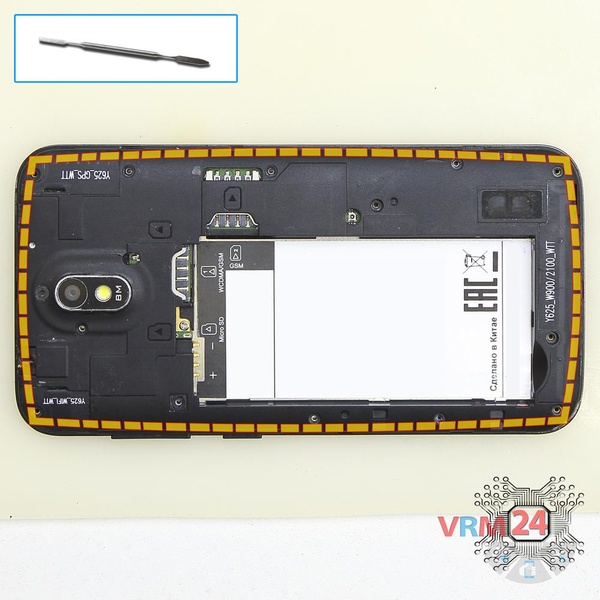

Pry and remove the middle frame.

How to disassemble Huawei Ascend Y625, Step 5/1 How to disassemble Huawei Ascend Y625, Step 5/2

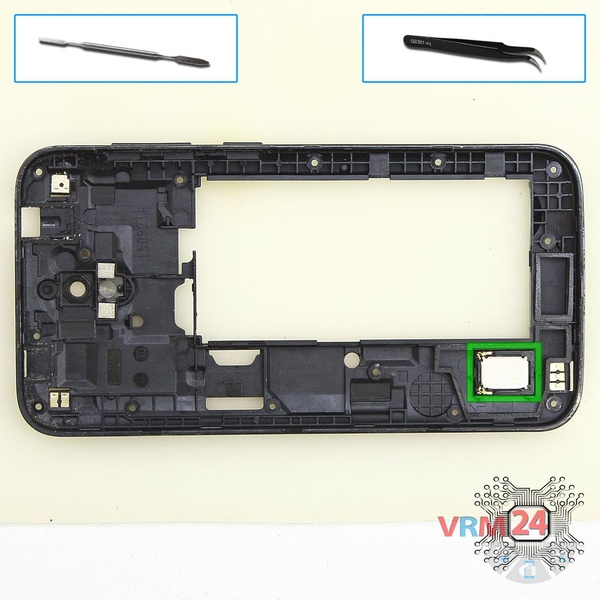

Step 5

Pry and remove the buzzer (speaker).

How to disassemble Huawei Ascend Y625, Step 6/1 How to disassemble Huawei Ascend Y625, Step 6/2

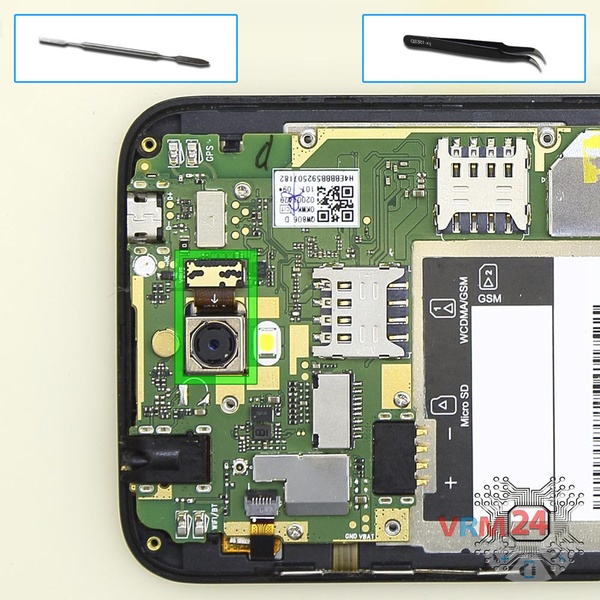

Step 6

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei Ascend Y625, Step 7/1 How to disassemble Huawei Ascend Y625, Step 7/2
Step 7

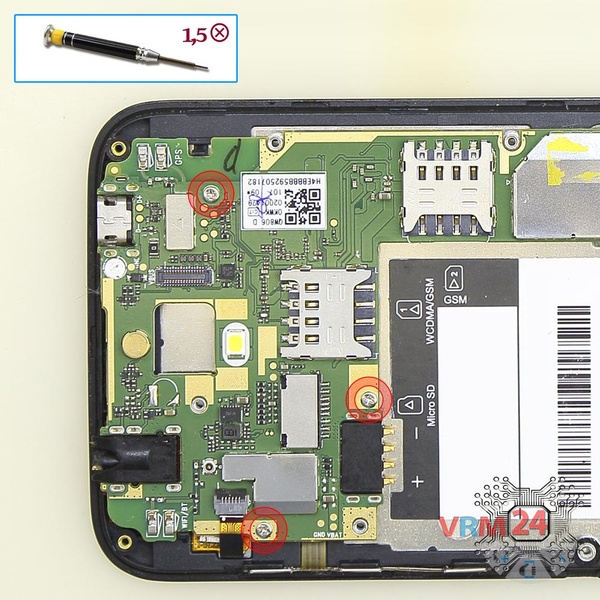

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Huawei Ascend Y625, Step 8/1 How to disassemble Huawei Ascend Y625, Step 8/2 How to disassemble Huawei Ascend Y625, Step 8/3 How to disassemble Huawei Ascend Y625, Step 8/4 How to disassemble Huawei Ascend Y625, Step 8/5
Step 8

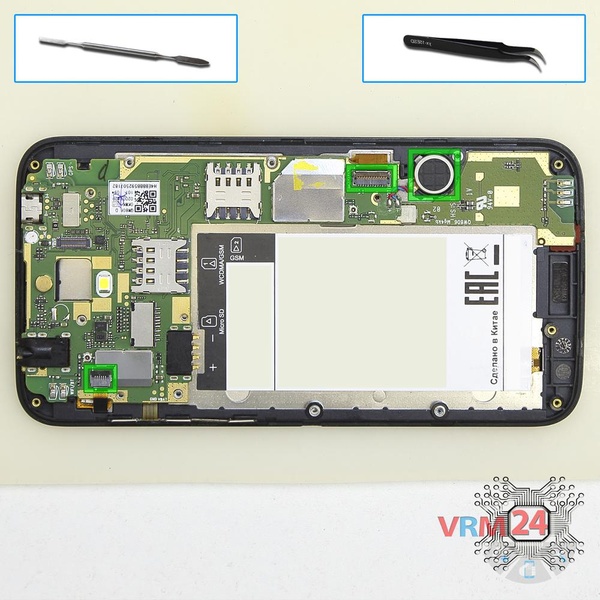

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble Huawei Ascend Y625, Step 9/1 How to disassemble Huawei Ascend Y625, Step 9/2
Step 9

Remove the PCB.

How to disassemble Huawei Ascend Y625, Step 10/1 How to disassemble Huawei Ascend Y625, Step 10/2
Step 10

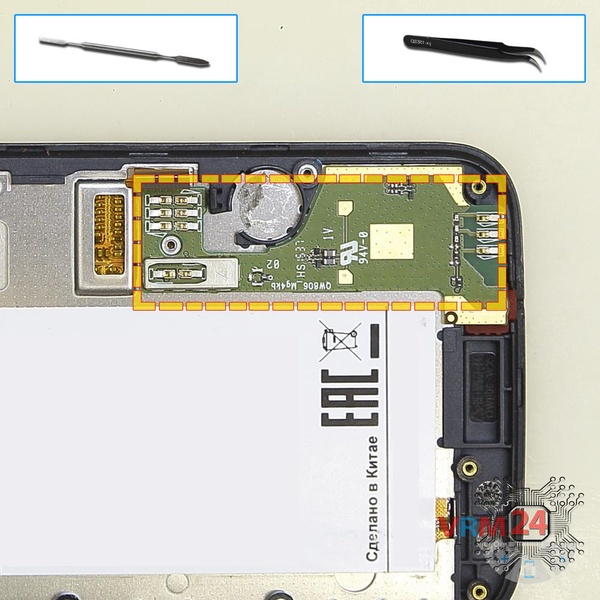

Remove the PCB with microphone.

How to disassemble Huawei Ascend Y625, Step 11/1 How to disassemble Huawei Ascend Y625, Step 11/2
Step 11

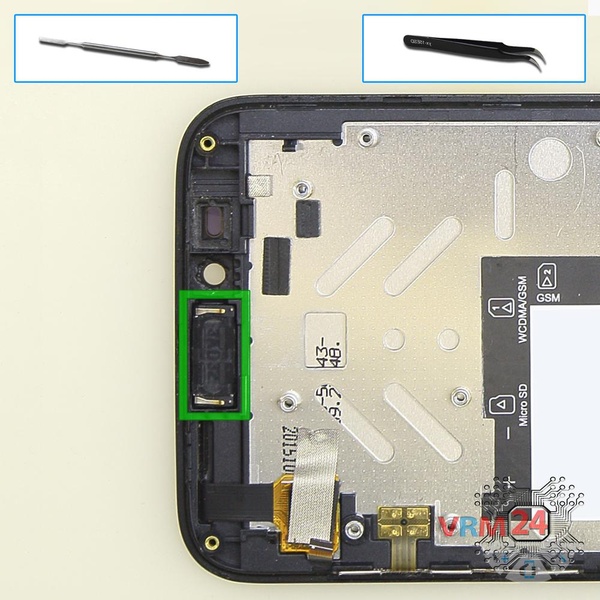

Pry and remove the earpiece (speaker).

How to disassemble Huawei Ascend Y625, Step 12/1 How to disassemble Huawei Ascend Y625, Step 12/2 How to disassemble Huawei Ascend Y625, Step 12/3
Step 12

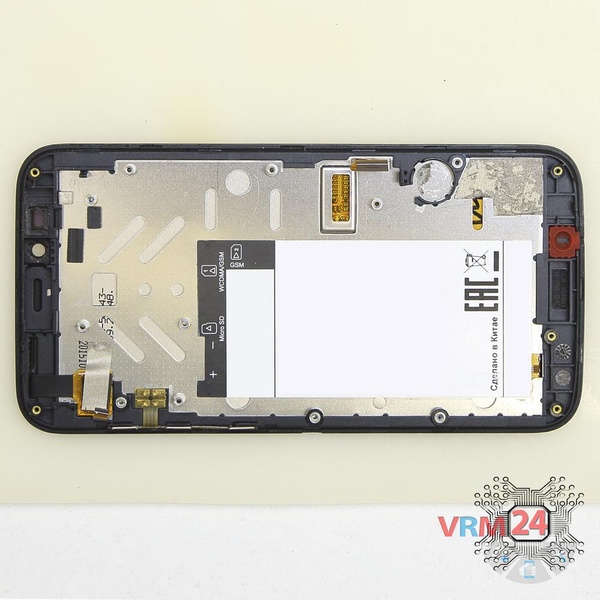

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend Y625 in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Huawei Ascend Y625 — Huawei Ascend Y625 (Y625-U32) released for markets in different countries.
