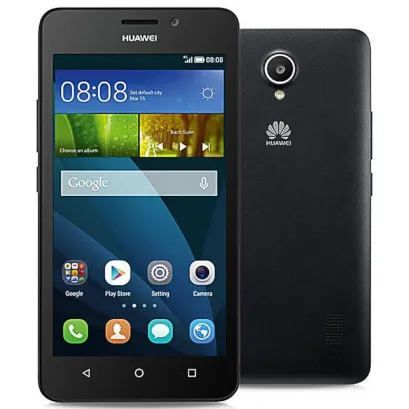

Huawei Ascend Y635
Huawei Ascend Y635
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend Y635 (Huawei Ascend Y635 Y635-L01 Y635-L21) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei Ascend Y635, Step 1/1 How to disassemble Huawei Ascend Y635, Step 1/2

Step 1.

Open the back cover.

How to disassemble Huawei Ascend Y635, Step 2/1 How to disassemble Huawei Ascend Y635, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Huawei Ascend Y635, Step 3/1 How to disassemble Huawei Ascend Y635, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts and a screwdriver (hex T5) unscrew 6 bolts in the frame of the phone.

How to disassemble Huawei Ascend Y635, Step 4/1 How to disassemble Huawei Ascend Y635, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Huawei Ascend Y635, Step 5/1

Step 5.

The middle frame.

How to disassemble Huawei Ascend Y635, Step 6/1 How to disassemble Huawei Ascend Y635, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei Ascend Y635, Step 7/1 How to disassemble Huawei Ascend Y635, Step 7/2 How to disassemble Huawei Ascend Y635, Step 7/3 How to disassemble Huawei Ascend Y635, Step 7/4 How to disassemble Huawei Ascend Y635, Step 7/5

Step 7.

Disconnect connectors on the PCB and pry up vibration motor.

⚠️ Warning!

It has two boards connected by the connector from the inside. Separate it carefully.

How to disassemble Huawei Ascend Y635, Step 8/1 How to disassemble Huawei Ascend Y635, Step 8/2

Step 8.

Remove the upper PCB.

How to disassemble Huawei Ascend Y635, Step 9/1 How to disassemble Huawei Ascend Y635, Step 9/2

Step 9.

Remove the lower PCB.

How to disassemble Huawei Ascend Y635, Step 10/1 How to disassemble Huawei Ascend Y635, Step 10/2

Step 10.

Pry and remove the earpiece (speaker).

How to disassemble Huawei Ascend Y635, Step 11/1 How to disassemble Huawei Ascend Y635, Step 11/2 How to disassemble Huawei Ascend Y635, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend Y635 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend Y635
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Huawei Ascend Y635 — Huawei Ascend Y635 Y635-L01 Y635-L21 released for markets in different countries.
