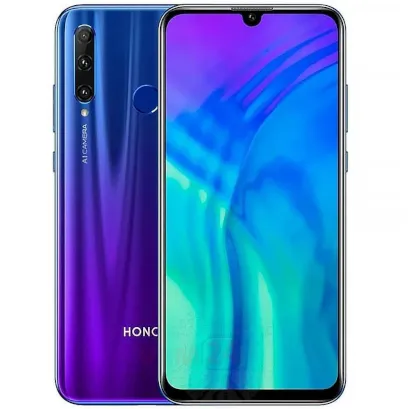

Disassembly/Repair of the mobile device Huawei Honor 20 Lite (Huawei Honor 20 Lite MAR-LX1H) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Huawei Honor 20 Lite, Step 1/1 How to disassemble Huawei Honor 20 Lite, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Honor 20 Lite, Step 2/1 How to disassemble Huawei Honor 20 Lite, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Huawei Honor 20 Lite, Step 3/1 How to disassemble Huawei Honor 20 Lite, Step 3/2

Step 3.

Pry up the fingerprint sensor connector and remove the cover.

How to disassemble Huawei Honor 20 Lite, Step 4/1 How to disassemble Huawei Honor 20 Lite, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 large screws and 3 small ones.
How to disassemble Huawei Honor 20 Lite, Step 5/1 How to disassemble Huawei Honor 20 Lite, Step 5/2

Step 5.

Remove the frame and bracket.
How to disassemble Huawei Honor 20 Lite, Step 6/1 How to disassemble Huawei Honor 20 Lite, Step 6/2

Step 6.

Pry up the connector and remove the fingerprint sensor cable.
How to disassemble Huawei Honor 20 Lite, Step 7/1 How to disassemble Huawei Honor 20 Lite, Step 7/2

Step 7.

Peel back the protective layer.
How to disassemble Huawei Honor 20 Lite, Step 8/1 How to disassemble Huawei Honor 20 Lite, Step 8/2

Step 8.

Disconnect the battery connector. The battery model of Honor 20 Lite is HB356687ECW.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Honor 20 Lite, Step 9/1 How to disassemble Huawei Honor 20 Lite, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 small screws and a large one.
How to disassemble Huawei Honor 20 Lite, Step 10/1 How to disassemble Huawei Honor 20 Lite, Step 10/2

Step 10.

Pry and remove the buzzer (loudspeaker), vibration motor assembly.
How to disassemble Huawei Honor 20 Lite, Step 11/1

Step 11.

Disconnect connectors on the daughterboard.
How to disassemble Huawei Honor 20 Lite, Step 12/1 How to disassemble Huawei Honor 20 Lite, Step 12/2

Step 12.

Remove the daughterboard, also known as sub-board.
How to disassemble Huawei Honor 20 Lite, Step 13/1 How to disassemble Huawei Honor 20 Lite, Step 13/2

Step 13.

Disconnect the connector on PCB, and remove the front (selfie) camera.
How to disassemble Huawei Honor 20 Lite, Step 14/1 How to disassemble Huawei Honor 20 Lite, Step 14/2

Step 14.

Disconnect the connectors on PCB, and remove the assembly of three rear cameras.
How to disassemble Huawei Honor 20 Lite, Step 15/1 How to disassemble Huawei Honor 20 Lite, Step 15/2

Step 15.

Disconnect connectors on the PCB.
How to disassemble Huawei Honor 20 Lite, Step 16/1 How to disassemble Huawei Honor 20 Lite, Step 16/2

Step 16.

Remove the PCB.
How to disassemble Huawei Honor 20 Lite, Step 17/1 How to disassemble Huawei Honor 20 Lite, Step 17/2 How to disassemble Huawei Honor 20 Lite, Step 17/3

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 20 Lite in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 20 Lite
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 12 minutes in time.
Our manual is suitable for all models Huawei Honor 20 Lite — Huawei Honor 20 Lite MAR-LX1H released for markets in different countries.
