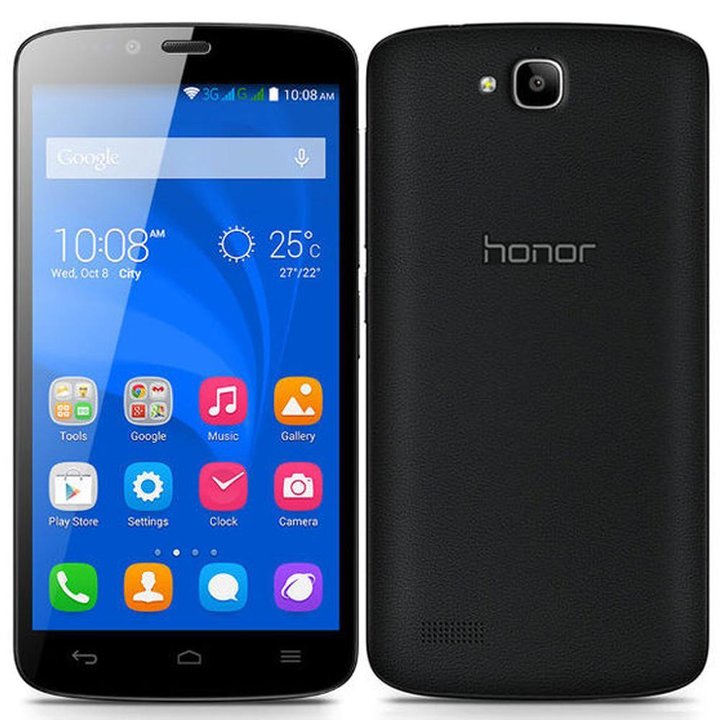

Huawei Honor 3C Lite
Huawei Honor 3C Lite
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Honor 3C Lite (Huawei Honor 3C Lite Hol-U19) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei Honor 3C Lite, Step 1/1 How to disassemble Huawei Honor 3C Lite, Step 1/2

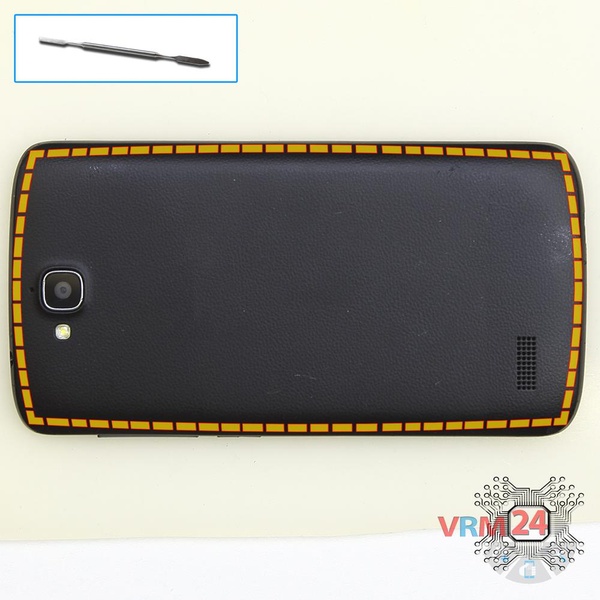

Step 1.

Open the back cover.

How to disassemble Huawei Honor 3C Lite, Step 2/1 How to disassemble Huawei Honor 3C Lite, Step 2/2

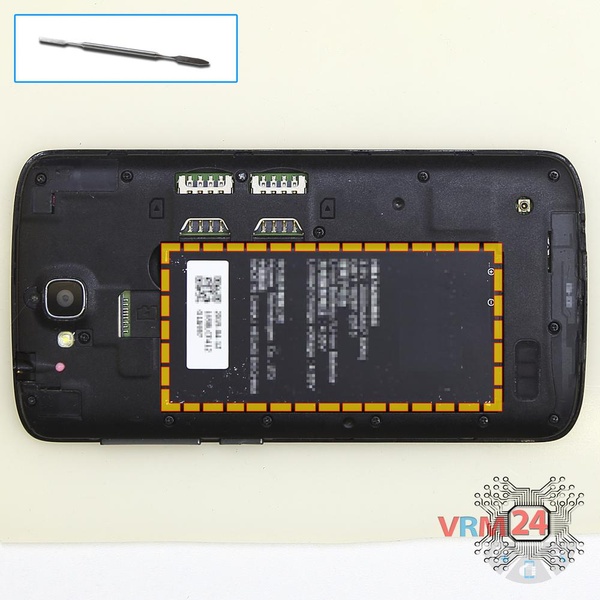

Step 2.

Lift and remove the battery.

How to disassemble Huawei Honor 3C Lite, Step 3/1 How to disassemble Huawei Honor 3C Lite, Step 3/2

Step 3.

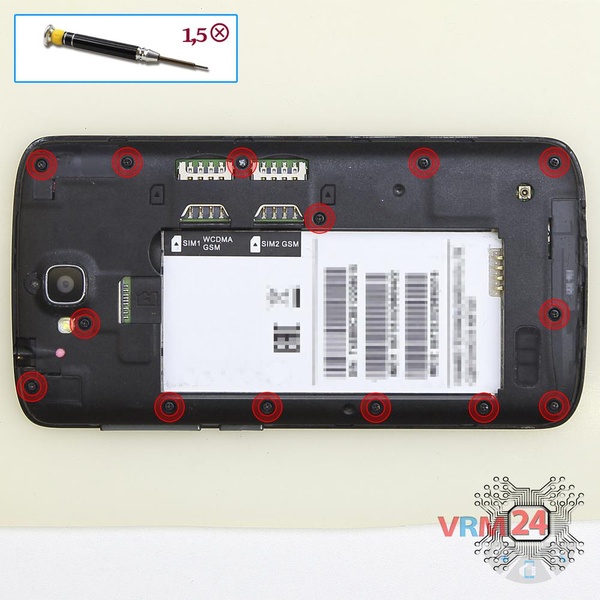

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Huawei Honor 3C Lite, Step 4/1 How to disassemble Huawei Honor 3C Lite, Step 4/2

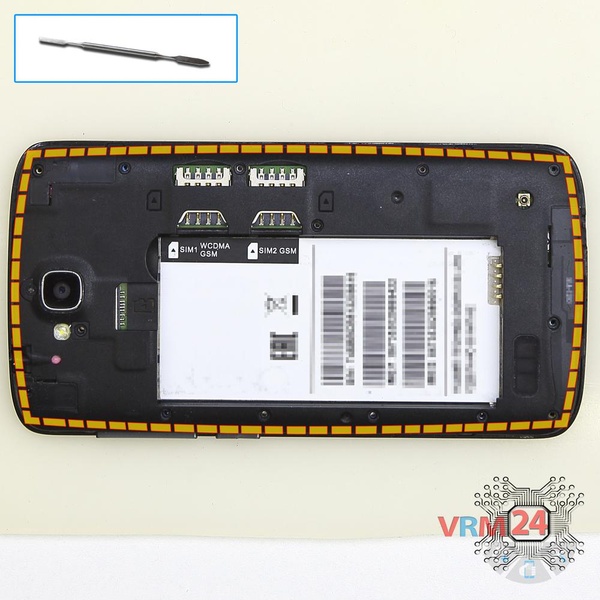

Step 4.

Pry and remove the middle frame.

How to disassemble Huawei Honor 3C Lite, Step 5/1 How to disassemble Huawei Honor 3C Lite, Step 5/2

Step 5.

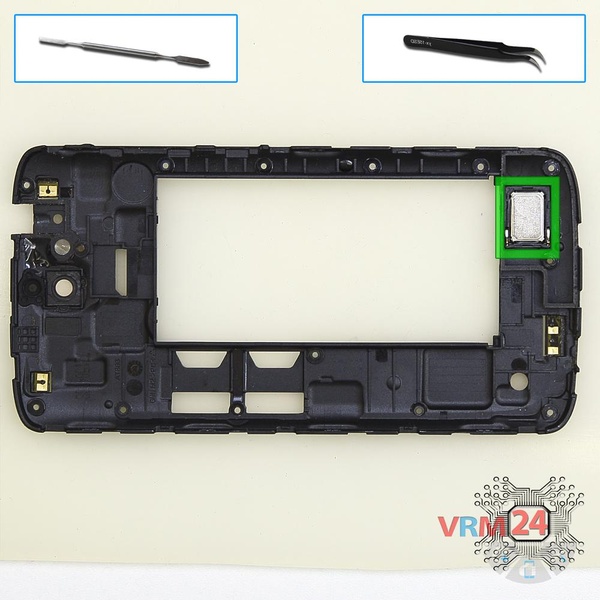

Pry and remove the buzzer (speaker).

How to disassemble Huawei Honor 3C Lite, Step 6/1 How to disassemble Huawei Honor 3C Lite, Step 6/2 How to disassemble Huawei Honor 3C Lite, Step 6/3 How to disassemble Huawei Honor 3C Lite, Step 6/4 How to disassemble Huawei Honor 3C Lite, Step 6/5

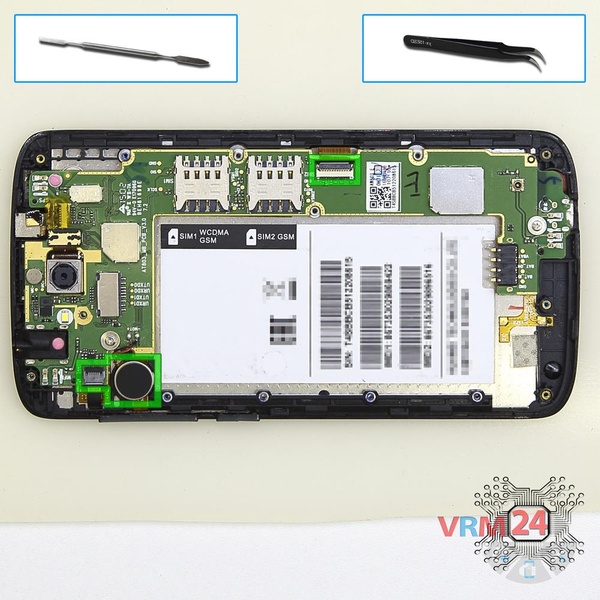

Step 6.

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble Huawei Honor 3C Lite, Step 7/1 How to disassemble Huawei Honor 3C Lite, Step 7/2

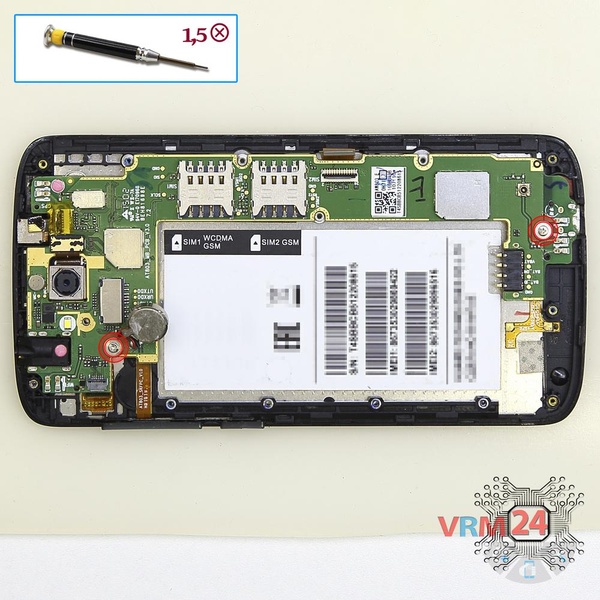

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Huawei Honor 3C Lite, Step 8/1 How to disassemble Huawei Honor 3C Lite, Step 8/2

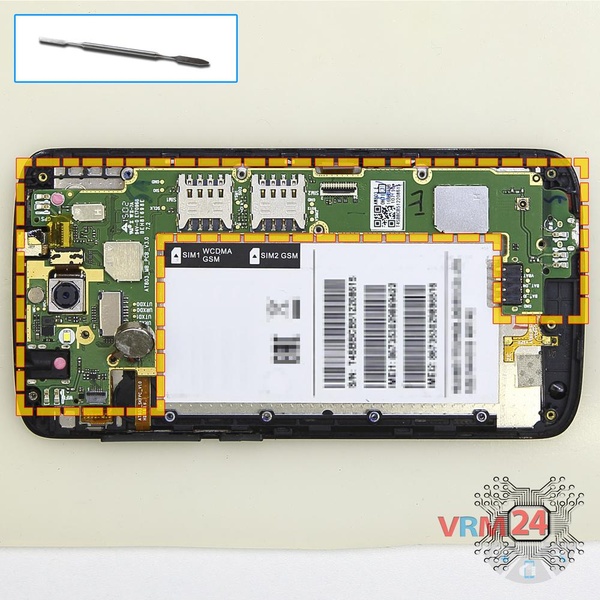

Step 8.

Remove the PCB.

How to disassemble Huawei Honor 3C Lite, Step 9/1 How to disassemble Huawei Honor 3C Lite, Step 9/2

Step 9.

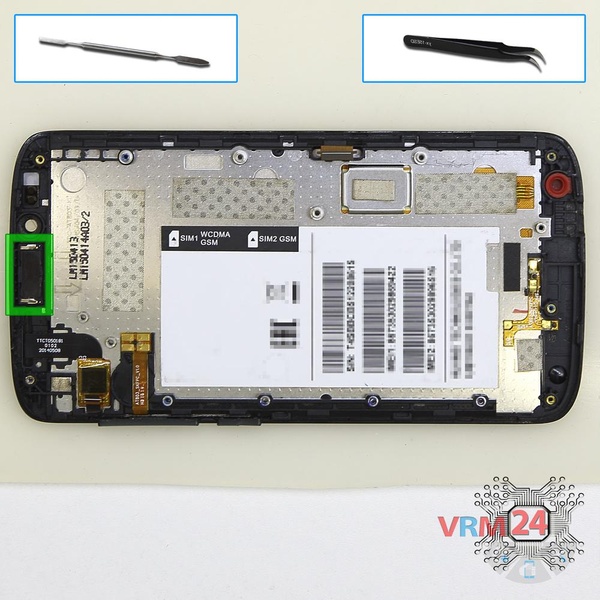

Pry and remove the earpiece (speaker).

How to disassemble Huawei Honor 3C Lite, Step 10/1 How to disassemble Huawei Honor 3C Lite, Step 10/2 How to disassemble Huawei Honor 3C Lite, Step 10/3

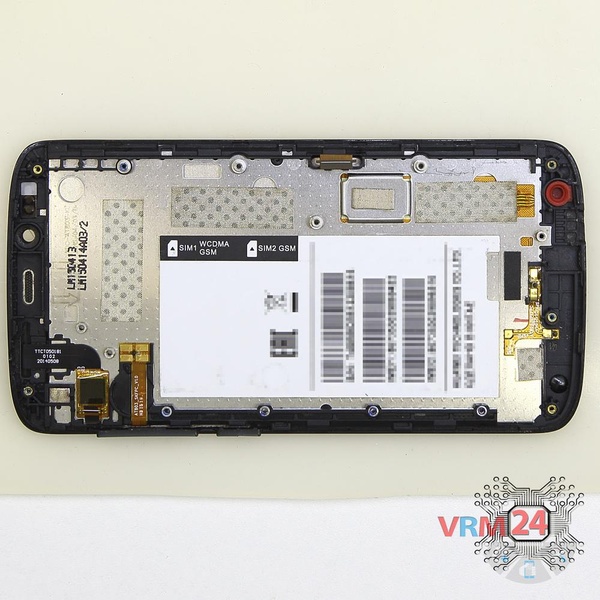

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 3C Lite in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 3C Lite
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Huawei Honor 3C Lite — Huawei Honor 3C Lite Hol-U19 released for markets in different countries.
