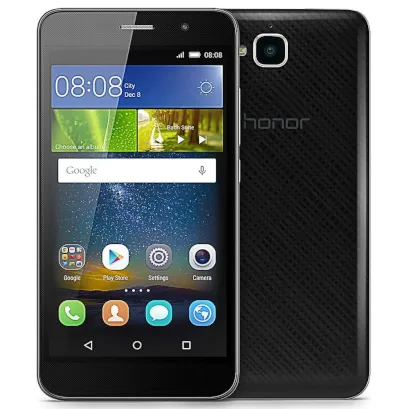

Disassembly/Repair of the mobile device Huawei Honor 4C Pro (Huawei Honor 4C Pro (TIT-L01)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Huawei Honor 4C Pro, Step 1/1 How to disassemble Huawei Honor 4C Pro, Step 1/2

Step 1.

Open the back cover.


How to disassemble Huawei Honor 4C Pro, Step 2/1 How to disassemble Huawei Honor 4C Pro, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.


How to disassemble Huawei Honor 4C Pro, Step 3/1 How to disassemble Huawei Honor 4C Pro, Step 3/2

Step 3.

Pry and remove the middle frame.


How to disassemble Huawei Honor 4C Pro, Step 4/1 How to disassemble Huawei Honor 4C Pro, Step 4/2

Step 4.

Pry and remove the buzzer (speaker) assembly.


How to disassemble Huawei Honor 4C Pro, Step 5/1 How to disassemble Huawei Honor 4C Pro, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts securing the battery.


How to disassemble Huawei Honor 4C Pro, Step 6/1 How to disassemble Huawei Honor 4C Pro, Step 6/2 How to disassemble Huawei Honor 4C Pro, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the battery.


How to disassemble Huawei Honor 4C Pro, Step 7/1 How to disassemble Huawei Honor 4C Pro, Step 7/2 How to disassemble Huawei Honor 4C Pro, Step 7/3

Step 7.

Disconnect connectors on the lower PCB.


How to disassemble Huawei Honor 4C Pro, Step 8/1 How to disassemble Huawei Honor 4C Pro, Step 8/2

Step 8.

Remove the lower PCB.


How to disassemble Huawei Honor 4C Pro, Step 9/1 How to disassemble Huawei Honor 4C Pro, Step 9/2 How to disassemble Huawei Honor 4C Pro, Step 9/3

Step 9.

Disconnect connectors on the PCB.


How to disassemble Huawei Honor 4C Pro, Step 10/1 How to disassemble Huawei Honor 4C Pro, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the cover with antennas.


How to disassemble Huawei Honor 4C Pro, Step 11/1 How to disassemble Huawei Honor 4C Pro, Step 11/2

Step 11.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Huawei Honor 4C Pro, Step 12/1 How to disassemble Huawei Honor 4C Pro, Step 12/2

Step 12.

Remove the PCB.


How to disassemble Huawei Honor 4C Pro, Step 13/1 How to disassemble Huawei Honor 4C Pro, Step 13/2

Step 13.

Pry and remove the earpiece (speaker).


How to disassemble Huawei Honor 4C Pro, Step 14/1 How to disassemble Huawei Honor 4C Pro, Step 14/2

Step 14.

Pry up the coaxial cable & power & volume buttons flex cable.


How to disassemble Huawei Honor 4C Pro, Step 15/1 How to disassemble Huawei Honor 4C Pro, Step 15/2 How to disassemble Huawei Honor 4C Pro, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 4C Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 8 minutes in time. Our manual is suitable for all models Huawei Honor 4C Pro — Huawei Honor 4C Pro (TIT-L01) released for markets in different countries.
