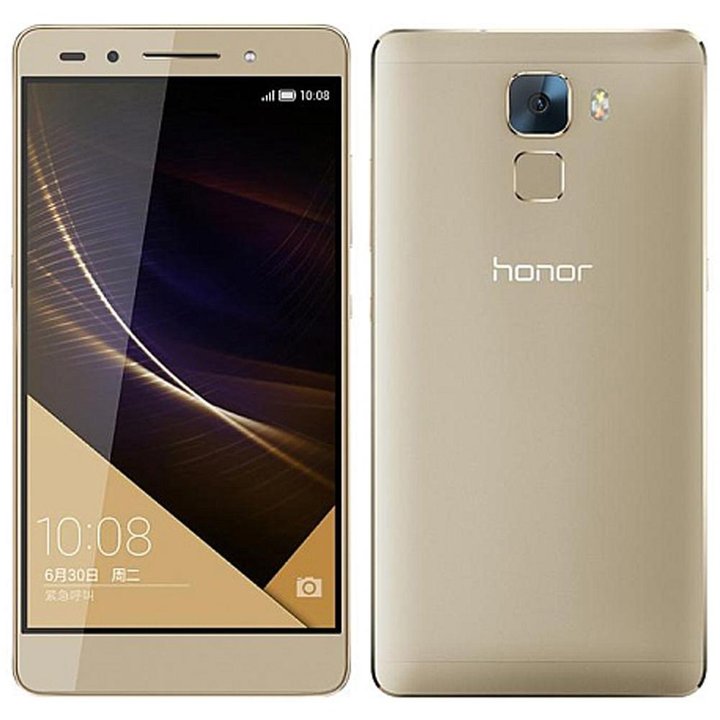

Huawei Honor 7
Huawei Honor 7
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Huawei Honor 7 (Huawei Honor 7 PLK-L01) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Huawei Honor 7, Step 1/1 How to disassemble Huawei Honor 7, Step 1/2 How to disassemble Huawei Honor 7, Step 1/3

Step 1.

Using the key tool, open the SIM card and MMC card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Honor 7, Step 2/1 How to disassemble Huawei Honor 7, Step 2/2

Step 2.

Open the back cover.

How to disassemble Huawei Honor 7, Step 3/1 How to disassemble Huawei Honor 7, Step 3/2

Step 3.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Honor 7, Step 4/1 How to disassemble Huawei Honor 7, Step 4/2 How to disassemble Huawei Honor 7, Step 4/3

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the upper cover.

How to disassemble Huawei Honor 7, Step 5/1 How to disassemble Huawei Honor 7, Step 5/2

Step 5.

Pry and remove the upper frame.

How to disassemble Huawei Honor 7, Step 6/1 How to disassemble Huawei Honor 7, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Huawei Honor 7, Step 7/1 How to disassemble Huawei Honor 7, Step 7/2 How to disassemble Huawei Honor 7, Step 7/3

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Huawei Honor 7, Step 8/1 How to disassemble Huawei Honor 7, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Huawei Honor 7, Step 9/1 How to disassemble Huawei Honor 7, Step 9/2

Step 9.

Disconnect connectors and remove coaxial cable.

How to disassemble Huawei Honor 7, Step 10/1 How to disassemble Huawei Honor 7, Step 10/2 How to disassemble Huawei Honor 7, Step 10/3 How to disassemble Huawei Honor 7, Step 10/4 How to disassemble Huawei Honor 7, Step 10/5 How to disassemble Huawei Honor 7, Step 10/6

Step 10.

Disconnect connectors on the PCB.

How to disassemble Huawei Honor 7, Step 11/1 How to disassemble Huawei Honor 7, Step 11/2

Step 11.

Remove the PCB.

How to disassemble Huawei Honor 7, Step 12/1 How to disassemble Huawei Honor 7, Step 12/2 How to disassemble Huawei Honor 7, Step 12/3 How to disassemble Huawei Honor 7, Step 12/4

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 7 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 7
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Huawei Honor 7 — Huawei Honor 7 PLK-L01 released for markets in different countries.
