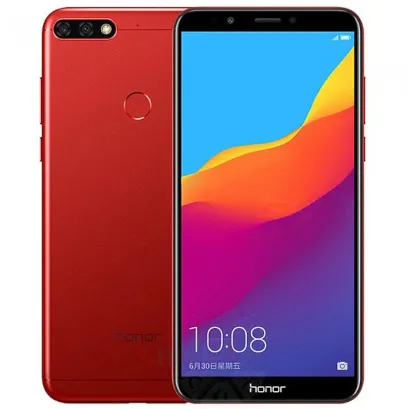

Huawei Honor 7C
Huawei Honor 7C
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Honor 7C (Huawei Honor 7C AUM-L41) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Huawei Honor 7C, Step 1/1 How to disassemble Huawei Honor 7C, Step 1/2

Step 1.

Open the back cover.

How to disassemble Huawei Honor 7C, Step 2/1 How to disassemble Huawei Honor 7C, Step 2/2 How to disassemble Huawei Honor 7C, Step 2/3

Step 2.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Honor 7C, Step 3/1 How to disassemble Huawei Honor 7C, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Huawei Honor 7C, Step 4/1 How to disassemble Huawei Honor 7C, Step 4/2

Step 4.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Huawei Honor 7C, Step 5/1 How to disassemble Huawei Honor 7C, Step 5/2

Step 5.

Disconnect connectors on the lower PCB.

How to disassemble Huawei Honor 7C, Step 6/1 How to disassemble Huawei Honor 7C, Step 6/2

Step 6.

Remove the lower PCB.

How to disassemble Huawei Honor 7C, Step 7/1 How to disassemble Huawei Honor 7C, Step 7/2 How to disassemble Huawei Honor 7C, Step 7/3

Step 7.

Disconnect the connector and remove the inter-board cable.

How to disassemble Huawei Honor 7C, Step 8/1 How to disassemble Huawei Honor 7C, Step 8/2 How to disassemble Huawei Honor 7C, Step 8/3

Step 8.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Huawei Honor 7C, Step 9/1 How to disassemble Huawei Honor 7C, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Huawei Honor 7C, Step 10/1 How to disassemble Huawei Honor 7C, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Huawei Honor 7C, Step 11/1 How to disassemble Huawei Honor 7C, Step 11/2 How to disassemble Huawei Honor 7C, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 7C in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 7C
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Huawei Honor 7C — Huawei Honor 7C AUM-L41 released for markets in different countries.
