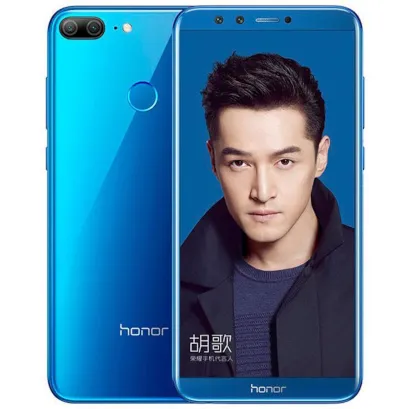

Disassembly of the mobile device Huawei Honor 9 Lite with each step description and the required set of tools.

Load more
Teardown difficulty:
Easy
Duration:
12 min

Specialist in content creation, distribution and content management.

Recommended tools

How to disassemble Huawei Honor 9 Lite, Step 1/1 How to disassemble Huawei Honor 9 Lite, Step 1/2

Step 1

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Huawei Honor 9 Lite, Step 2/1 How to disassemble Huawei Honor 9 Lite, Step 2/2

Step 2

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Huawei Honor 9 Lite, Step 3/1 How to disassemble Huawei Honor 9 Lite, Step 3/2 How to disassemble Huawei Honor 9 Lite, Step 3/3

Step 3

Disconnect the fingerprint sensor connector on the cable on the back cover.


How to disassemble Huawei Honor 9 Lite, Step 4/1 How to disassemble Huawei Honor 9 Lite, Step 4/2

Step 4

Using a screwdriver (Phillips 1.5 mm), unscrew 1 bolt and remove the holder of the connectors.


How to disassemble Huawei Honor 9 Lite, Step 5/1 How to disassemble Huawei Honor 9 Lite, Step 5/2

Step 5

Using a screwdriver (Phillips 1.5 mm), unscrew 2 bolts and remove the holder of the battery connector.


How to disassemble Huawei Honor 9 Lite, Step 6/1 How to disassemble Huawei Honor 9 Lite, Step 6/2 How to disassemble Huawei Honor 9 Lite, Step 6/3

Step 6

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Huawei Honor 9 Lite, Step 7/1 How to disassemble Huawei Honor 9 Lite, Step 7/2

Step 7

Using a screwdriver (Phillips 1.5 mm), unscrew 1 bolt and remove the holder of the connectors.


How to disassemble Huawei Honor 9 Lite, Step 8/1 How to disassemble Huawei Honor 9 Lite, Step 8/2

Step 8

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 3 bolts.


How to disassemble Huawei Honor 9 Lite, Step 9/1 How to disassemble Huawei Honor 9 Lite, Step 9/2

Step 9

Remove the protective panel.


How to disassemble Huawei Honor 9 Lite, Step 10/1 How to disassemble Huawei Honor 9 Lite, Step 10/2

Step 10

Disconnect connectors and remove the fingerprint sensor cable.


How to disassemble Huawei Honor 9 Lite, Step 11/1 How to disassemble Huawei Honor 9 Lite, Step 11/2

Step 11

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 9 bolts at the bottom part.


How to disassemble Huawei Honor 9 Lite, Step 12/1 How to disassemble Huawei Honor 9 Lite, Step 12/2

Step 12

Remove the protection of connectors.


How to disassemble Huawei Honor 9 Lite, Step 13/1 How to disassemble Huawei Honor 9 Lite, Step 13/2

Step 13

Remove the lower part with the buzzer (speaker).


How to disassemble Huawei Honor 9 Lite, Step 14/1 How to disassemble Huawei Honor 9 Lite, Step 14/2

Step 14

Remove the connectors on the bottom PCB.


How to disassemble Huawei Honor 9 Lite, Step 15/1 How to disassemble Huawei Honor 9 Lite, Step 15/2

Step 15

Remove the lower PCB.


How to disassemble Huawei Honor 9 Lite, Step 16/1 How to disassemble Huawei Honor 9 Lite, Step 16/2

Step 16

Disconnect the connectors on the PCB and remove the paired main camera.


How to disassemble Huawei Honor 9 Lite, Step 17/1 How to disassemble Huawei Honor 9 Lite, Step 17/2

Step 17

Disconnect the connectors on the PCB and remove the paired front (selfie) camera.


How to disassemble Huawei Honor 9 Lite, Step 18/1 How to disassemble Huawei Honor 9 Lite, Step 18/2

Step 18

Disconnect the connectors on PCB.


How to disassemble Huawei Honor 9 Lite, Step 19/1 How to disassemble Huawei Honor 9 Lite, Step 19/2

Step 19

Remove the PCB.


How to disassemble Huawei Honor 9 Lite, Step 20/1 How to disassemble Huawei Honor 9 Lite, Step 20/2 How to disassemble Huawei Honor 9 Lite, Step 20/3

Step 20

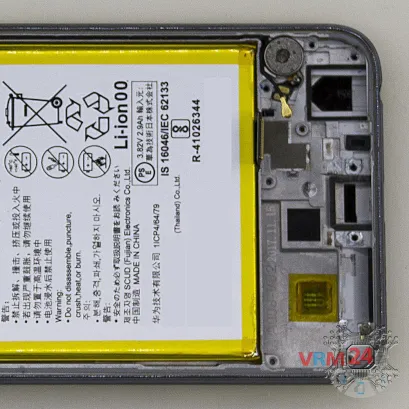

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 9 Lite in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Huawei Honor 9 Lite released for markets in different countries.
