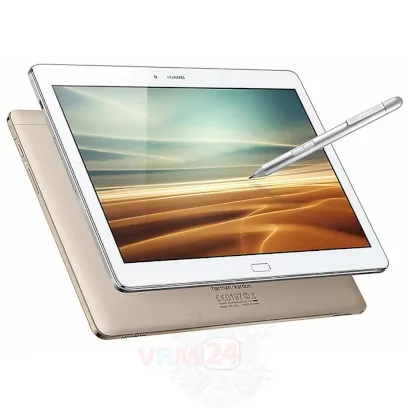

Huawei MediaPad M2 10''
Huawei MediaPad M2 10''
Teardown difficulty:
Hard

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei MediaPad M2 10'' (Huawei MediaPad M2 M2-A01L) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Huawei MediaPad M2 10'', Step 1/1

Step 1.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Huawei MediaPad M2 10'', Step 2/1 How to disassemble Huawei MediaPad M2 10'', Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the brackets hold the connectors.

How to disassemble Huawei MediaPad M2 10'', Step 3/1 How to disassemble Huawei MediaPad M2 10'', Step 3/2 How to disassemble Huawei MediaPad M2 10'', Step 3/3

Step 3.

Disconnect the connectors of the display module and battery.

How to disassemble Huawei MediaPad M2 10'', Step 4/1 How to disassemble Huawei MediaPad M2 10'', Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Huawei MediaPad M2 10'', Step 5/1 How to disassemble Huawei MediaPad M2 10'', Step 5/2

Step 5.

Remove the brackets hold the commector and charging port.

How to disassemble Huawei MediaPad M2 10'', Step 6/1 How to disassemble Huawei MediaPad M2 10'', Step 6/2

Step 6.

Disconnect connectors and remove the inter-board cable with charging port.

How to disassemble Huawei MediaPad M2 10'', Step 7/1 How to disassemble Huawei MediaPad M2 10'', Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the buzzer (speaker) assemblies.

How to disassemble Huawei MediaPad M2 10'', Step 8/1 How to disassemble Huawei MediaPad M2 10'', Step 8/2 How to disassemble Huawei MediaPad M2 10'', Step 8/3

Step 8.

Disconnect the connector and remove the buzzer (speaker) assemblies.

How to disassemble Huawei MediaPad M2 10'', Step 9/1 How to disassemble Huawei MediaPad M2 10'', Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the main camera.

How to disassemble Huawei MediaPad M2 10'', Step 10/1 How to disassemble Huawei MediaPad M2 10'', Step 10/2

Step 10.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei MediaPad M2 10'', Step 11/1 How to disassemble Huawei MediaPad M2 10'', Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the bracket.

How to disassemble Huawei MediaPad M2 10'', Step 12/1 How to disassemble Huawei MediaPad M2 10'', Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the buzzer (speaker) assemblies.

How to disassemble Huawei MediaPad M2 10'', Step 13/1 How to disassemble Huawei MediaPad M2 10'', Step 13/2 How to disassemble Huawei MediaPad M2 10'', Step 13/3

Step 13.

Disconnect the connectors and remove the buzzer (speaker) assemblies.

How to disassemble Huawei MediaPad M2 10'', Step 14/1 How to disassemble Huawei MediaPad M2 10'', Step 14/2

Step 14.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holds the front (selfie) camera.

How to disassemble Huawei MediaPad M2 10'', Step 15/1 How to disassemble Huawei MediaPad M2 10'', Step 15/2

Step 15.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Huawei MediaPad M2 10'', Step 16/1 How to disassemble Huawei MediaPad M2 10'', Step 16/2

Step 16.

Disconnect connectors on the PCB.

How to disassemble Huawei MediaPad M2 10'', Step 17/1 How to disassemble Huawei MediaPad M2 10'', Step 17/2

Step 17.

Remove the PCB.

How to disassemble Huawei MediaPad M2 10'', Step 18/1 How to disassemble Huawei MediaPad M2 10'', Step 18/2 How to disassemble Huawei MediaPad M2 10'', Step 18/3

Step 18.

Parts are in the back cover.

Detailed disassembly instructions of Huawei MediaPad M2 10'' in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei MediaPad M2 10''
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has hard complexity and takes about minutes in time. Our manual is suitable for all models Huawei MediaPad M2 10'' — Huawei MediaPad M2 M2-A01L released for markets in different countries.
