Teardown difficulty:
Easy

Recommended tools

Disassembly/Repair of the mobile device Huawei MediaPad T1 8.0'' (Huawei MediaPad T1 8.0'' S8-701u) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Huawei MediaPad T1 8.0'', Step 1/1 How to disassemble Huawei MediaPad T1 8.0'', Step 1/2

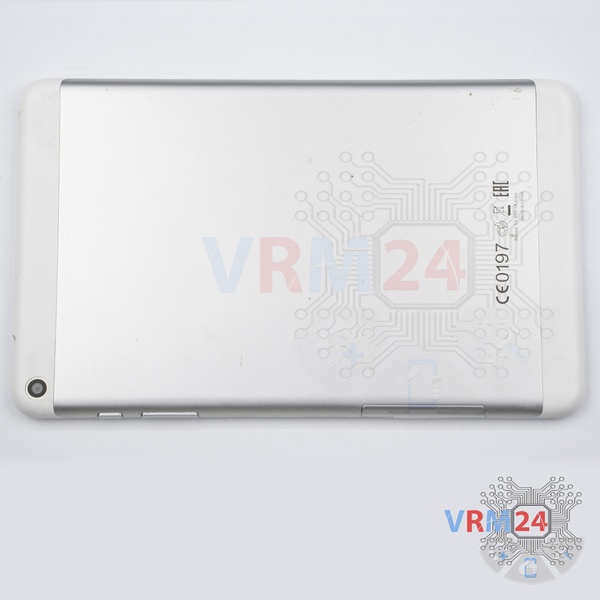

Step 1. Before disassembling!

⚠ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Huawei MediaPad T1 8.0'', Step 2/1 How to disassemble Huawei MediaPad T1 8.0'', Step 2/2 How to disassemble Huawei MediaPad T1 8.0'', Step 2/3

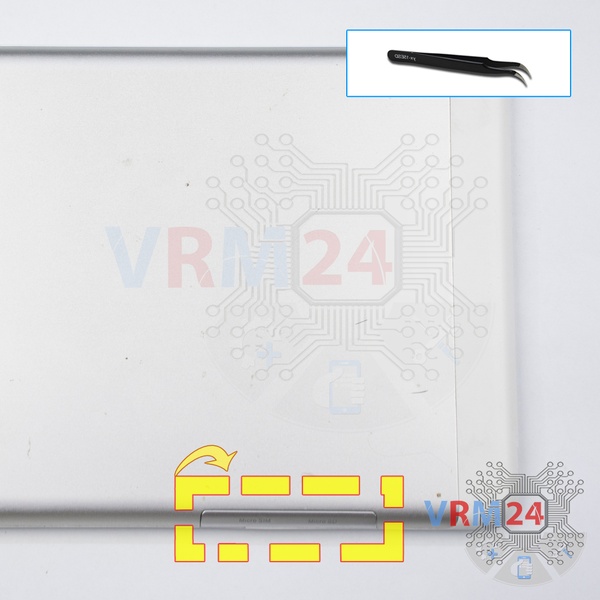

Step 2. Open the cards cover flap

Open the hatch (aka cards cover flap), hiding the SIM and Memory cards (Micro SD) trays.


How to disassemble Huawei MediaPad T1 8.0'', Step 3/1 How to disassemble Huawei MediaPad T1 8.0'', Step 3/2 How to disassemble Huawei MediaPad T1 8.0'', Step 3/3

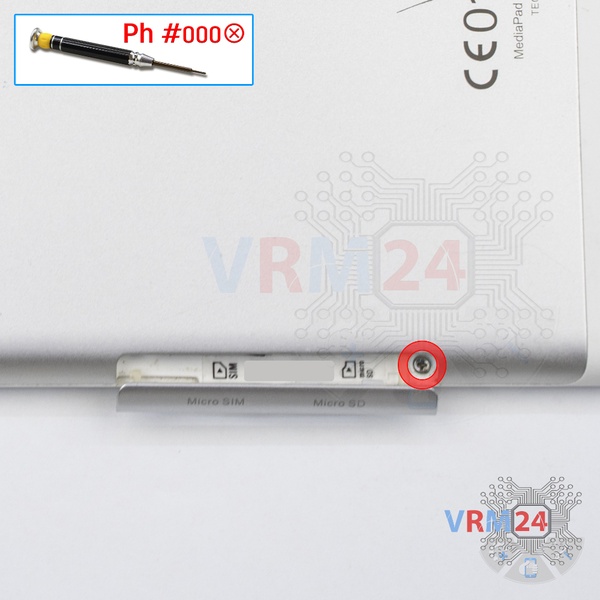

Step 3. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw securing the back cover.


How to disassemble Huawei MediaPad T1 8.0'', Step 4/1 How to disassemble Huawei MediaPad T1 8.0'', Step 4/2 How to disassemble Huawei MediaPad T1 8.0'', Step 4/3 How to disassemble Huawei MediaPad T1 8.0'', Step 4/4 How to disassemble Huawei MediaPad T1 8.0'', Step 4/5

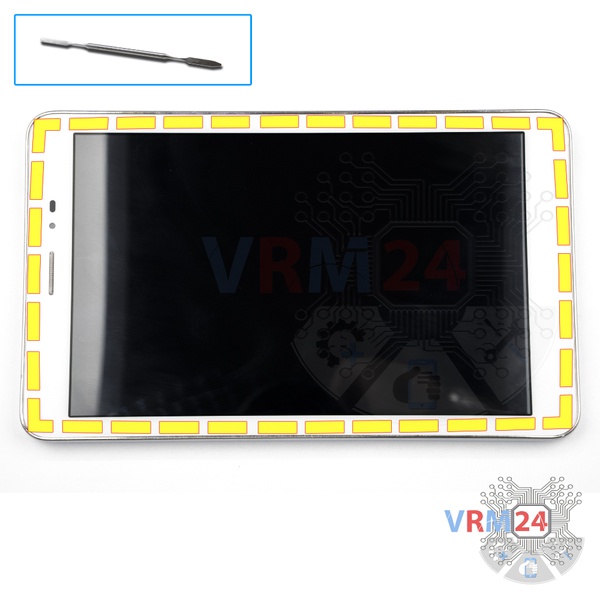

Step 4. Open the display module

Using a spudger or a plastic pick, carefully, around the edge, detach the display module clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠ī¸ Be careful when opening the display module from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Huawei MediaPad T1 8.0'', Step 5/1 How to disassemble Huawei MediaPad T1 8.0'', Step 5/2 How to disassemble Huawei MediaPad T1 8.0'', Step 5/3 How to disassemble Huawei MediaPad T1 8.0'', Step 5/4 How to disassemble Huawei MediaPad T1 8.0'', Step 5/5

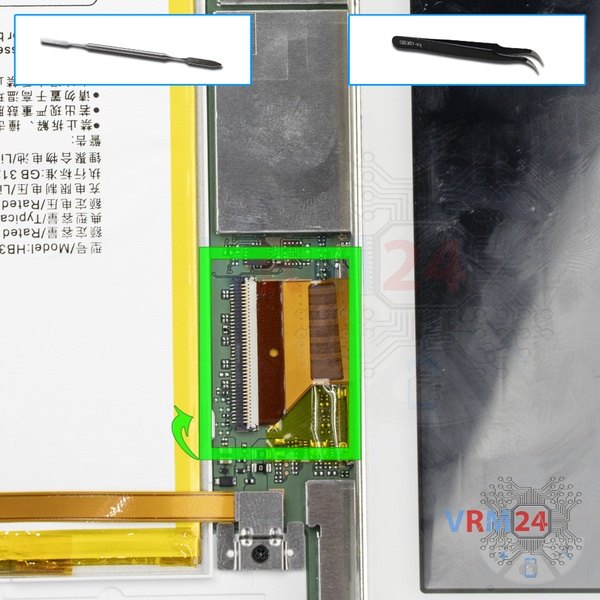

Step 5. Disconnect the connector

Pry up the connector and remove the display module.


How to disassemble Huawei MediaPad T1 8.0'', Step 6/1 How to disassemble Huawei MediaPad T1 8.0'', Step 6/2 How to disassemble Huawei MediaPad T1 8.0'', Step 6/3

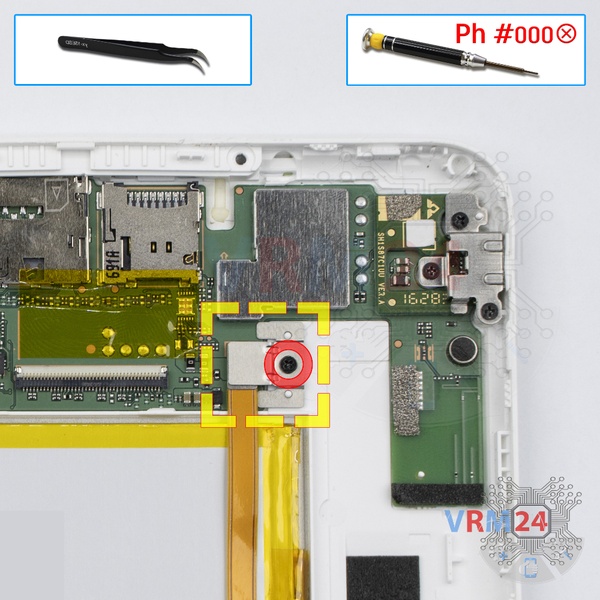

Step 6. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw and remove the bracket holding the battery connector.


How to disassemble Huawei MediaPad T1 8.0'', Step 7/1 How to disassemble Huawei MediaPad T1 8.0'', Step 7/2 How to disassemble Huawei MediaPad T1 8.0'', Step 7/3

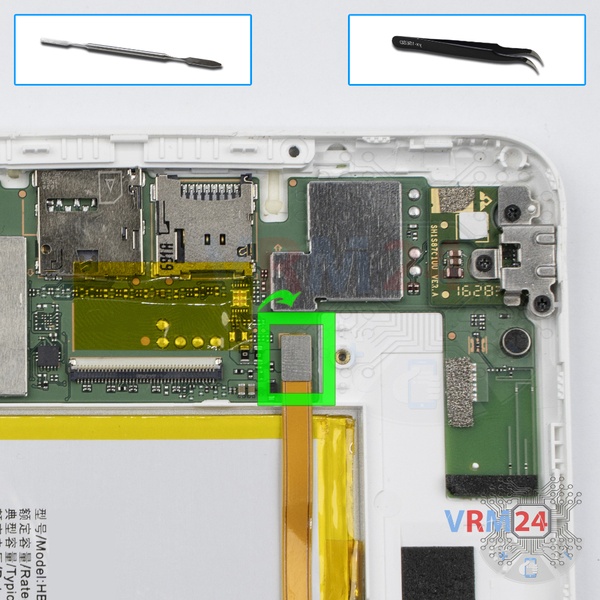

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹī¸ī¸ The Huawei MediaPad T1 8.0'' model has a battery HB3080G1EBW with 4800 mAh capacity (aka rechargeable battery).

⚠ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly. Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Huawei MediaPad T1 8.0'', Step 8/1 How to disassemble Huawei MediaPad T1 8.0'', Step 8/2 How to disassemble Huawei MediaPad T1 8.0'', Step 8/3 How to disassemble Huawei MediaPad T1 8.0'', Step 8/4

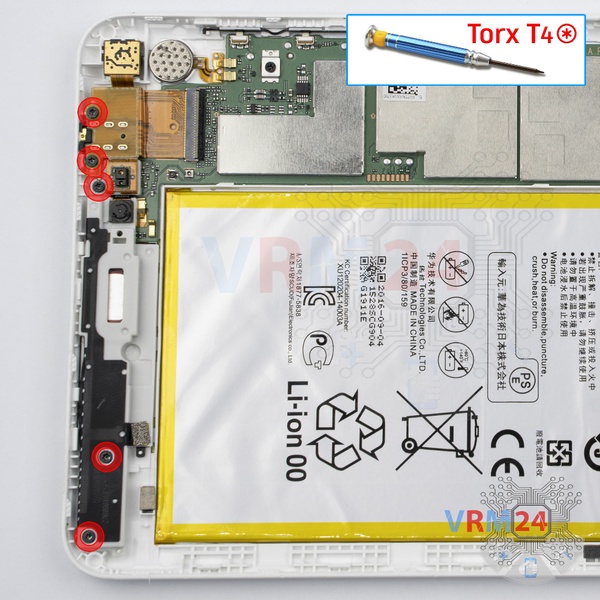

Step 8. Unscrew the screws

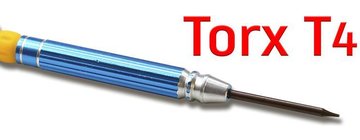

Using a screwdriver (Torx T4), unscrew 5 screws.


How to disassemble Huawei MediaPad T1 8.0'', Step 9/1 How to disassemble Huawei MediaPad T1 8.0'', Step 9/2 How to disassemble Huawei MediaPad T1 8.0'', Step 9/3

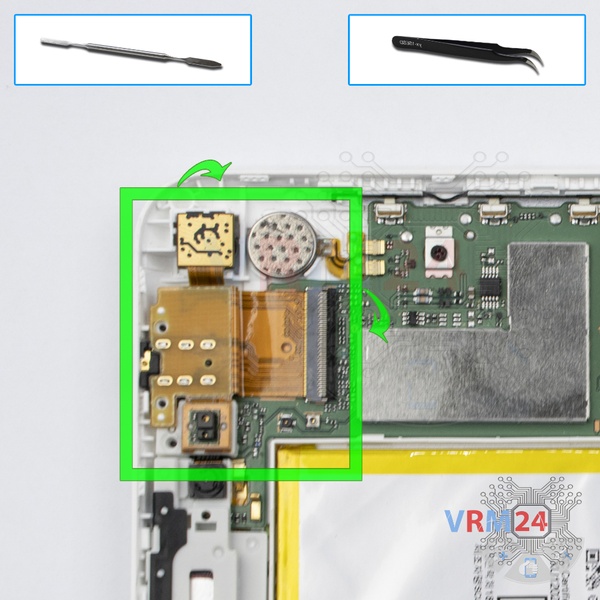

Step 9. Remove the rear camera

Pry up the connector and remove the assembly with the rear camera, proximity sensor, headphone jack socket.


How to disassemble Huawei MediaPad T1 8.0'', Step 10/1 How to disassemble Huawei MediaPad T1 8.0'', Step 10/2 How to disassemble Huawei MediaPad T1 8.0'', Step 10/3

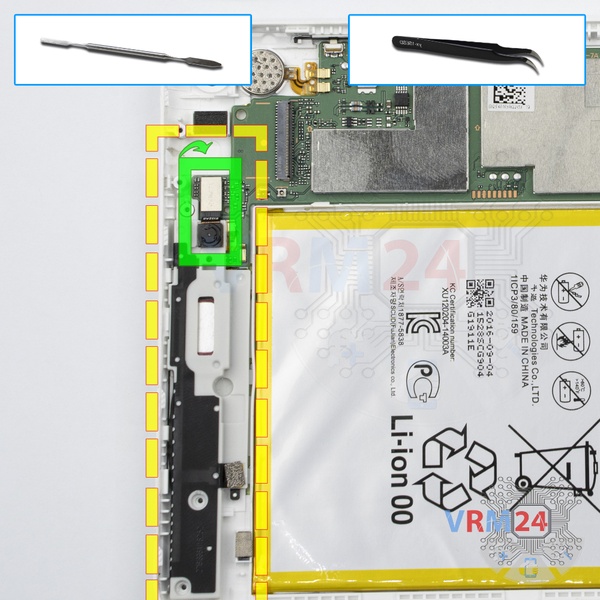

Step 10. Remove the front camera

Pry up the connector and remove the assembly with the front (selfie) camera, earpiece speaker.


How to disassemble Huawei MediaPad T1 8.0'', Step 11/1 How to disassemble Huawei MediaPad T1 8.0'', Step 11/2 How to disassemble Huawei MediaPad T1 8.0'', Step 11/3 How to disassemble Huawei MediaPad T1 8.0'', Step 11/4

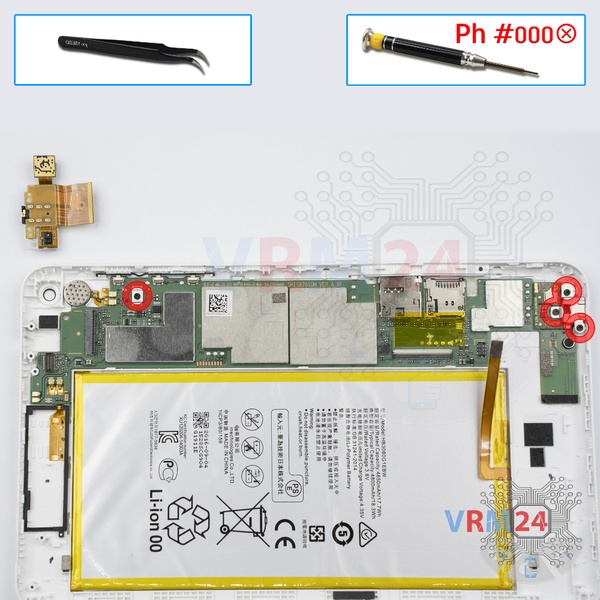

Step 11. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew four screws and remove the bracket securing the charging port.


How to disassemble Huawei MediaPad T1 8.0'', Step 12/1 How to disassemble Huawei MediaPad T1 8.0'', Step 12/2 How to disassemble Huawei MediaPad T1 8.0'', Step 12/3 How to disassemble Huawei MediaPad T1 8.0'', Step 12/4 How to disassemble Huawei MediaPad T1 8.0'', Step 12/5

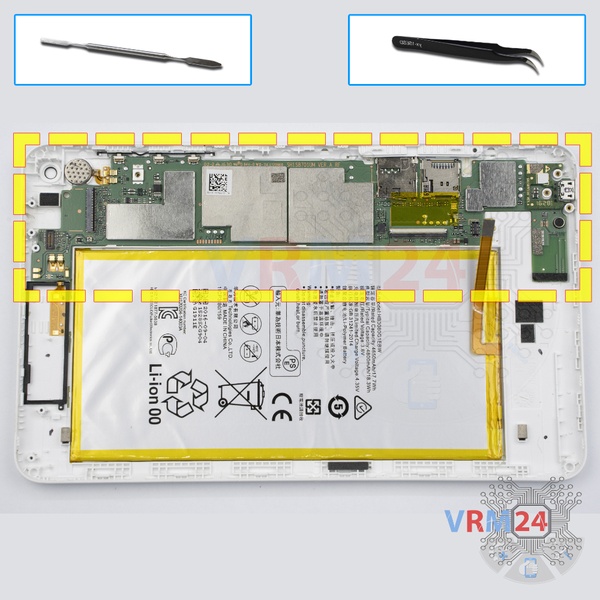

Step 12. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Huawei MediaPad T1 8.0'', Step 13/1 How to disassemble Huawei MediaPad T1 8.0'', Step 13/2 How to disassemble Huawei MediaPad T1 8.0'', Step 13/3

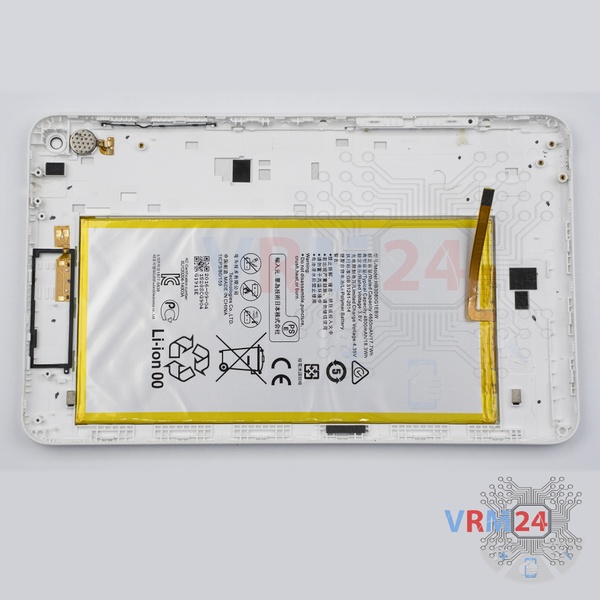

Step 13. In the housing remained

ℹī¸ī¸ In the housing remained: the battery, vibration motor.

Detailed disassembly instructions of Huawei MediaPad T1 8.0'' in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about minutes in time. Our manual is suitable for all models Huawei MediaPad T1 8.0'' — Huawei MediaPad T1 8.0'' S8-701u released for markets in different countries.
