Disassembly/Repair of the mobile device Huawei Nova Y61 (Huawei Nova Y61 EVE-LX9N) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Huawei Nova Y61, Step 1/1

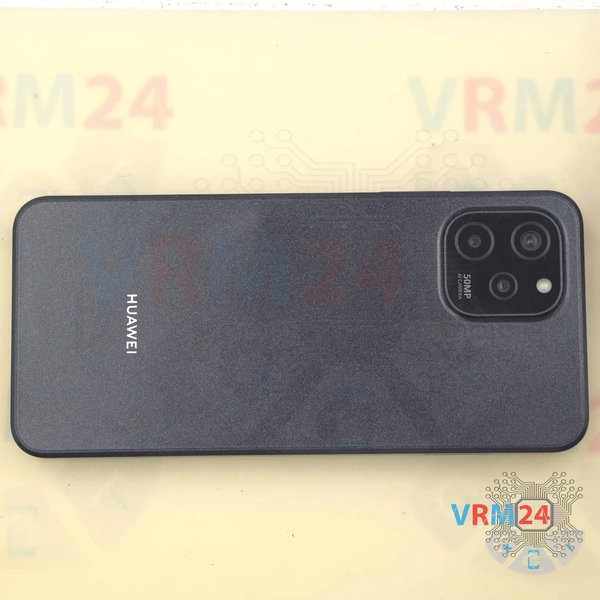

Step 1. Before disassembling!

⚠ī¸ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Huawei Nova Y61, Step 2/1 How to disassemble Huawei Nova Y61, Step 2/2 How to disassemble Huawei Nova Y61, Step 2/3

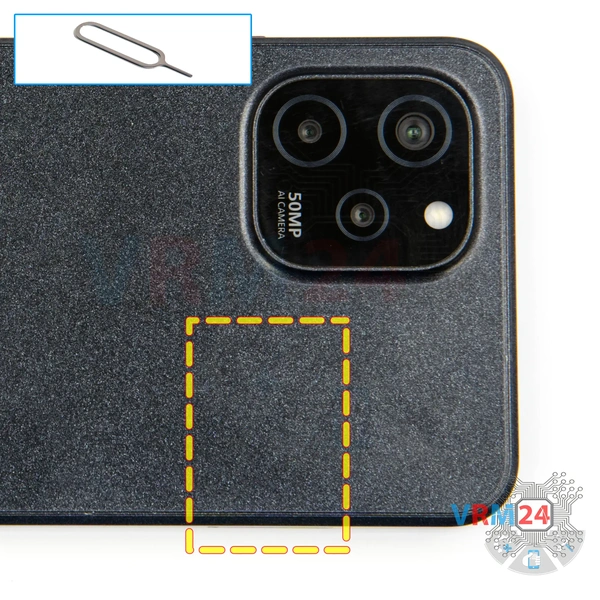

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ī¸ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Huawei Nova Y61, Step 3/1 How to disassemble Huawei Nova Y61, Step 3/2 How to disassemble Huawei Nova Y61, Step 3/3 How to disassemble Huawei Nova Y61, Step 3/4 How to disassemble Huawei Nova Y61, Step 3/5

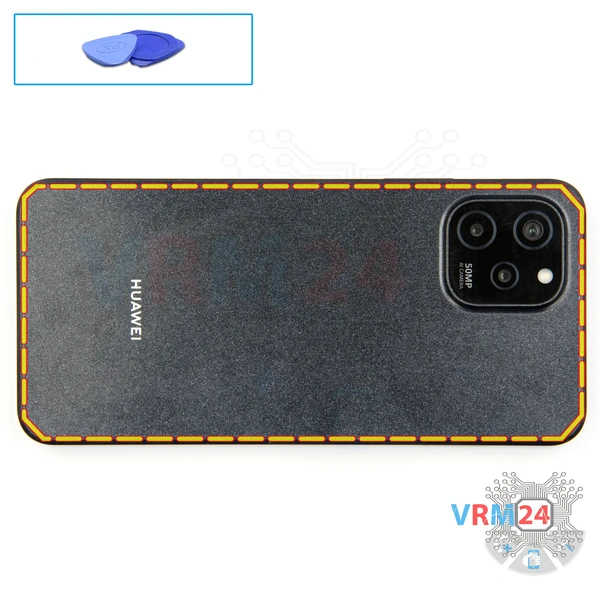

Step 3. Open the back cover

We move on to detaching the back cover.

To remove the back cover, first we will use a plastic film. We insert it into the gap between the middle cover and the back cover and run it along the length of the middle cover, detaching a few clips and creating a gap. After that we can use a thicker tool. We insert it into the already formed gap and run it along detaching the clips. Always need to be careful in the area of the side buttons and fingerprint sensor, because in this area may be located cables and they can be damaged. And of course we need to be careful at the corners, because the cover is held especially tightly at the corners.

The fingerprint sensor cable is located on one of the sides and goes from the motherboard to the back cover. So, we're going to carefully open and flip the cover over so that we don't damage the cable.


How to disassemble Huawei Nova Y61, Step 4/1 How to disassemble Huawei Nova Y61, Step 4/2 How to disassemble Huawei Nova Y61, Step 4/3

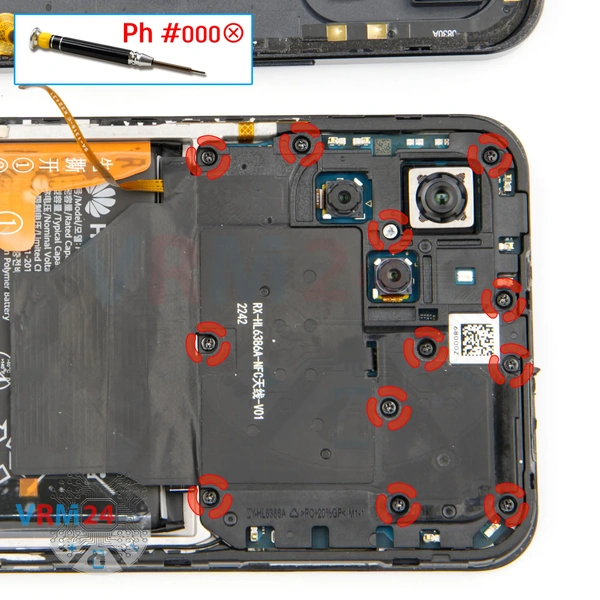

Step 4. Unscrew the screws

We need to unscrew the twelve screws on the top, we use a 1.5mm Phillips screwdriver or #000.


How to disassemble Huawei Nova Y61, Step 5/1 How to disassemble Huawei Nova Y61, Step 5/2 How to disassemble Huawei Nova Y61, Step 5/3

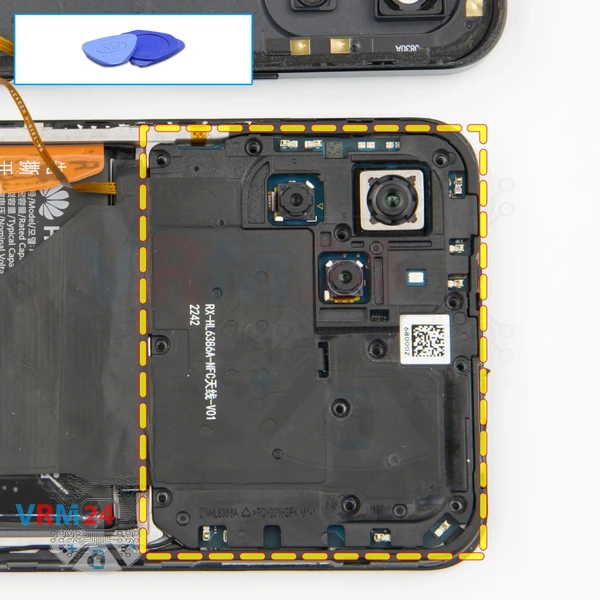

Step 5. Open the cover

Carefully use a non-metal tool (we use tweezers with ceramic tips) to hook around the edge and open the cover hiding the motherboard. On this cover us located flashlight elements, tracks(lines) for speaker.


How to disassemble Huawei Nova Y61, Step 6/1 How to disassemble Huawei Nova Y61, Step 6/2 How to disassemble Huawei Nova Y61, Step 6/3

Step 6. Disconnect the battery connector

Disconnect the battery connector as soon as you can. Use a non-metallic or plastic tool to avoid any damage.

ℹī¸ī¸ The Huawei nova Y61 model has a battery HB496590EFW-F with a capacity of 5000 mAh (also known as a rechargeable battery).


How to disassemble Huawei Nova Y61, Step 7/1 How to disassemble Huawei Nova Y61, Step 7/2 How to disassemble Huawei Nova Y61, Step 7/3

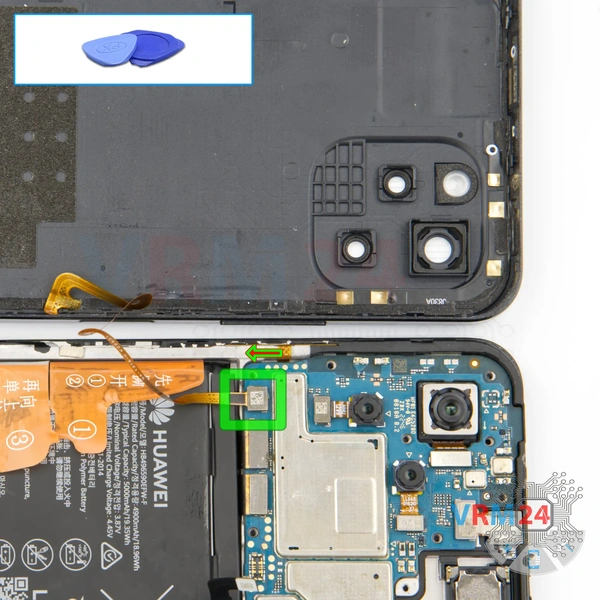

Step 7. Disconnect the connector

Then we disconnect the fingerprint sensor connector and remove the back cover.


How to disassemble Huawei Nova Y61, Step 8/1 How to disassemble Huawei Nova Y61, Step 8/2 How to disassemble Huawei Nova Y61, Step 8/3

Step 8. Unscrew the screws

And we move on to unscrewing the screws at the bottom. The screwdriver is the same 1.5mm Phillips. The screws look the same, but we still recommend placing them on a special surface in an easy to remember order for reassembly.


How to disassemble Huawei Nova Y61, Step 9/1 How to disassemble Huawei Nova Y61, Step 9/2 How to disassemble Huawei Nova Y61, Step 9/3

Step 9. Open the cover

Carefully pry at the edge detaching the cover at the bottom that hides the sub-board.


How to disassemble Huawei Nova Y61, Step 10/1 How to disassemble Huawei Nova Y61, Step 10/2

Step 10. Disconnect the connectors

Disconnect the coaxial cable connector and the inter-board cable connector on the sub-board.


How to disassemble Huawei Nova Y61, Step 11/1 How to disassemble Huawei Nova Y61, Step 11/2 How to disassemble Huawei Nova Y61, Step 11/3

Step 11. Remove the daughterboard

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹī¸ī¸ The sub-board contains a charging port (Micro-USB), microphone, headset port, spring contacts for the vibration motor, and an antenna unit.

⚠ī¸ī¸ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Huawei Nova Y61, Step 12/1 How to disassemble Huawei Nova Y61, Step 12/2

Step 12. Disconnect the connectors

Move on to disconnecting the display connector and the inter-board cable connector.

We also disconnect the coaxial cable connector and pull the cable aside.


How to disassemble Huawei Nova Y61, Step 13/1 How to disassemble Huawei Nova Y61, Step 13/2 How to disassemble Huawei Nova Y61, Step 13/3

Step 13. Remove the cameras

Then we can remove the rear cameras. The small cameras are attached to the motherboard with holders, but the large one may be taped to the display frame. And we disconnect the connector and remove the front camera.


How to disassemble Huawei Nova Y61, Step 14/1 How to disassemble Huawei Nova Y61, Step 14/2 How to disassemble Huawei Nova Y61, Step 14/3

Step 14. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠ī¸ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Huawei Nova Y61, Step 15/1 How to disassemble Huawei Nova Y61, Step 15/2 How to disassemble Huawei Nova Y61, Step 15/3 How to disassemble Huawei Nova Y61, Step 15/4 How to disassemble Huawei Nova Y61, Step 15/5 How to disassemble Huawei Nova Y61, Step 15/6

Step 15. Remove the battery

Finally we move on to detaching the battery. We have traditionally for Huawei three brown tabs with numbers 1,2,3. And we need to unwrap the outer ones, and we need to pull the middle one.

We hold the display frame with one hand and pull the middle tab with the other.

As we can see, the battery is also held on the transparent protective coating, which protects the display cable.


How to disassemble Huawei Nova Y61, Step 16/1 How to disassemble Huawei Nova Y61, Step 16/2 How to disassemble Huawei Nova Y61, Step 16/3 How to disassemble Huawei Nova Y61, Step 16/4

Step 16. In the display frame remained

And in the display frame we still have the speaker, vibration motor, display cable and coaxial cable.

Detailed disassembly instructions of Huawei Nova Y61 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about minutes in time. Our manual is suitable for all models Huawei Nova Y61 — Huawei Nova Y61 EVE-LX9N released for markets in different countries.
