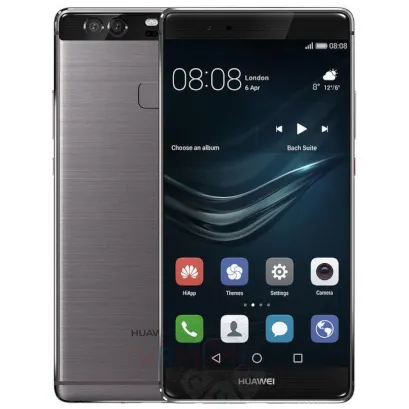

Huawei P9 Plus
Huawei P9 Plus
Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei P9 Plus (Huawei P9 Plus VIE-L09 (Single SIM), VIE-L29 (Dual SIM)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei P9 Plus, Step 1/1 How to disassemble Huawei P9 Plus, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei P9 Plus, Step 2/1 How to disassemble Huawei P9 Plus, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts at the end of the phone.

How to disassemble Huawei P9 Plus, Step 3/1 How to disassemble Huawei P9 Plus, Step 3/2

Step 3.

Open the back cover and move it aside carefully.

How to disassemble Huawei P9 Plus, Step 4/1 How to disassemble Huawei P9 Plus, Step 4/2

Step 4.

Pry up the power/volume buttons cable connector located in the back cover and turn it over.

How to disassemble Huawei P9 Plus, Step 5/1 How to disassemble Huawei P9 Plus, Step 5/2

Step 5.

Pry up the fingerprint sensor connector and remove the cover.

How to disassemble Huawei P9 Plus, Step 6/1 How to disassemble Huawei P9 Plus, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holding the connectors.

How to disassemble Huawei P9 Plus, Step 7/1

Step 7.

Disconnect the battery connector. The battery model of Huawei P9 Plus is HB376883ECW.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei P9 Plus, Step 8/1 How to disassemble Huawei P9 Plus, Step 8/2

Step 8.

Disconnect connectors and remove the coaxial cable.

How to disassemble Huawei P9 Plus, Step 9/1 How to disassemble Huawei P9 Plus, Step 9/2

Step 9.

Disconnect connectors on the daughterboard.

How to disassemble Huawei P9 Plus, Step 10/1 How to disassemble Huawei P9 Plus, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the daughterboard.

How to disassemble Huawei P9 Plus, Step 11/1 How to disassemble Huawei P9 Plus, Step 11/2

Step 11.

Remove the bracket.

How to disassemble Huawei P9 Plus, Step 12/1 How to disassemble Huawei P9 Plus, Step 12/2

Step 12.

Disconnect connectors and remove the inter-board cable.

How to disassemble Huawei P9 Plus, Step 13/1 How to disassemble Huawei P9 Plus, Step 13/2

Step 13.

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Huawei P9 Plus, Step 14/1 How to disassemble Huawei P9 Plus, Step 14/2

Step 14.

Remove the daughterboard, also known as sub-board.

How to disassemble Huawei P9 Plus, Step 15/1 How to disassemble Huawei P9 Plus, Step 15/2

Step 15.

Pry and remove the buzzer (loudspeaker) assembly.

How to disassemble Huawei P9 Plus, Step 16/1 How to disassemble Huawei P9 Plus, Step 16/2

Step 16.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the brackets holding the connectors.

How to disassemble Huawei P9 Plus, Step 17/1 How to disassemble Huawei P9 Plus, Step 17/2

Step 17.

Disconnect connectors on PCB and remove the assembly of two rear cameras. Also, remove the front (selfie) camera.

How to disassemble Huawei P9 Plus, Step 18/1

Step 18.

Disconnect connectors on the PCB.

How to disassemble Huawei P9 Plus, Step 19/1 How to disassemble Huawei P9 Plus, Step 19/2

Step 19.

Remove the PCB.

How to disassemble Huawei P9 Plus, Step 20/1 How to disassemble Huawei P9 Plus, Step 20/2 How to disassemble Huawei P9 Plus, Step 20/3

Step 20.

Parts are in the frame of the display module.

Detailed disassembly instructions of Huawei P9 Plus in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei P9 Plus
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Huawei P9 Plus — Huawei P9 Plus VIE-L09 (Single SIM), VIE-L29 (Dual SIM) released for markets in different countries.
