Disassembly of the mobile device Huawei Y5 (2017) (Huawei Y5 (2017) MYA-U29) with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Huawei Y5 (2017), Step 1/1

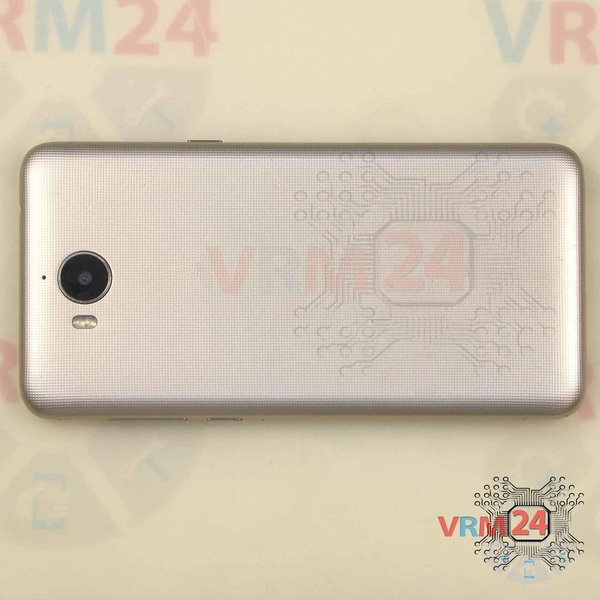

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Huawei Y5 (2017), Step 2/1 How to disassemble Huawei Y5 (2017), Step 2/2 How to disassemble Huawei Y5 (2017), Step 2/3 How to disassemble Huawei Y5 (2017), Step 2/4

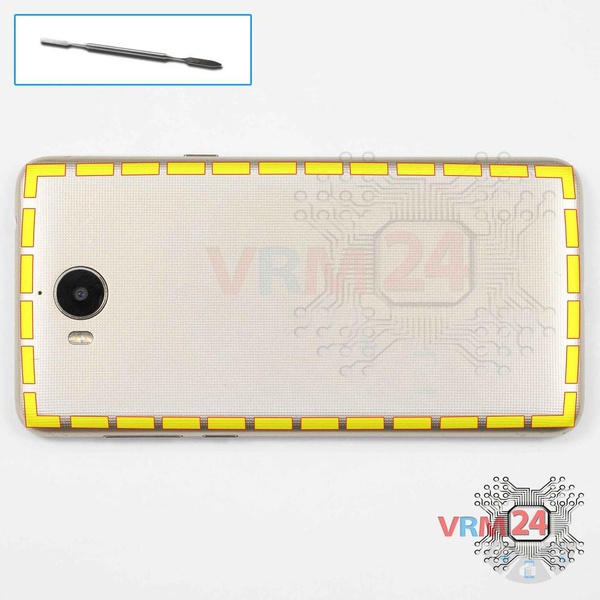

Step 2. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Huawei Y5 (2017), Step 3/1 How to disassemble Huawei Y5 (2017), Step 3/2 How to disassemble Huawei Y5 (2017), Step 3/3 How to disassemble Huawei Y5 (2017), Step 3/4 How to disassemble Huawei Y5 (2017), Step 3/5

Step 3. Unscrew the screws

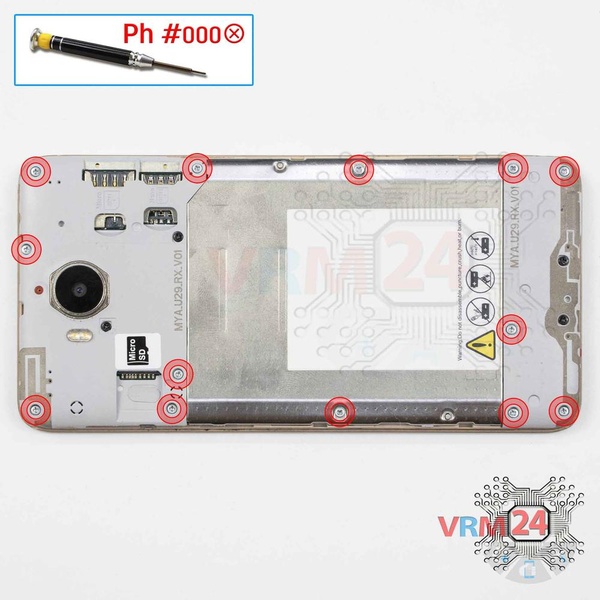

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 short screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Huawei Y5 (2017), Step 4/1 How to disassemble Huawei Y5 (2017), Step 4/2

Step 4. Unscrew the screws

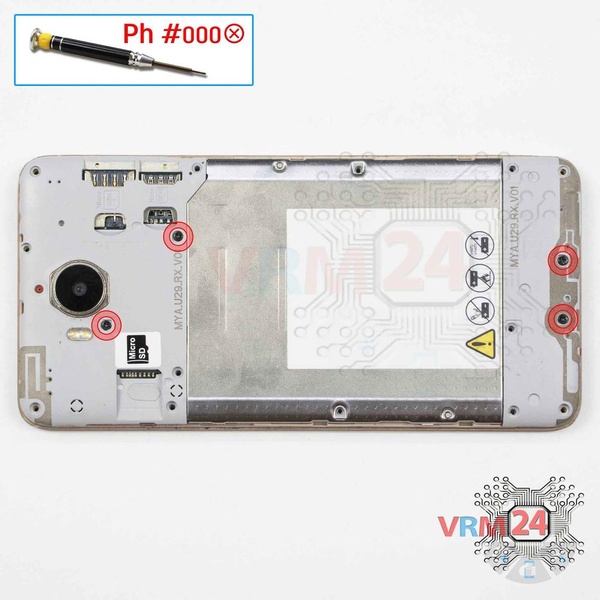

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 long screws.


How to disassemble Huawei Y5 (2017), Step 5/1 How to disassemble Huawei Y5 (2017), Step 5/2 How to disassemble Huawei Y5 (2017), Step 5/3 How to disassemble Huawei Y5 (2017), Step 5/4

Step 5. Open the covers

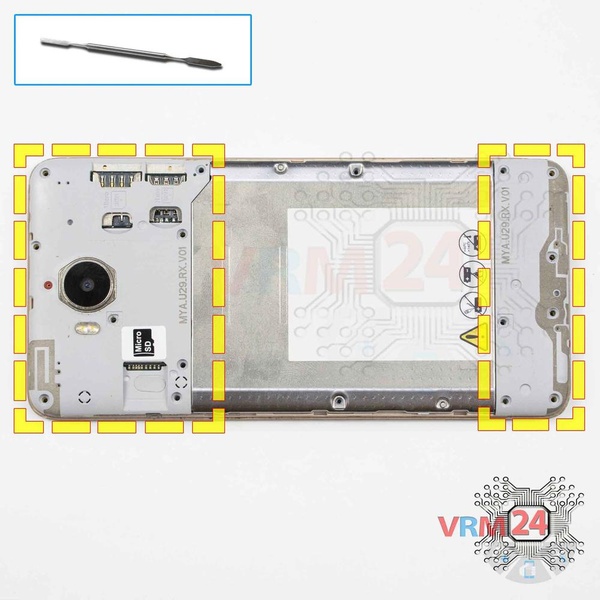

Remove the cover with antennas that protect the printed circuit board (PCB) and assembly with a loudspeaker. Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

ℹ️️ On the upper cover, you can see the metalized coating on the plastic in the form of tracks and contact pads. These are Wi-Fi, Bluetooth, and GPS antennas.

⚠️ It is crucial while reassembling, checking the spring contacts on the board, and the contact pads on the cover match and touch. Otherwise, signal loss or signal may be quite weak.


How to disassemble Huawei Y5 (2017), Step 6/1 How to disassemble Huawei Y5 (2017), Step 6/2 How to disassemble Huawei Y5 (2017), Step 6/3

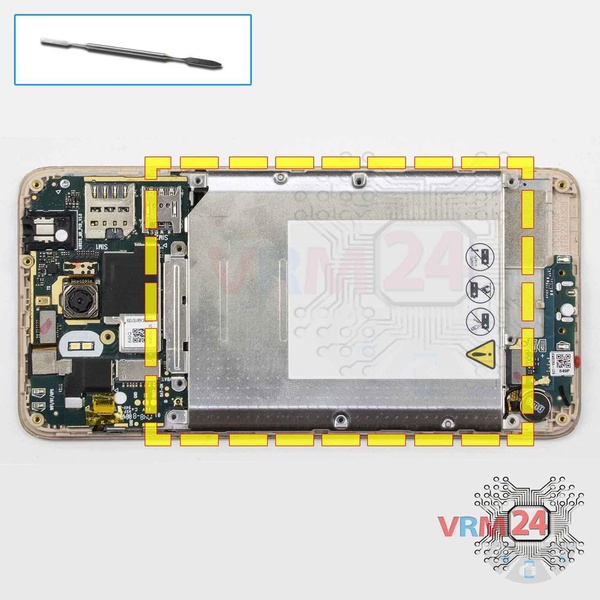

Step 6. Open the cover

Remove the middle cover hiding the battery.


How to disassemble Huawei Y5 (2017), Step 7/1 How to disassemble Huawei Y5 (2017), Step 7/2

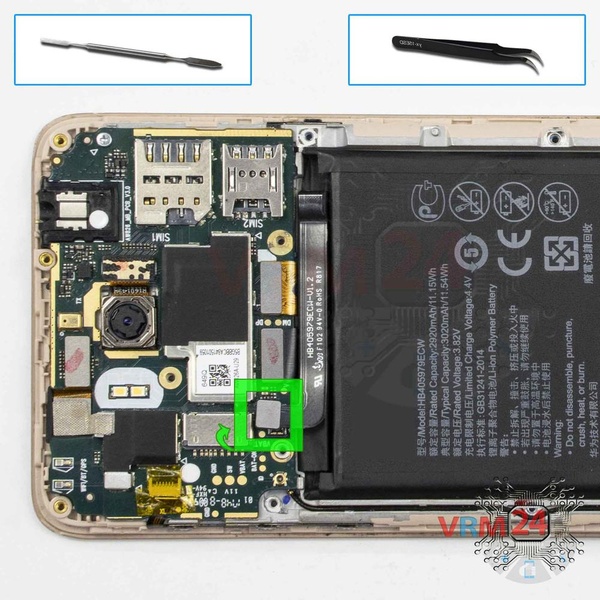

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Huawei Y5 (2017) MYA-U29 model has a battery HB405979ECW with 3020 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Huawei Y5 (2017), Step 8/1 How to disassemble Huawei Y5 (2017), Step 8/2

Step 8. Disconnect the connectors

Disconnect the coaxial cable connector, inter-board sub-screen cable on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Huawei Y5 (2017), Step 9/1 How to disassemble Huawei Y5 (2017), Step 9/2 How to disassemble Huawei Y5 (2017), Step 9/3

Step 9. Remove the daughterboard

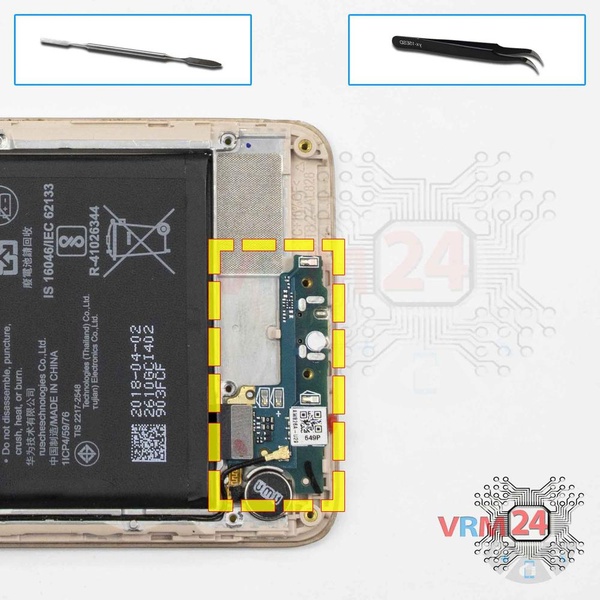

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️️ The board contains a charging port (Micro USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.


How to disassemble Huawei Y5 (2017), Step 10/1 How to disassemble Huawei Y5 (2017), Step 10/2 How to disassemble Huawei Y5 (2017), Step 10/3 How to disassemble Huawei Y5 (2017), Step 10/4

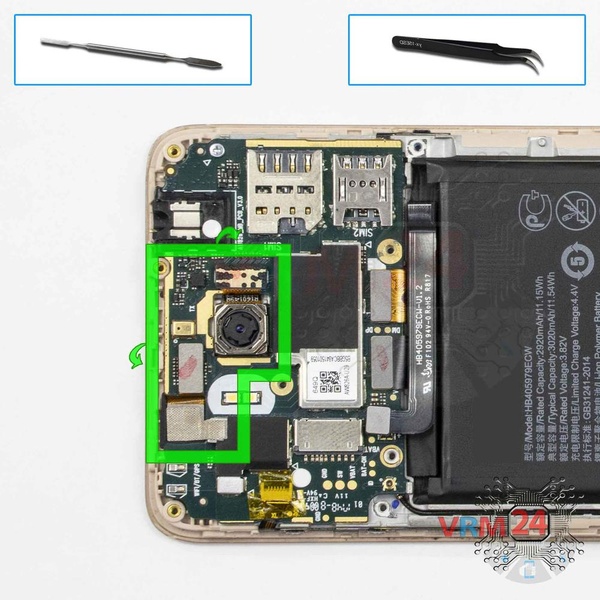

Step 10. Remove the cameras

Disconnect the connectors, remove the front (selfie) and rear cameras.


How to disassemble Huawei Y5 (2017), Step 11/1 How to disassemble Huawei Y5 (2017), Step 11/2 How to disassemble Huawei Y5 (2017), Step 11/3

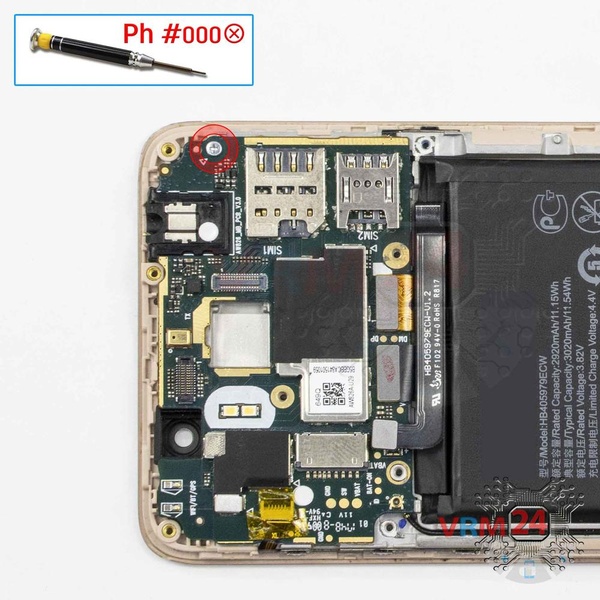

Step 11. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw securing the motherboard.


How to disassemble Huawei Y5 (2017), Step 12/1 How to disassemble Huawei Y5 (2017), Step 12/2 How to disassemble Huawei Y5 (2017), Step 12/3

Step 12. Disconnect the connectors

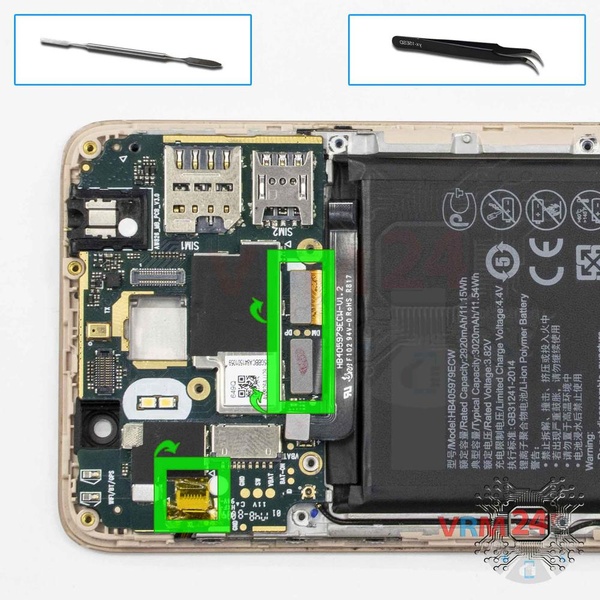

Pry up the connectors of power volume buttons cable, display module cable, inter-board cable.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Huawei Y5 (2017), Step 13/1 How to disassemble Huawei Y5 (2017), Step 13/2 How to disassemble Huawei Y5 (2017), Step 13/3

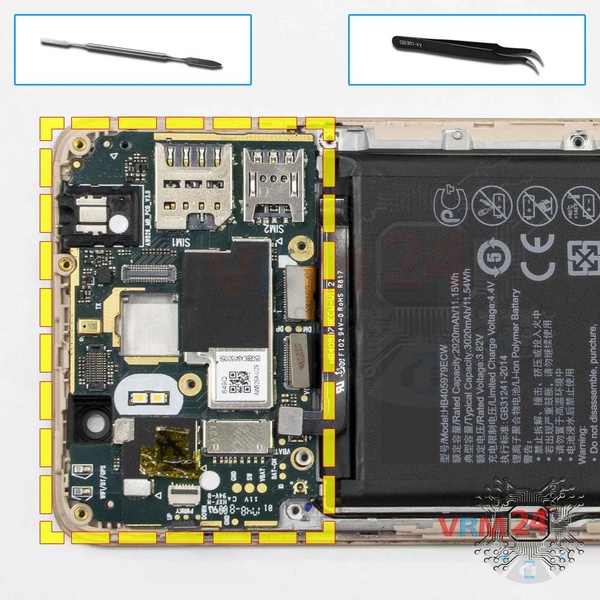

Step 13. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

⚠️ Coaxial cable connects to the PCB from the inside.


How to disassemble Huawei Y5 (2017), Step 14/1 How to disassemble Huawei Y5 (2017), Step 14/2

Step 14. Disconnect the connector

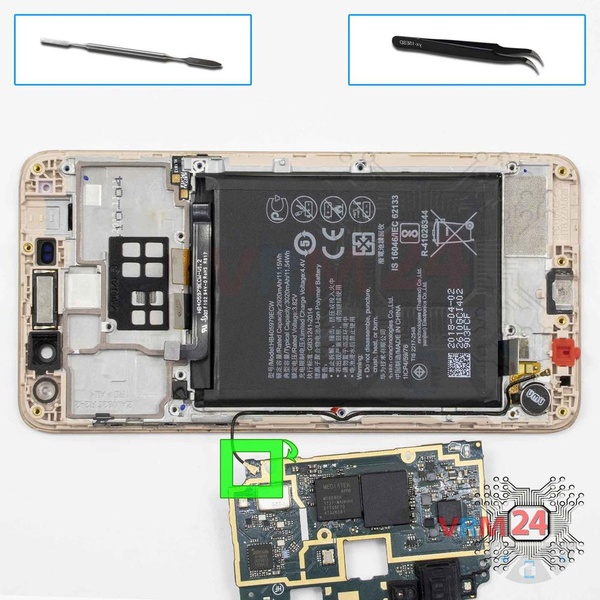

Disconnect coaxial cable connector.


How to disassemble Huawei Y5 (2017), Step 15/1 How to disassemble Huawei Y5 (2017), Step 15/2 How to disassemble Huawei Y5 (2017), Step 15/3

Step 15. In the display frame remained

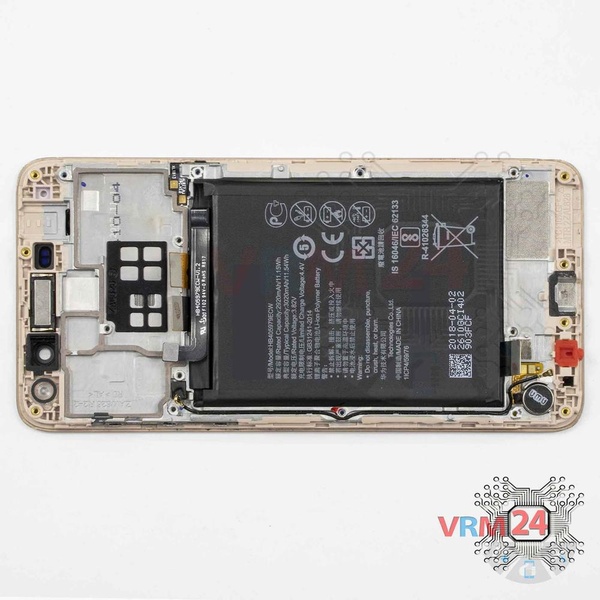

ℹ️️ In the display frame remained: the earpiece speaker, battery, coaxial cable, vibration motor.

Detailed disassembly instructions of Huawei Y5 (2017) in the video, made by our mobile repair & service center:
