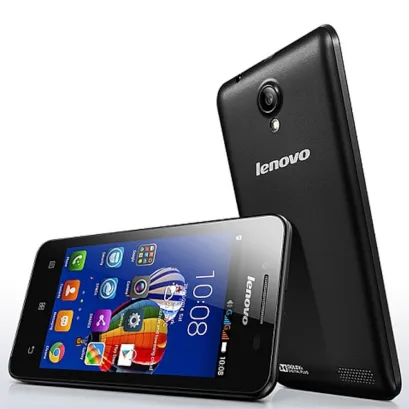

Lenovo A319 RocStar
Lenovo A319 RocStar
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo A319 RocStar with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Lenovo A319 RocStar, Step 1/1 How to disassemble Lenovo A319 RocStar, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo A319 RocStar, Step 2/1 How to disassemble Lenovo A319 RocStar, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo A319 RocStar, Step 3/1 How to disassemble Lenovo A319 RocStar, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Lenovo A319 RocStar, Step 4/1 How to disassemble Lenovo A319 RocStar, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo A319 RocStar, Step 5/1 How to disassemble Lenovo A319 RocStar, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Lenovo A319 RocStar, Step 6/1 How to disassemble Lenovo A319 RocStar, Step 6/2 How to disassemble Lenovo A319 RocStar, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo A319 RocStar, Step 7/1 How to disassemble Lenovo A319 RocStar, Step 7/2 How to disassemble Lenovo A319 RocStar, Step 7/3 How to disassemble Lenovo A319 RocStar, Step 7/4 How to disassemble Lenovo A319 RocStar, Step 7/5

Step 7.

Disconnect connectors on the PCB and pry up vibration motor, speaker (buzzer) & power & volume buttons flex cable.

How to disassemble Lenovo A319 RocStar, Step 8/1 How to disassemble Lenovo A319 RocStar, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Lenovo A319 RocStar, Step 9/1 How to disassemble Lenovo A319 RocStar, Step 9/2 How to disassemble Lenovo A319 RocStar, Step 9/3

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo A319 RocStar in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo A319 RocStar
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Lenovo A319 RocStar released for markets in different countries.
