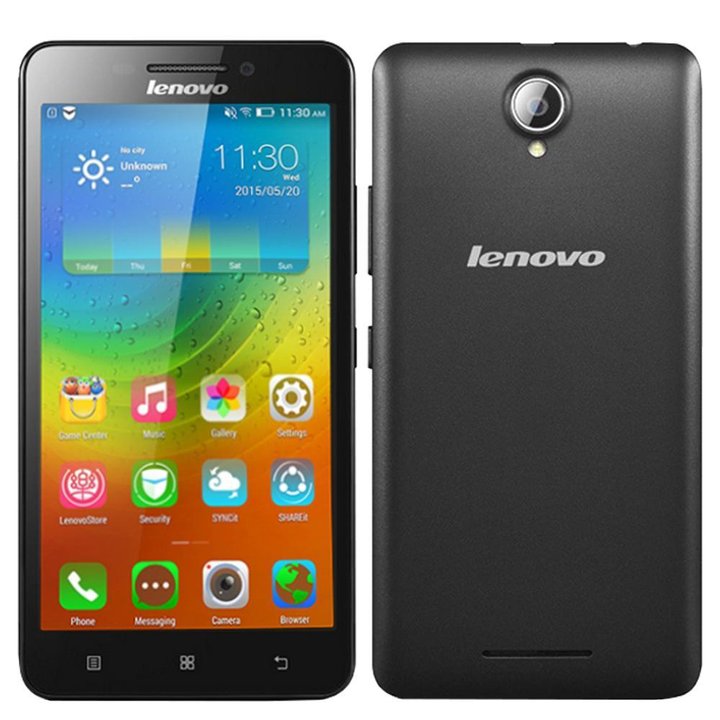

Lenovo A5000
Lenovo A5000
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo A5000 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Lenovo A5000, Step 1/1 How to disassemble Lenovo A5000, Step 1/2

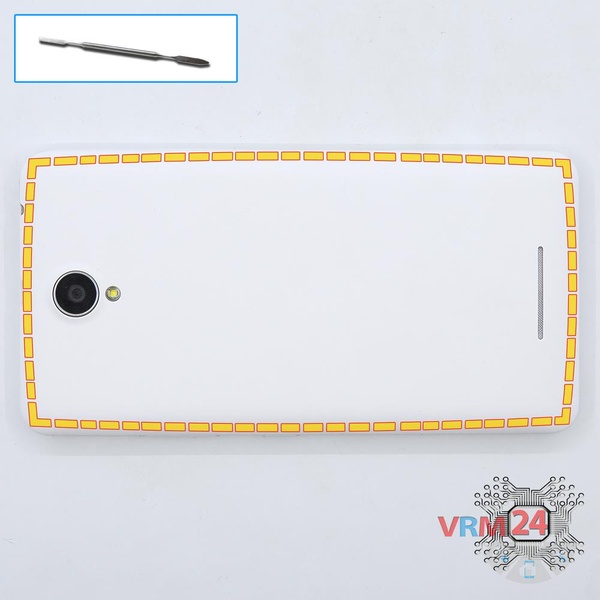

Step 1.

Open the back cover.

How to disassemble Lenovo A5000, Step 2/1 How to disassemble Lenovo A5000, Step 2/2

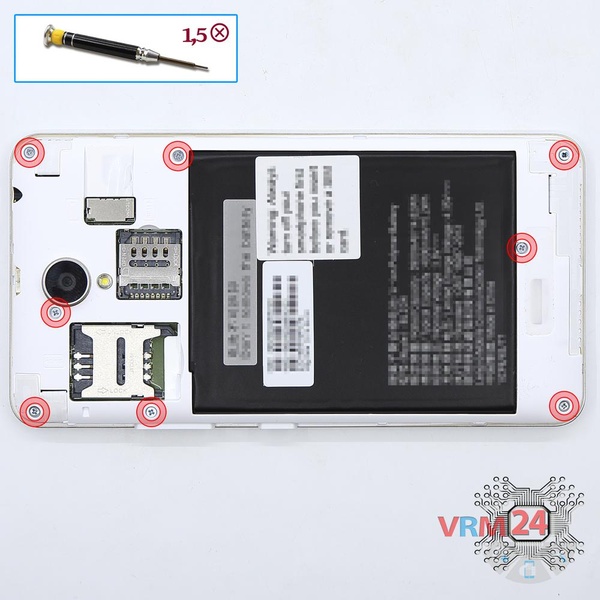

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Lenovo A5000, Step 3/1 How to disassemble Lenovo A5000, Step 3/2

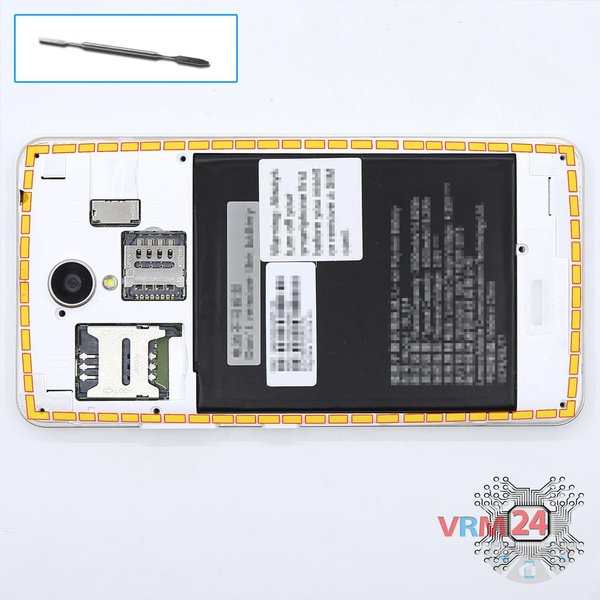

Step 3.

Pry and remove the middle frame.

How to disassemble Lenovo A5000, Step 4/1 How to disassemble Lenovo A5000, Step 4/2

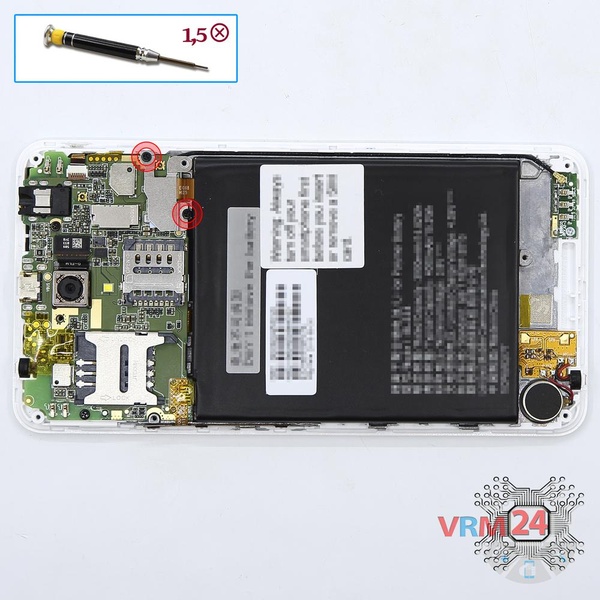

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the battery connector.

How to disassemble Lenovo A5000, Step 5/1 How to disassemble Lenovo A5000, Step 5/2 How to disassemble Lenovo A5000, Step 5/3

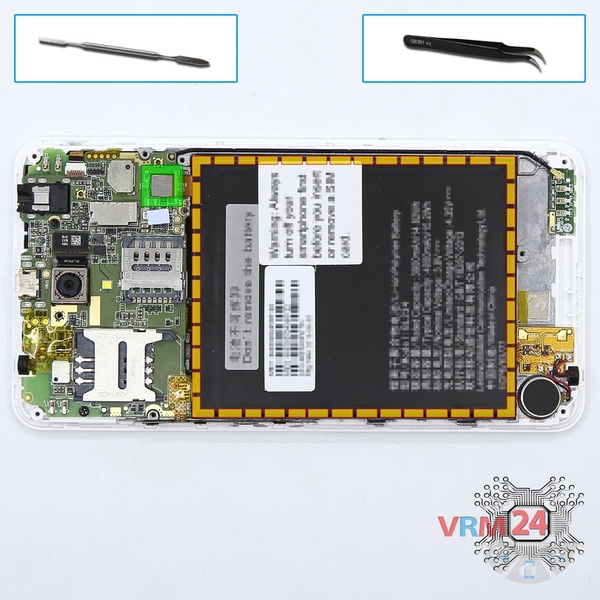

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Lenovo A5000, Step 6/1 How to disassemble Lenovo A5000, Step 6/2

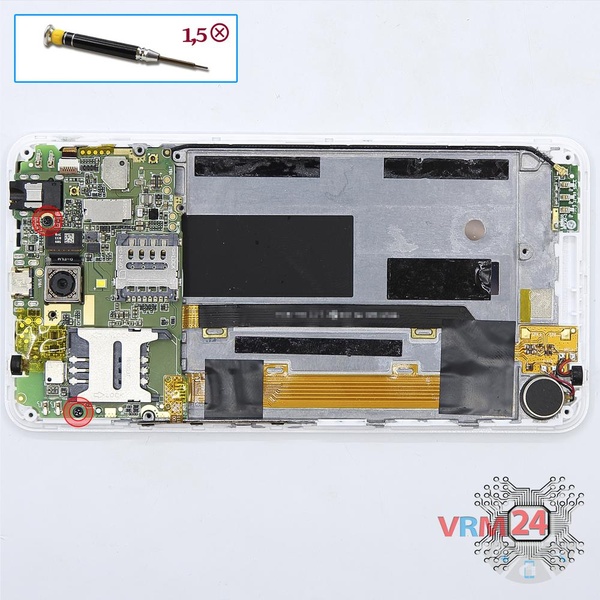

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Lenovo A5000, Step 7/1 How to disassemble Lenovo A5000, Step 7/2

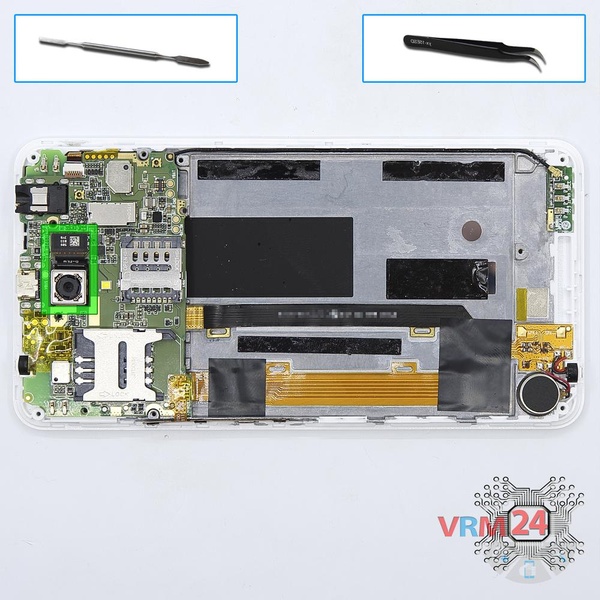

Step 7.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo A5000, Step 8/1 How to disassemble Lenovo A5000, Step 8/2

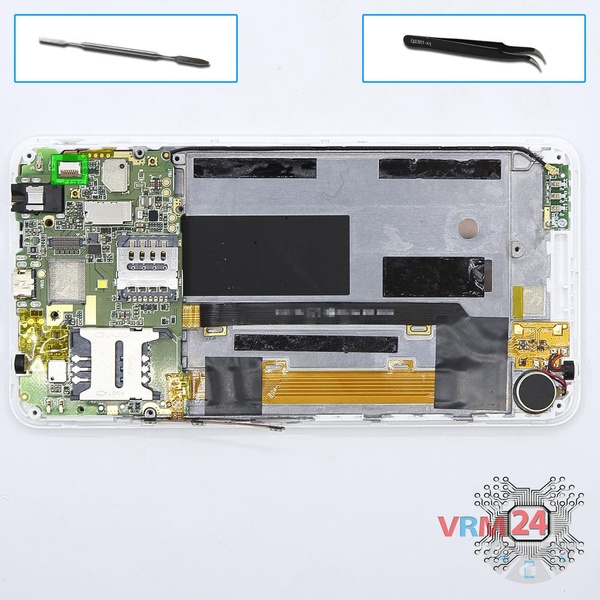

Step 8.

Disconnect a connector on the PCB.

How to disassemble Lenovo A5000, Step 9/1 How to disassemble Lenovo A5000, Step 9/2 How to disassemble Lenovo A5000, Step 9/3

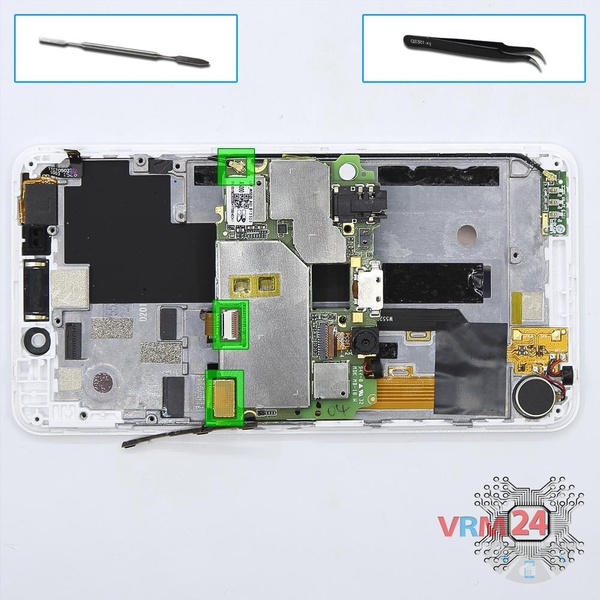

Step 9.

Overturn the board, disconnect connectors from the inside and remove it.

How to disassemble Lenovo A5000, Step 10/1 How to disassemble Lenovo A5000, Step 10/2 How to disassemble Lenovo A5000, Step 10/3

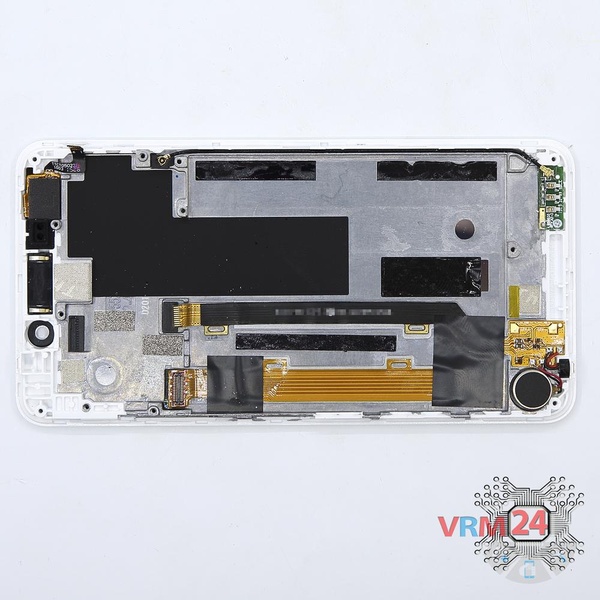

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo A5000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo A5000
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo A5000 released for markets in different countries.
