Lenovo A606
Lenovo A606
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo A606 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo A606, Step 1/1 How to disassemble Lenovo A606, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo A606, Step 2/1 How to disassemble Lenovo A606, Step 2/2

Step 2.

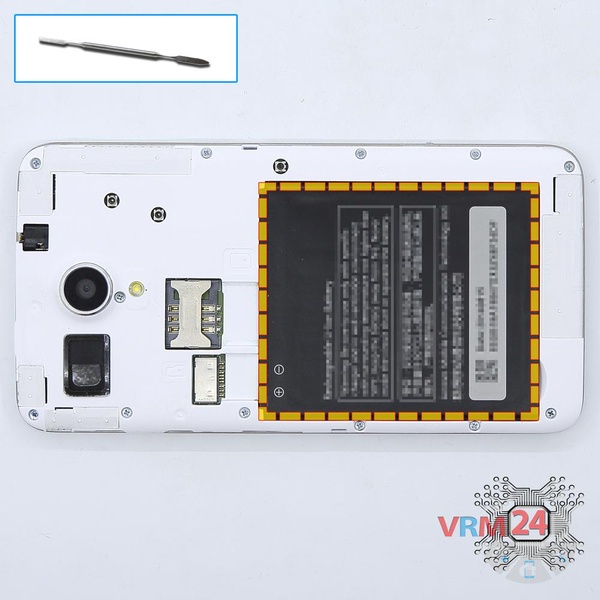

Lift and remove the battery.

How to disassemble Lenovo A606, Step 3/1 How to disassemble Lenovo A606, Step 3/2

Step 3.

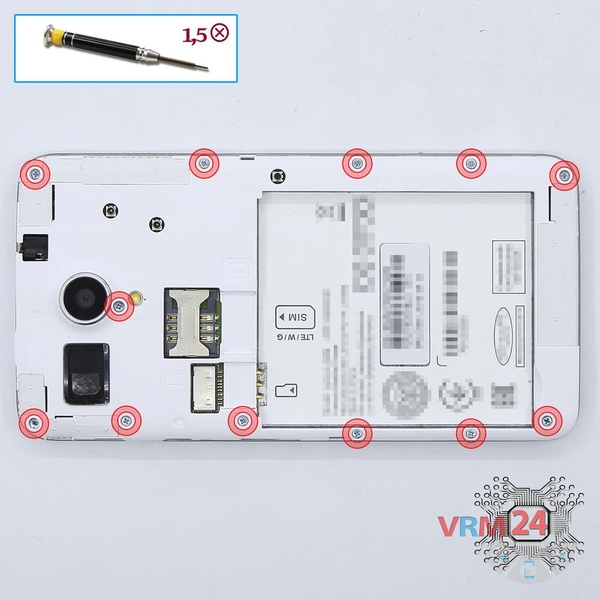

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Lenovo A606, Step 4/1 How to disassemble Lenovo A606, Step 4/2

Step 4.

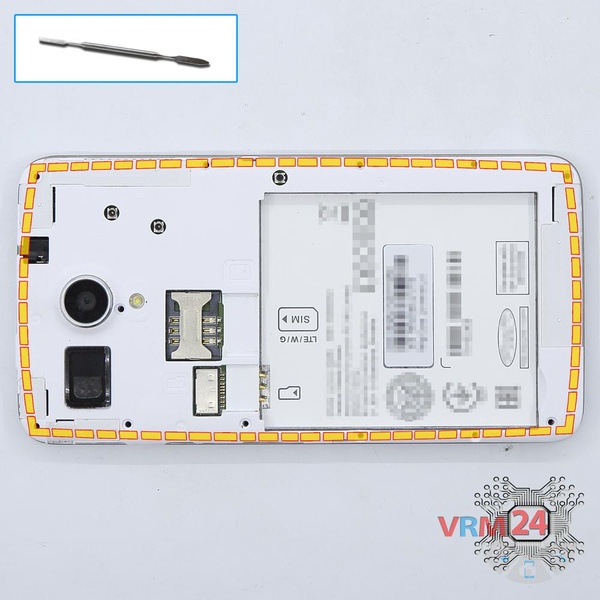

Pry and remove the middle frame.

How to disassemble Lenovo A606, Step 5/1 How to disassemble Lenovo A606, Step 5/2

Step 5.

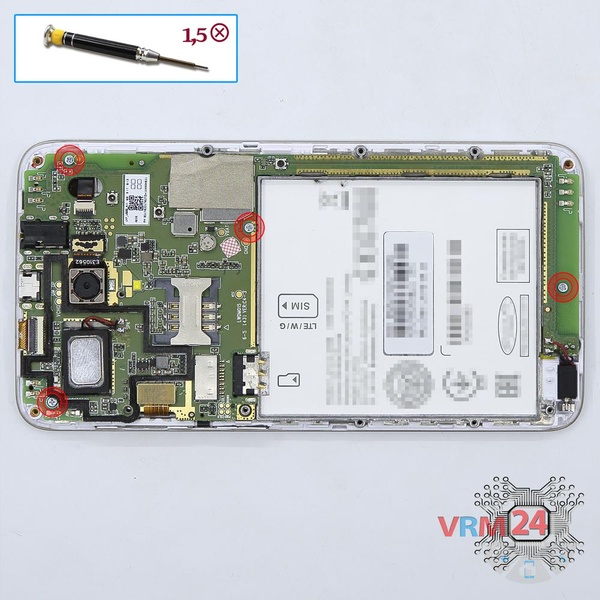

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble Lenovo A606, Step 6/1 How to disassemble Lenovo A606, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo A606, Step 7/1 How to disassemble Lenovo A606, Step 7/2 How to disassemble Lenovo A606, Step 7/3 How to disassemble Lenovo A606, Step 7/4 How to disassemble Lenovo A606, Step 7/5

Step 7.

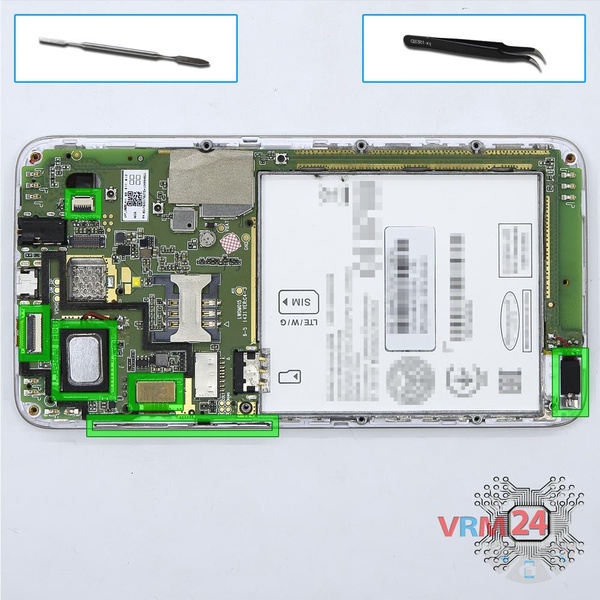

Disconnect connectors on the PCB and pry up vibration motor & earpiece (speaker).

How to disassemble Lenovo A606, Step 8/1 How to disassemble Lenovo A606, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Lenovo A606, Step 9/1 How to disassemble Lenovo A606, Step 9/2 How to disassemble Lenovo A606, Step 9/3

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo A606 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo A606
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
