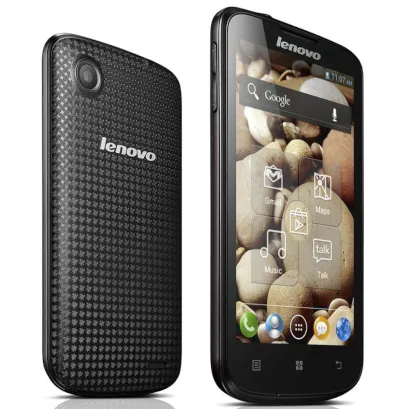

Lenovo A800 IdeaPhone
Lenovo A800 IdeaPhone
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo A800 IdeaPhone (Lenovo IdeaPhone A800) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo A800 IdeaPhone, Step 1/1 How to disassemble Lenovo A800 IdeaPhone, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo A800 IdeaPhone, Step 2/1 How to disassemble Lenovo A800 IdeaPhone, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo A800 IdeaPhone, Step 3/1 How to disassemble Lenovo A800 IdeaPhone, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Lenovo A800 IdeaPhone, Step 4/1 How to disassemble Lenovo A800 IdeaPhone, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo A800 IdeaPhone, Step 5/1 How to disassemble Lenovo A800 IdeaPhone, Step 5/2

Step 5.

Disconnect connectors and remove the coaxial cable.

How to disassemble Lenovo A800 IdeaPhone, Step 6/1 How to disassemble Lenovo A800 IdeaPhone, Step 6/2 How to disassemble Lenovo A800 IdeaPhone, Step 6/3 How to disassemble Lenovo A800 IdeaPhone, Step 6/4

Step 6.

Overturn the lower board, disconnect the connector from the inside and remove it.

How to disassemble Lenovo A800 IdeaPhone, Step 7/1 How to disassemble Lenovo A800 IdeaPhone, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Lenovo A800 IdeaPhone, Step 8/1 How to disassemble Lenovo A800 IdeaPhone, Step 8/2 How to disassemble Lenovo A800 IdeaPhone, Step 8/3 How to disassemble Lenovo A800 IdeaPhone, Step 8/4

Step 8.

Disconnect connectors and peel back the protective layer hiding the inter-board cable.

How to disassemble Lenovo A800 IdeaPhone, Step 9/1 How to disassemble Lenovo A800 IdeaPhone, Step 9/2

Step 9.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo A800 IdeaPhone, Step 10/1 How to disassemble Lenovo A800 IdeaPhone, Step 10/2 How to disassemble Lenovo A800 IdeaPhone, Step 10/3

Step 10.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Lenovo A800 IdeaPhone, Step 11/1 How to disassemble Lenovo A800 IdeaPhone, Step 11/2 How to disassemble Lenovo A800 IdeaPhone, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo A800 IdeaPhone in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo A800 IdeaPhone
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo A800 IdeaPhone — Lenovo IdeaPhone A800 released for markets in different countries.
