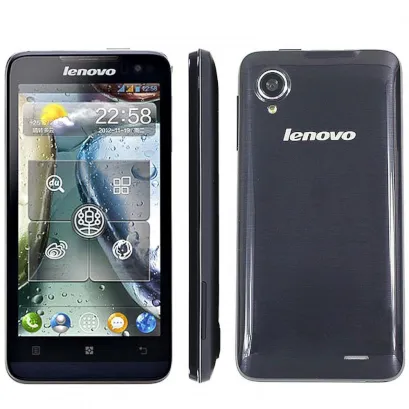

Disassembly/Repair of the mobile device Lenovo P770 with each step description and the required set of tools.

4092

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

Open the mid-frame

Step 4.

Open the mid-frame

Pry and remove the middle frame.

Remove the sub-board

Step 5.

Remove the sub-board

Disconnect connectors on the lower PCB and remove it.

Disconnect the connectors

Step 6.

Disconnect the connectors

Disconnect connectors on the PCB.

Turn over the PCB

Step 7.

Turn over the PCB

Overturn the board, disconnect the connector from the inside and remove it.

In the display frame remained

Step 8.

In the display frame remained

Parts in the frame of the display module.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 3 minutes in time. Our manual is suitable for all models Lenovo P770 or Леново П770 released for markets in different countries.
#instructions #Lenovo #Lenovo P770
Detailed disassembly instructions of Lenovo P770 in the video, made by our mobile repair & service center:
